1/4" CMOS Sensor MJPEG Series PT Indoor IP Camera with Built-in Microphone and Speaker (White)..!

|LIMITED TIME OFFER| TENVIS 1/4" CMOS Sensor MJPEG Series PT Indoor IP Camera with Built-in Microphone and Speaker (White)..!

Product information

Features

Equipped with high-sensitivity 1/4" CMOS sensor (300,000 pixels)
Optimized MJPEG video compression for transmission
Auto IR-LED illumination for night vision (up to 10 meters)
High image & video quality, two way audio monitoring
Wi-Fi compliant with wireless standards IEEE 802.11b/g

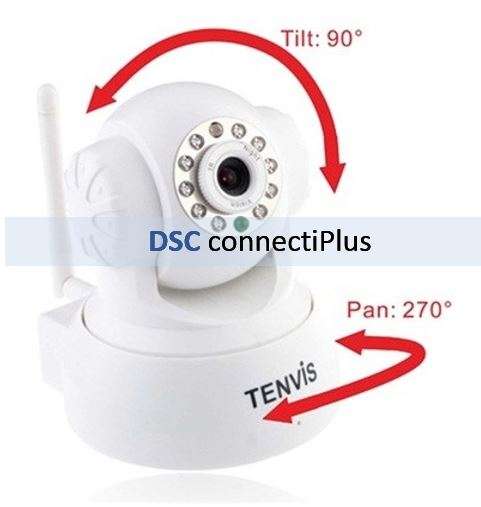

Supports remote Pan/Tilt control (pan: 270 deg & Tilt: 90 deg)
Support smart mobile surveillance & P/T Control via iPhone, Android, Windows Mobile, Java, etc.
Supports IE/Firefox/Google browser or any other standard browsers
Supports remote viewing & record from anywhere anytime
Support motion detection alert via email or upload image to a specified FTP server
Support image full screen and image snapshot
Equipped with built-in microphone and speaker
Equipped with multi-level users management and passwords definition
Multi-Protocol support and transportation (such as TCP/IP, SMTP, HTTP and etc.)
Support both WEP & WPA WPA2 encryption
Equipped with friendly graphical user interface, easy to setup
Note: Please click here to download the software

General Specs

Brand& Model: TENVIS JPT3815W
Type: MJPEG series PT indoor IP camera
Pan/Tilt Angle: Horizontal:270 deg & Vertical: 90 deg
Certifications: CE, FCC, RoHS
Operational Environment: Indoor
Operating Temp: -10~+55'C
Operating Humidity: 20~80% RH (non-condensing)
Storage Temp: -20~+60'C
Storage Humidity: 20~95% RH (non-condensing)

Image Sensor

Image Sensor: 1/4 Inch Color CMOS sensor
Display Resolution: 640 x 480 Pixels (300K Pixels)
Lens: f=3.6mm
Infrared LED: 10 pc F5mm
Minimum Illumination: 0.1 Lux

Lens
Lens Type: Glass Lens
Viewing Angle: 67 deg

Audio

Input: Built-in Microphone
Output: Built-in Speaker
Audio Compression: ADPCM

Video

Image Compression: MJPEG
Image format: PAL/NTSC
Image Frame Rate: 25fps (Max.)
Image Resolution: 640 x 480(VGA), 320 x 240(QVGA)
Flip Mirror Images: Vertical/ Horizontal
User Authentication: User/password
Users Group: Administrator/Operator/Visitor
Simultaneous Viewers: 10 viewers(320x240) & 4 viewers(640x480)
Mobile View: Supports smart phones with iPhone/Android/ Java and other smart mobile phones
Night visibility: F5mm, 10 IR LED lights, Wireless night visibility up to 15 meters
Light Frequency: 50Hz, 60Hz
Infrared mode: Automatic

Network

Ethernet Port: RJ-45 (10 BASE-T/ 100 BASE-TX)
Supported Protocols: TCP/ UDP/ IP/ ARP/ ICMP/ DHCP/ DNS/ HTTP/FTP/ SMTP/ NTP/ PPPOE/ UPNP/ DDNS
Wireless Standard: IEEE 802.11b/g
Wireless Security: WEP/ WPA/ WPA2 Encryption

Alarm

Motion Detection: Support motion detection and image snapshot
Alarm Events: Notification via email, FTP
Video recording to local storage

Power

Power Supply: DC 5V/2A (EU, US, AU adapter or other types optional)
Power Consumption: 4 Watts (Infrared off ) / 6 Watts (Infrared on)

PC Configuration

CPU: 2.0GHZ or above (suggested 3.0GHz)

Memory:

256MB or above (suggested 1.0GHz)
Graphics Card: 64M or above

Supported OS:

Microsoft Windows 2000/XP/Vista/7/8 MAC OS
Supported Browsers: IE 6.0 or above version, Firefox, Safari, Opera, Chrome or others
Support Operating Language: English, Deutsch, French, Italian, Japanese, Korean and Chinese

Product Details (without package and accessories)

Package Dimensions: 195(L) x115(W) x165mm(H)
Gross Weight: 510g (box included)
Net Weight: 370g (accessories included)

Package Details

Weight: 561.75 g
Size: 19*11*15.2 cm

Package Includes

IP Camera
Power Adapter
2DB Detachable Wi-Fi Antenna
User Manual
CD (driver and tool)
Mounting Bracket
Some Screws
