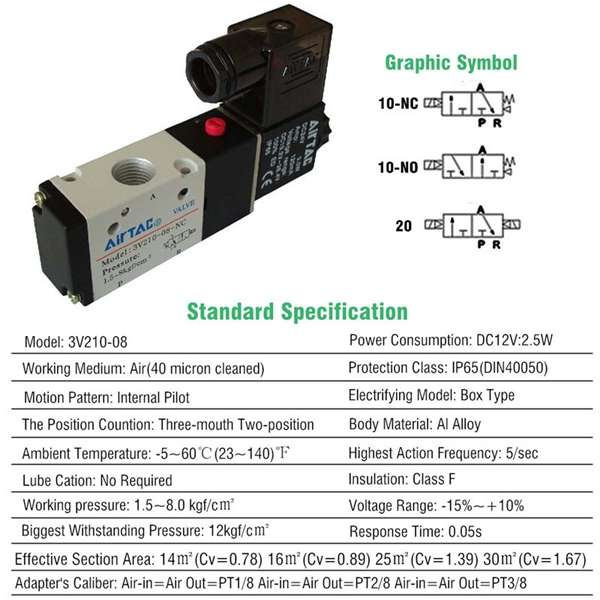

| Standard Specification | |||
| Model | 3V210-08 | Biggest Withstanding Pressure | 12kgf/c |
Working Medium | Air(40 micron cleaned) | Power Consumption | DC12V:2.5W |
| Motion Pattern | Internal Pilot | Protection Class | IP65(DIN40050) |
| Adapter's Caliber | Air-in=Air Out=PT1/8 Air-in=Air Out=PT2/8 Air-in=Air Out=PT3/8 | Electrifying Model | Box Type |
| The Position Countion | Three-mouth Two-position | Body Material | Al Alloy |
| Ambient Temperature | -5~60(23~140) | Highest Action Frequency | 5/sec |
| Effective Section Area | 14(Cv=0.78) 16(Cv=0.89) 25(Cv=1.39) 30(Cv=1.67) | Insulation | Class F |
| Lube Cation | No Required | Voltage Range | -15%~+10% |
| Working Pressure | 1.5~8.0 kgf/c | Response Time | 0.05s |
,
,
,
,
,
,
