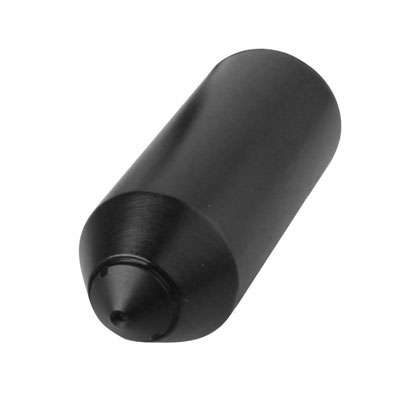

1/4 SHARP Color 420TVL Mini CCD Camera, Mini Pin Hole Lens Camera, Size: 63 x 23 x 23mm

3.7mm Mini pin hole lens camera

1) Adopt Sharp low illumination CCD, max horizontal resolution reach 420TVL

2) Mini pin hole lens camera

3) Industrial design and production, precise circuit & structure

4) Unique design, with bracket for easy installation

** Specification:

1) CCD Type: 1/4 Sharp CCD

2) Pixels: PAL: 500H x 582V NTSC: 510H x 492V

3) Scanning System: PAL/NTSC

4) Horizontal Resolution: 420TVL

5) Minimum Illumination: 1.0LUX/F1.2

6) S/N Ratio: ￢ﾉﾥ48dB

7) Video Output: 1.0Vp-p/75ￎﾩ

8) AGC: Auto

9) Backlight Compensation: Auto

10) Exposure Mode: EE

11) Electronic Shutter: PAL: 1/50-1/100000sec, NTSC: 1/60-1/100000sec

12) Gamma Correction: 0.45

13) Sync. System: Internal Synchronization

14) Lens: 3.7mm Standard

15) Audio: Optional

16) Power Supply: DC12V ￂﾱ 5%

17) Operation Temperature: -10￢ﾄﾃ--50￢ﾄﾃ

18) Size: 63 x 23 x 23mm
