1.44-inch Serial 128*128 SPI Color TFT LCD Module

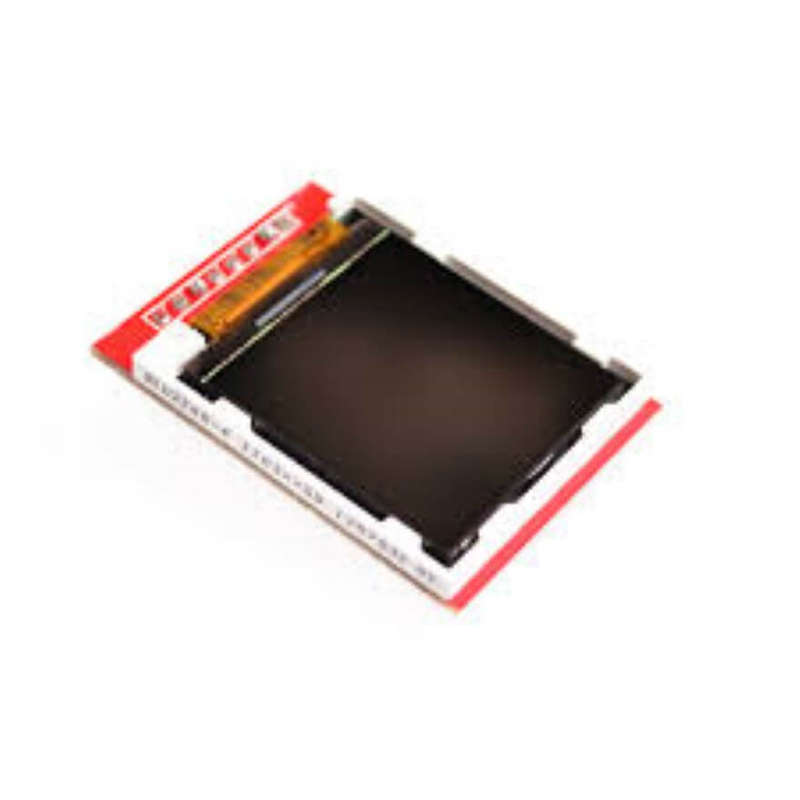

Welcome to the world of tiny and colorful LCD displays brought to you by our 1.44-inch Serial 128*128 SPI Color TFT LCD Module! This display is the perfect fit for your mini-project or hobbyist needs with its 1.44-inch size, SPI interface, glowing 128 * 128 resolution, and square 1:1 visual area all in a single module.

TFT displays are LCD modules with thin-film transistor technology. The TFT display technology offers full-color RGB showcasing a range of colors and hues. These liquid crystal display panels are available with touchscreen capabilities, wide viewing angles, and bright luminance for high contrast.

The LCD module uses a 4-wire SPI communication method with a driver IC of ST7735S and a resolution of 128x128. The module contains an LCD display and backlight control circuitry.

Pin Out

• VCC - 5v
• GND - GND
• CS - D8
• RST - D9
• A0 - D10
• SDA -D11
• SCK - D13
• LED - 3.3v

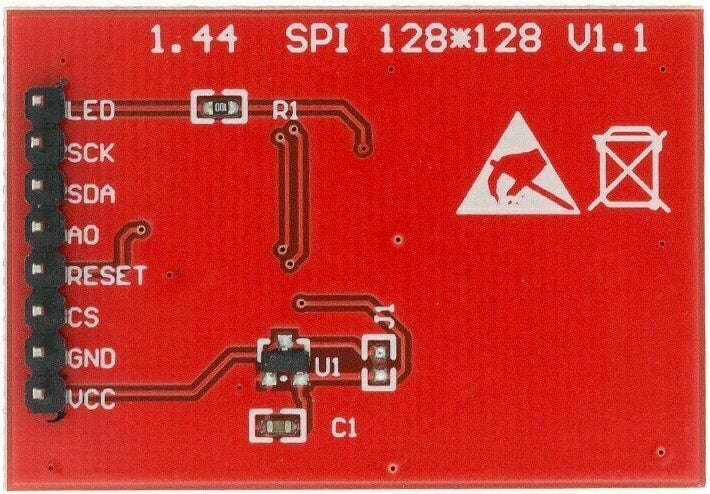

The image and text above give you the pinout of the 1.44-inch Serial 128*128 SPI Color TFT LCD Module. The above text also tells you which pin is which and also where to connect those pins, see the test code in the documentation.

1.44 inch Serial 128*128 SPI Color TFT LCD Module Specification

• Display Color: RGB 65K color
• Screen Size: 1.44(inch)
• Type: TFT
• Driver IC: ST7735S
• Resolution: 128*128 (Pixel)
• Module Interface: 4-wire SPI interface
• Active Area: 26.2x27.2 (mm)
• Module PCB Size: 29.70x43.36 (mm)
• The angle of view: >60°
• Operating Temperature: -10~60
• Storage Temperature: -20~70
• Operating Voltage: 3.3V / 5V
• Power Consumption: About 90mA
• Product Weight: About 25(g)

Documentation

• Library
• User Manual
• Test code: Running on Arduino Nano
