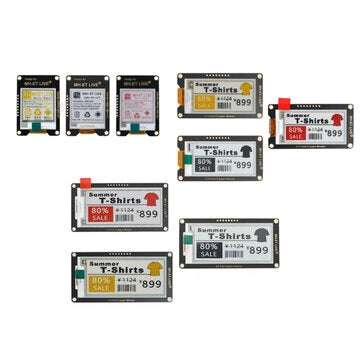

1.54 Inch /2.13 Inch/ 2.9 Inch Flexible Ink Screen LC... (COLOR.: BLACKYELLOWWHITE | INCH: 2.13INCH)

1.54 Inch /2.13 Inch/ 2.9 Inch Flexible Ink Screen LC... (COLOR.: BLACKYELLOWWHITE | INCH: 2.13INCH)

20 available / new
R697.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
szulou3586
93.05 % Positive ratings
Buyer protection
How you're covered
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643353651

SELECTED OPTION:
COLOR.: BLACKYELLOWWHITE
INCH: 2.13INCH



 Principle of Electronic Paper:
The electronic ink screen is an electronic paper device that adopts the MED image display technology of the microencapsulated electrophoretic display. The original method is to create tiny spheres in which charged pigments are suspended in transparent oil and will move according to the electrical charge. The electronic paper screen displays patterns by reflecting ambient light, so it has no background light requirements. In the sun, the electronic paper screen still has a wide viewing angle of 180 degrees and high visibility. This is ideal for e-reading. After the screen is powered off, the last screen can still be retained for a long time, which can be as long as half a year. Therefore, it has also been widely used in the field of electronic labels for display applications such as shelf labels and industrial instruments.
Introduction:
-The screen size of this module is 1.54 inches, the resolution is 200x200, it has an internal controller, uses SPI interface to communicate, and supports partial refresh. -Low power consumption, wide viewing angle, and clear display even after power off. It is used for display applications such as shelf labels and industrial instruments.
Features:
1. There is no need for backlight, the last screen display content can be kept for a long time after power off, the time can be up to half a year 2. Very low power consumption, basically only consumes power when refreshing 3. SPI control interface, which can be connected to main control boards such as Raspberry/Arduino/STM3 4. Provide complete supporting information (Arduino sample program, showing global display and partial display)
Module Parameters:
Working voltage: 3.3V/5V (adapt to Arduino access, no additional level conversion) Communication interface: 3-wire SPI, 4-wire SPI optional Dimensions: 55mm 39.4mm Display size: 27.6mm 27.6mm Point Distance: 0.138 0.138 Resolution rate: 200 200 Display color: black, white Gray level: 2 Partial refresh: 0.3s Global refresh: 2s Refresh power consumption: 26.4mW(typ.) Standby power consumption: <0.017mW Viewing angle:>170
Package Inlcuded:
1 x Eletronic ink screen module 1 x Yellow looper 8pin 1 x Yellow straight needle 8pin 1 x Plastic protective box 1x Arylic protective shell plate 4 x Support pillar 4 x Bracket screw 4 x Bracket gasket
