1.5kVA Pure sine wave inverter 24V (UPS Backup system) w/ PWM controller 20A

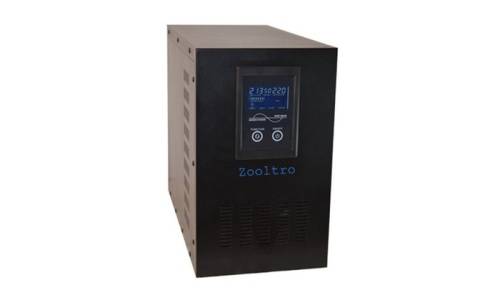

Zooltro Pure Sine Wave Inverter w/ Built in controller and UPS function


 3 in 1: inverter+ups+solar charger

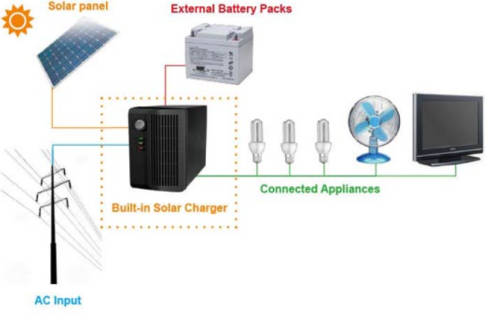

Working principle: The solar or mains power comes to the UPS. The AC is converted to DC and this DC is constantly charging the battery. The output of the battery is fed to the Sine wave inverter and it converts DC to AC and this feeds the equipment. Since power out is always drawn from the battery, there is no time lag when mains switches off or power is lost; it just stops the battery from being charged and the UPS continues to supply power till the battery runs out.

Solar charging priority than city power mains charging



Solar power chargers battery as primary power source, if solar power is not available then inverter will automatically be switched to charge battery from city power electricity as a secondary source



Solar energy & utility power complementary power generation system



Solar energy intelligent control charge function



Convert function , wide DC input range to pure sine wave AC



Automatical Voltage Regulation, accurate pure sine wave AC voltage output



The complementary function of Solar and utility ensure the uninterrupted output


 Features:

Type: Line Interactive DC to AC inverter

Compatible battery: 2 x 12v Lead acid, Gel or deep cycle batteries (Lead acid is recommended)

KVA ratings: 1500VA

Peak power: 2000W/2KW

Rated power: 1000W/1KW

DC voltage: 24VDC

Inverter structure: Power frequency structure

Inverter output: 220VAC/50Hz

Mains input charging current: 24v, 20A Charging controller

Output waveform: Pure sine wave

Display: LCD

Range of application: mobile phone charging, laptops, lamps and lanterns, camera, TV, shaver, CD, fan, video game, security, professional tools, instruments of all electrical power.

Package includes:

1 x Zooltro all-in-one Inverter,ups,solar charger
