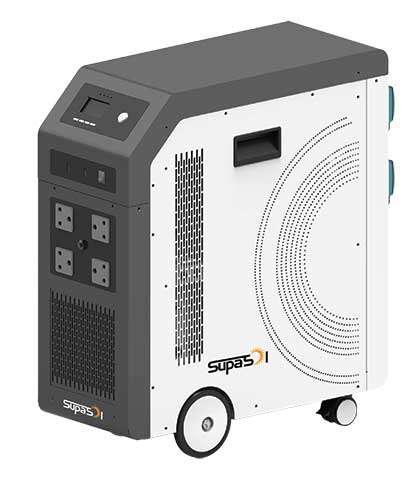

1.5KW INV/1.28KWH BAT PURE SINE WAVE BACK-UP TROLLEY ALL-IN

Mobile, all-in-one energy story system. Enjoy life without loadshedding. Rated inverter power: 1500VA/1500W.

FEATURES

INTEGRATED: Build-in offgrid solar inverter & battery modules
SMART: Mobile with wheels, stay powered anywhere
SIMPLE: Pre-programmed system, plug & play
QUICKER CHARGE: Combined AC and solar chargers, max 1C charging current, fully recharge the unit within 1-2 hours
RELIABLE: Enhanced surge/lightning protection, considered ACD breakers and DC fuse protections
INTELLIGENT: Equips with RS232 & USB communication ports, available for remote monitoring
POWERFUL: 1.5kW and 3kW optional output power, 1.28/2, 56.5 12kWh seletable energy, flexible enough to power most of the home or office appliaces to cover loadshedding.

SPECIFICATIONS
Communication Ports: USB/RS232(Baud Rate2400)
Protection Type: AC input/output breakers; batter switch; earth leakage circuit breaker

INPUT
Voltage: 230Vac?5%
Voltage range: 154~264Vac
Frequency range: 40~70Hz
AC input connection: IEC C20
PV input connection: PP75

OUTPUT
AC Voltage Regulation (Batt. mode): 230VAC ? 5%
Surge power: 1500VA
Efficiency (Peak): 93.00%
Transfer time: 20 ms (typical)
Waveform: Pure Sine Wave
Output type: 4 AC outlets, 2 USB PD ports (QC3.0)

SOLAR CHARGER & AC CHARGER
Solar charger type: PWM
Maximum PV array power: 960W
Maximum OV Array Open Circuit Voltage: 30~85Vdc
Maximum Solar Charge Current: 40A
AC Charge Current: 30A
Maximum Charge Current: 50A

BATTERY
Capacity: 1280Wh (25.6V 50Ah)
Nominal voltage: 25.6Vdc
Charging voltage: 27.6V
Max continous discharging current: 50A

ENVIRONMENT
Humidity: 20%~95% (no condensing)
Storage temperature: -15~60?C
Operation temperature: 0-40?C

PHYSICAL
Dimensions (net), D*W*H (mm): 280x280x520
Dimensions (package), D*W*H (mm):330x330x600
Net weight (kg): 20
Gross weight (kg): 25
