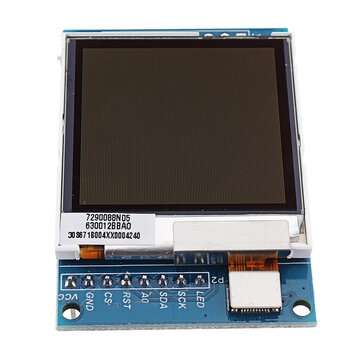

1.6 Inch Transflective TFT LCD Display Module 130X130 Sunlight Visible SPI Serial Port 3.3V 5V

20 available / new
R397.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643353692

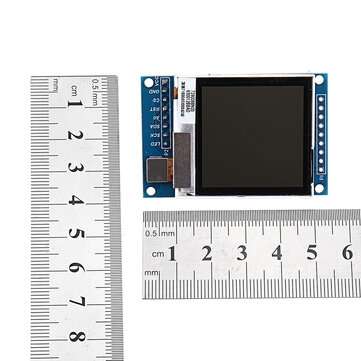

Features: a 1.6-inch color screen, support 65K color display, display rich colors a Semi-transparent LCD, superior performance, clearly visible under strong light a SPI serial bus, only a few IO can light up the display a Onboard 3. 3V/5V power conversion chip, compatible with 3. 3V and 5V voltage levels a Operating temperature range is industrial grade (-20-70 ᆪ C) a Military-grade process standards, long-term stable work a Provide underlying driver technical support a Support backlight control Specificatoins: Driver: SSD1283A Resolution: 130*130 Working voltage: 3.3V/5V Viewing angle: >60ᆪ Display size: 28.86*28.86mm Module size: 35.4*53.82*1.6mm Module interface: 4-wire SPI Power consumption: about 100mA when fully lit, about 10mA when fully off Pin:

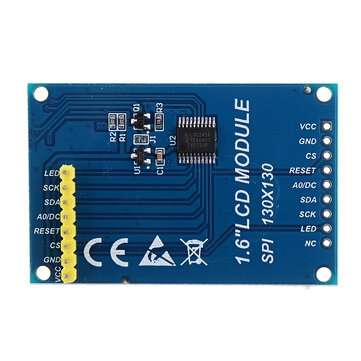

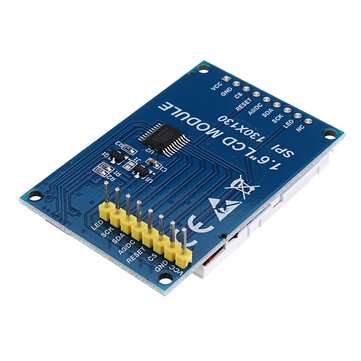

Number Pin Meaning
1 GND LCDpowersupply(ground)
2 VCC LCDpowersupply(positive)3.3V/5V
3 CS LCDchipselectsignal
4 RESET LCDresetsignal
5 A0/DC LCDregister/dataselectionsignal
6 SDA SPIbusdatasignal
7 SCK SPIbusclocksignal
8 LED Backlightcontrolsignal(highlevellighting,ifyoudonotneedcontrol,pleaseconnect3.3V)
Package Included: 1 x 1.6 Inch Transflective TFT LCD Display Module 130X130
