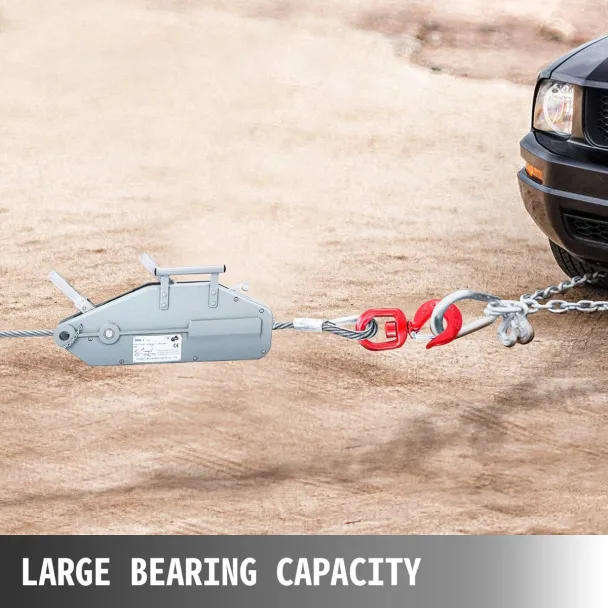

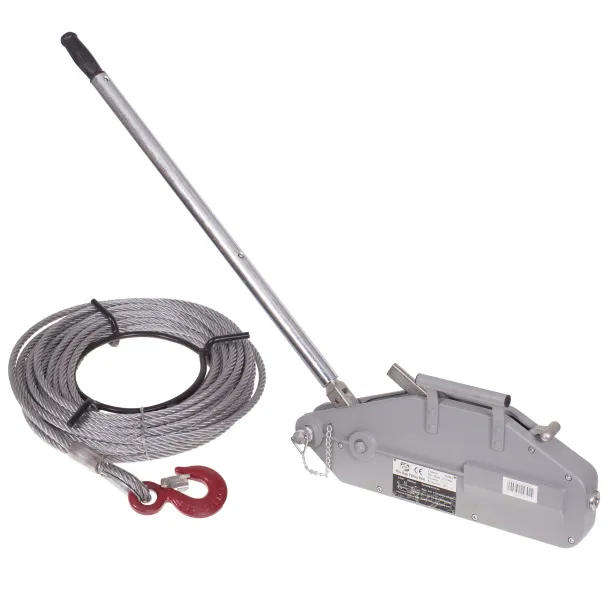

1.6 Ton Multi-Purpose Wire Rope Pulling Hoist Manual Cast Aluminum Body
This manual wire rope hoist offers a versatile and portable solution for lifting, pulling, or precisely positioning heavy loads. With a 1.6-ton capacity and a steel wire rope system, it allows for accurate millimeter-level control. Its lightweight cast aluminum body ensures strength without bulk, making it ideal for both field and workshop applications. Unlike fixed systems, theres no cable length limit, enabling flexibility based on your specific needs. The clamp securing method ensures reliable anchoring under load.
Features:
1.6-ton rated lifting and pulling capacity
Compatible with any length of wire rope
Rugged cast aluminum body for portability and durability
Manual operationno power required
Precision load control with minimal travel increments
Strong steel cable with high safety factor
Compact design for easy storage and transport
Specifications:
Rated Capacity: 1 600 kg
Maximum Traveling Load: 2 400 kg
Rated Forward Handpower: 400 Nm
Rated Forward Travel: 55 mm
Rope Diameter: 11 mm
Cable Material: Steel
Body Material: Cast Aluminum
Handle Length: 1.2 m
Securing Method: Clamp
Wire Rope Safety Factor: 5
Static Load Safety Factor: 4
Possible Applications:
Field recovery and towing operations
Load positioning on job sites
Farm and equipment lifting or tensioning
Construction and maintenance work
Secure anchoring and rigging tasks in remote locations
