Description:

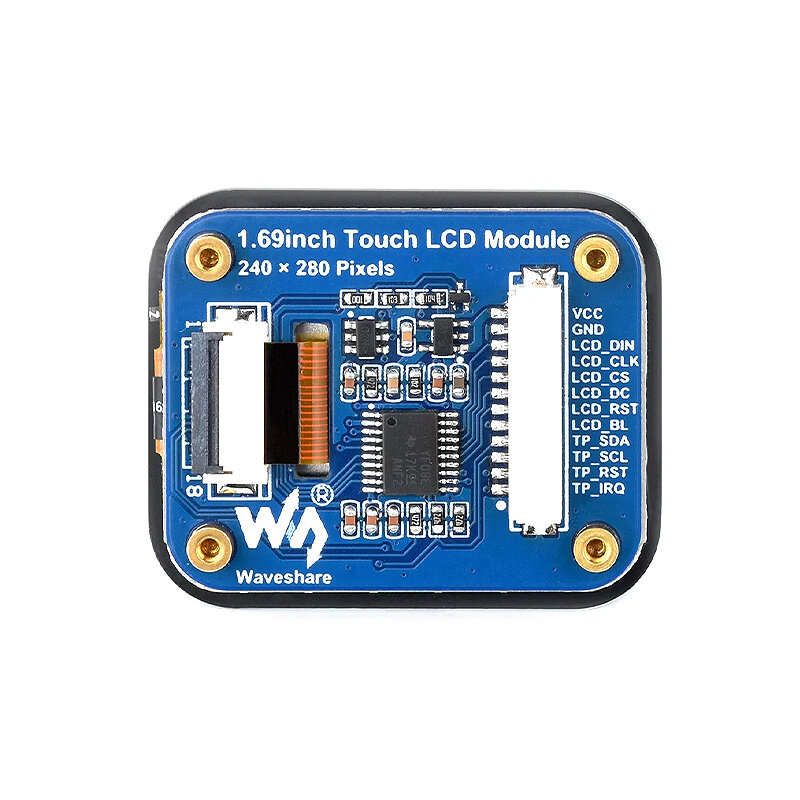

1.69-inch touch LCD with expansion board built-in ST7789V2 driver chip and CST816T capacitive touch chip provides routine data such asArduino, Raspberry Pie, ESP32S3, Pico and STM32.
Specifications:
Working voltage: 3.3V/5V
Resolution: 240 × 280 pixels
Display chip: ST7789V2
Touch chip: CST816T
Display interface: 4-wire SPI
Touch interface: I2C
Display panel: IPS
Touch type: capacitive induction type
Display size: 27.972× 32.634 mm
Pixel size: 0.11655× 0.11655 mm
Product size: 33.13× 41.13mm
Features:
1. 240 × 280 resolution, 262K color, can clearly display color pictures.
2. The touch screen has high transmittance, fast responsing and long service life.
3. Built-in ST7789V2 driver chip and CST816T capacitive touch c
