Product details

Condition
New
Location
South Africa
Product code
PRT-177TFT
Bob Shop ID
522205754

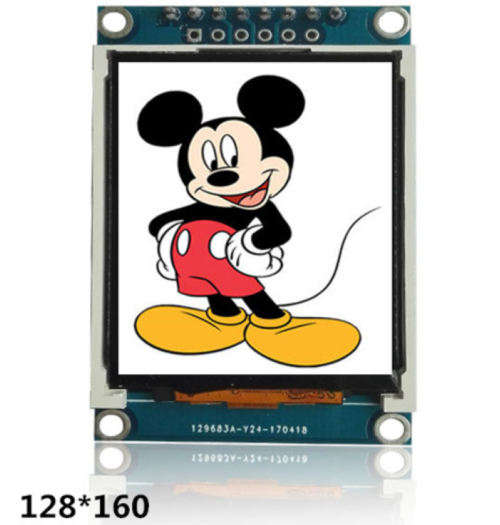

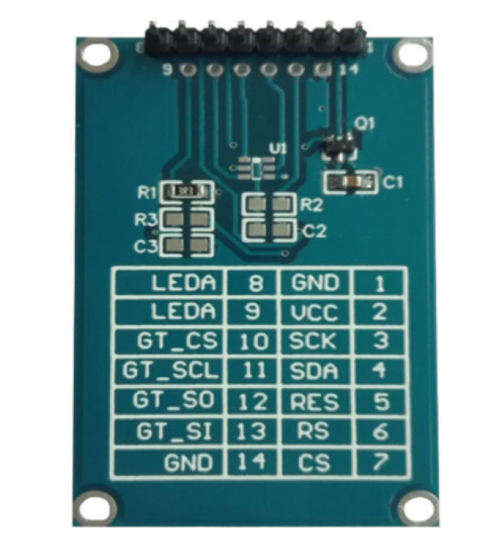

The Arduino TFT screen is a backlit LCD screen with headers. You can draw text, images, and shapes to the screen with the TFT library. There is an onboard micro-SD card slot on the back of the screen that can, among other things, store bitmap images for the screen to display. The screen's headers are designed to fit into the socket on the front of the Arduino Esplora, but it is compatible with any AVRbased Arduino (Uno, Leonardo, etc) or with the Arduino Due. The screen is 1.77" diagonal, with 160 x 128 pixel resolution. The TFT library interfaces with the screen's controller through SPI when using the TFT library.

Features:

  • Working voltage: 2.7-3.3V
  • 128x160 resolution, 18-bit (262, 144) color
  • 1.8" diagonal LCD TFT display
  • 4 or 5 wire SPI digital interface
  • Package List:

  • 1 x 1.77 " 128x160 TFT LCD SPI
