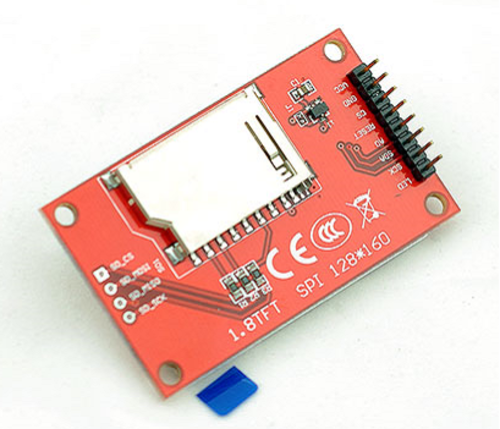

1.8" 128X160 SPI TFT LCD Display Module +SD socket for Arduino, PIC or 8051

1.8" 128X160 SPI TFT LCD DISPLAY MODULE

+SD SOCKET FOR ARDUINO, PIC OR 8051

Product information
1.8-inch screen with SPI serial module requires only five microcontroller pins to operate. It has an on board SD card socket for storing images etc.

Specifications
Max Input Voltage: 5V
Max Logic Voltage: 3.3V or use level shifter IC
Display Mode: 1.8" TFT SPI Interface, Transmissive, Normally white
Display Colour: 262,000 colours
Backlight Type: 4 x LED
Resolution: 128(W) x 160(H) Dots
Board Size: 50mm x 34mm
View Area: 28.03(W) x 35.04(H) mm
Dot Size: 0.06(W) x 0.18(H) mm RGB
Dot Pitch: 0.18(W) x 0.18(H) mm
SPI Bus interface
Display IC Driver: ST7735S
Arduino library available for download: http://arduino.cc/en/Reference/TFTLibrary

Package includes
1 x 1.8" 128 X 160 SPI TFT LCD Display Module
