1.8 Inch SPI TFT LCD Module Display with PCB Adapter ST7735B IC for Arduino ***LOCAL STOCK***
New
R150.00
Closed
19 Feb 17 11:01
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 5 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details

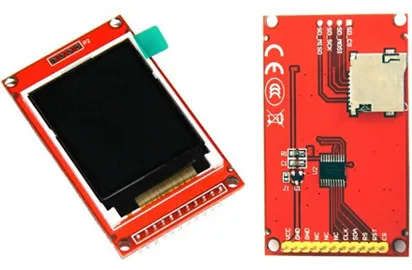

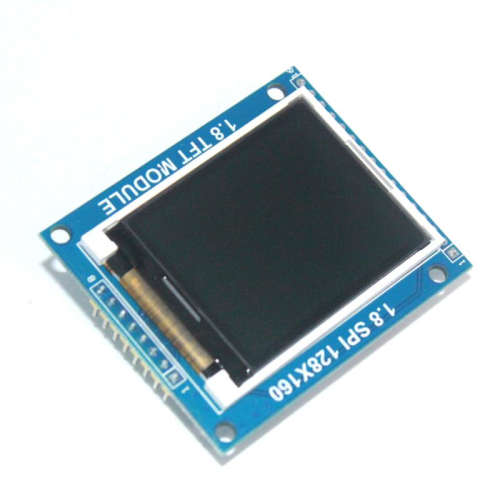

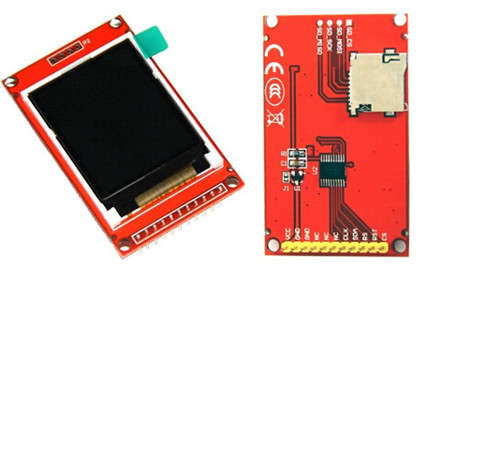

1.8 Inch SPI TFT LCD Module Display with PCB Adapter ST7735B IC with SD Socket for Arduino
Size: 1.8 inch
Dot Matrix: 128 x 160
Module Size: 54mm(length) x 35mm(width)
Display Area Size: 37mm(length) x 32mm(width)
Input Voltage: 5V/3.3V
Pin Definition: 1-RST 2-CE 3-D/C 4-DIN 5-CLK 6-UCC 7-BL 8-GND

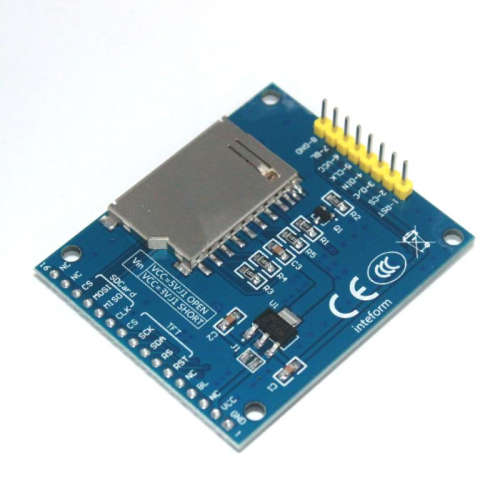

It has PCB backplane with power IC, SD card socket
It needs 4 IO port at least to drive.
The module port is compatible with 1602 LCD and Nokia 5110/3310 LCD Display port.
Dot Matrix: 128 x 160
Module Size: 54mm(length) x 35mm(width)
Display Area Size: 37mm(length) x 32mm(width)
Input Voltage: 5V/3.3V
Pin Definition: 1-RST 2-CE 3-D/C 4-DIN 5-CLK 6-UCC 7-BL 8-GND
It has PCB backplane with power IC, SD card socket
It needs 4 IO port at least to drive.
The module port is compatible with 1602 LCD and Nokia 5110/3310 LCD Display port.
It has PCB backplane with power IC, SD card socket
Important:
When using with Arduino, every IO port should be connected with resistance range 500 ~ 2KΩ.
Normally, the chip is Samsung ST7735.
This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
