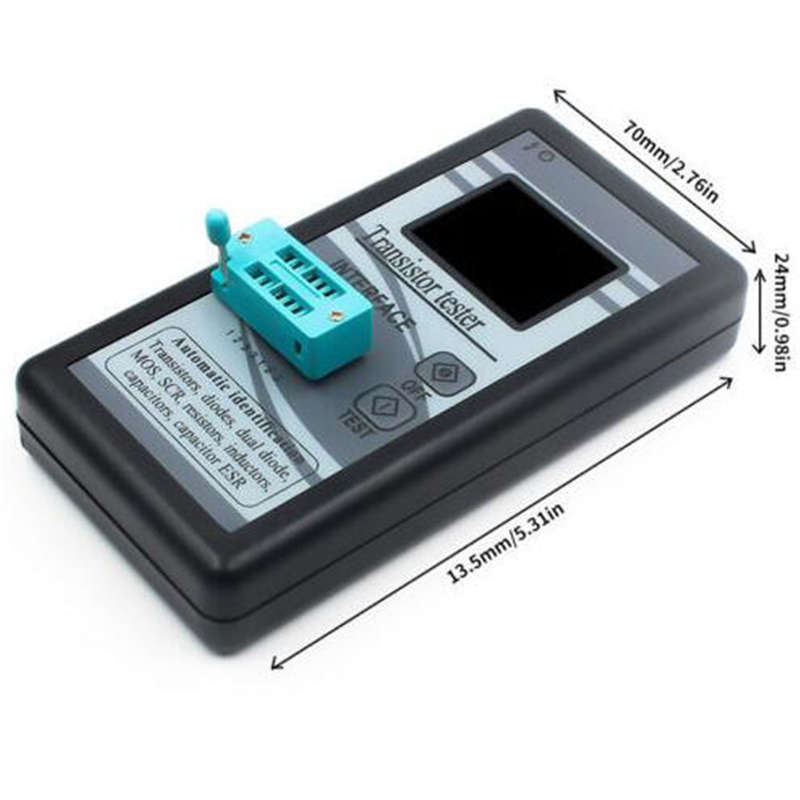

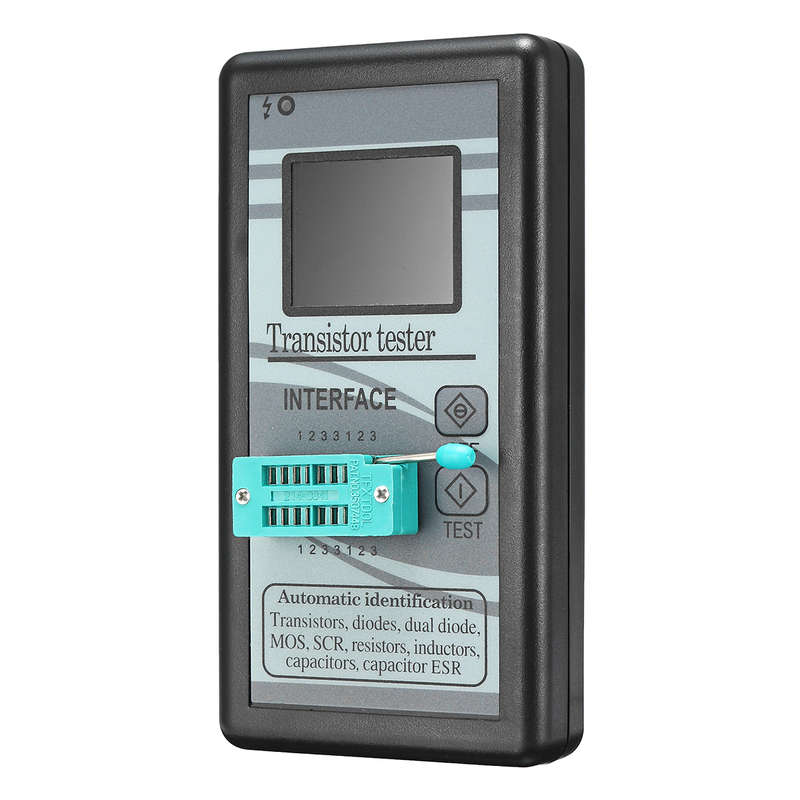

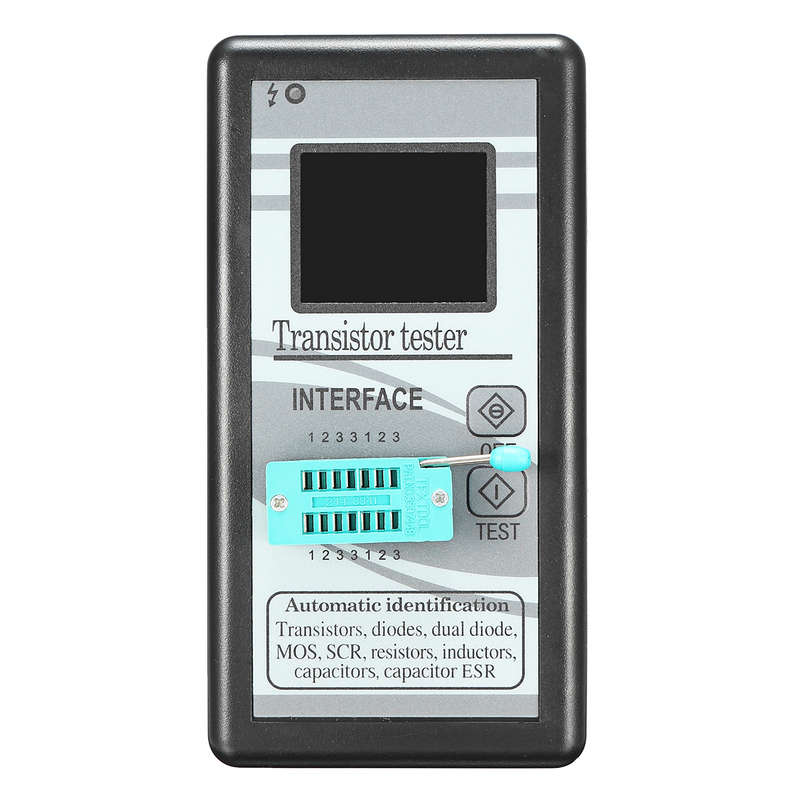

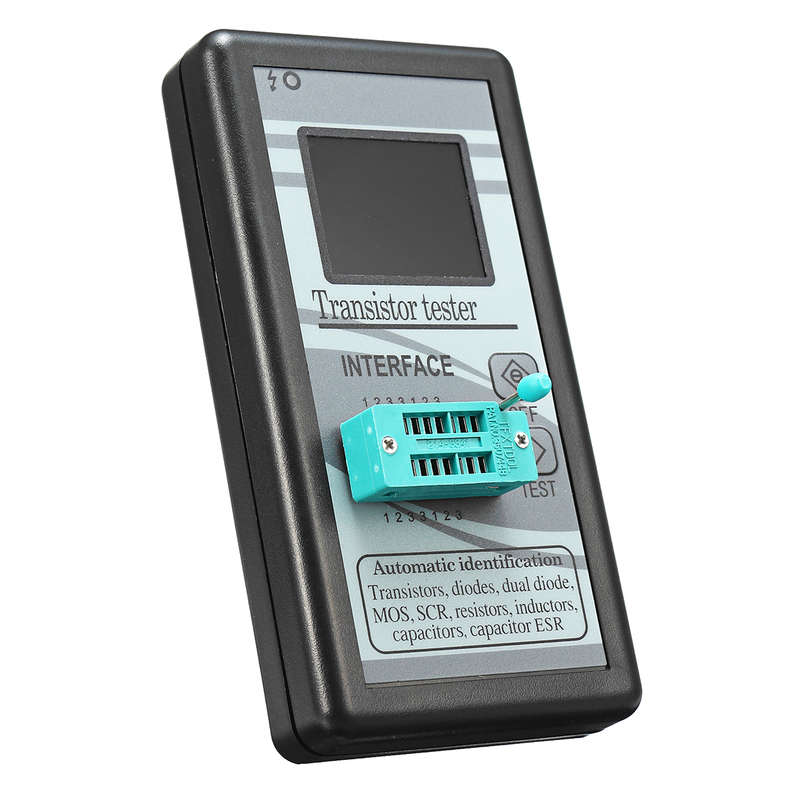

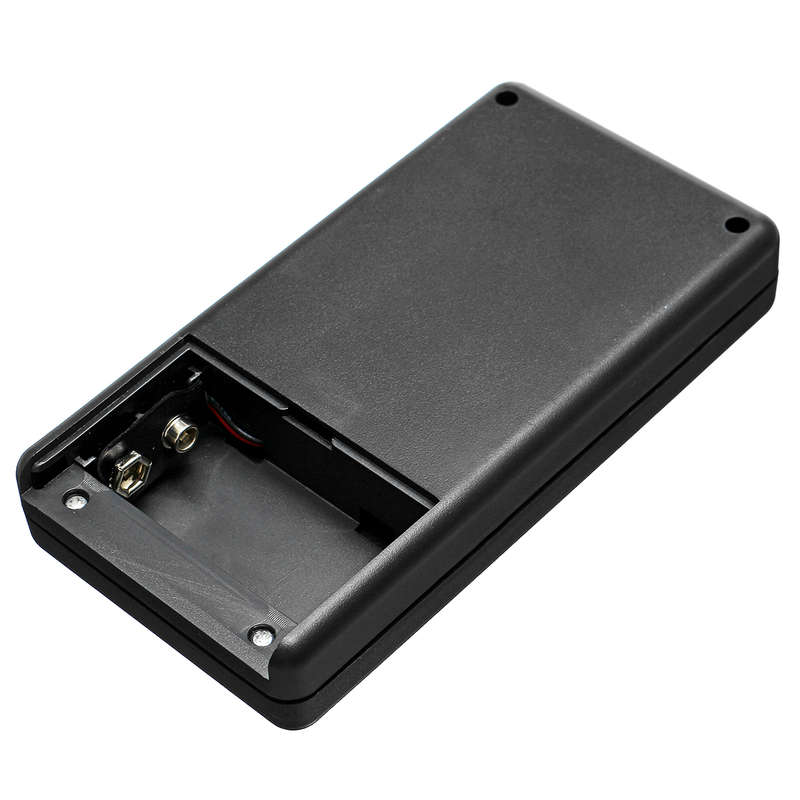

Specification: Color: Black+Grey Material: PCB + Plastic Display: 1.8 TFT Color Display Shutdown Current: 20nA Power supply: DC9V 6F22 Battery(not included ) Size: (L)X(W)X(H) 135X70X24mm /5.31''X2.76''X0.94(appr.)

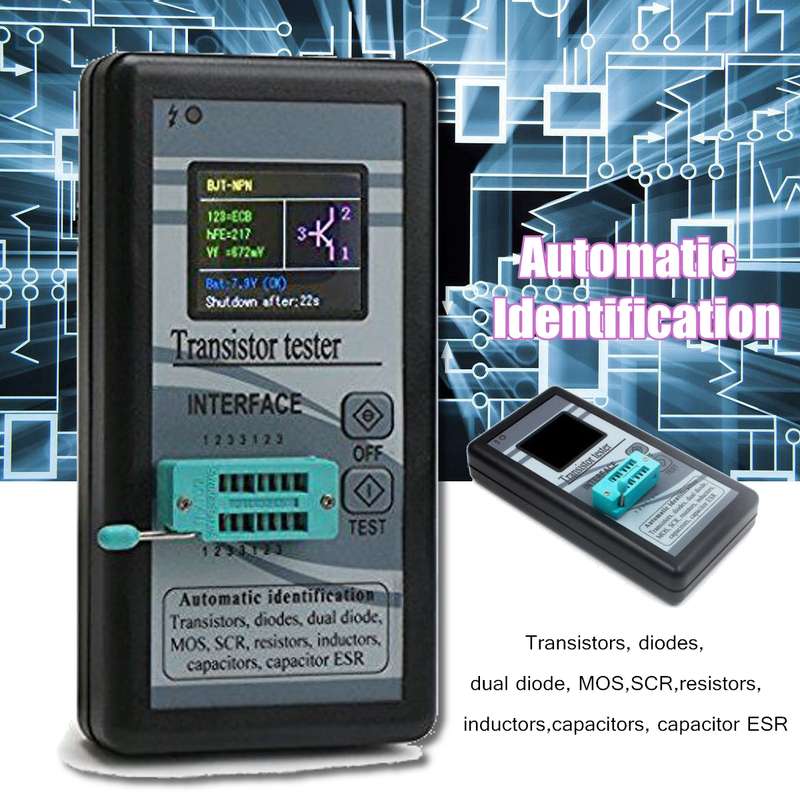

Automatic Identification: Transistors, diodes, dual diode, MOS,SCR,resistors, inductors,capacitors, capacitor ESR
Testing Range: Range of Transistor: Less than 2 (included 2) transistor which is made up of PN junction. Do not have any other resistance components in the interior. Range of Resistance Testing: 0.5-50M Range of Inductance Testing: 0.01mH-20H Range of Capacitance Testing: 25pf - 100000uF
Features: 1. One-button measurement operation, the power is automatically turned off by the delay. Shutdown current is only 20nA, support battery operation 2. Automatic detection of PNP and NPN bipolar transistors, N-channel and P-channel MOSFET, JFET field effect tubes, diodes, double diodes, SCR, resistance, capacitance, inductance. Automatic detection pin definition 3.Measure the current amplification factor (B) of the bipolar transistor and the conduction voltage (Uf) of the emitter junction. Darlington transistors can be identified by high threshold voltages and high current amplification factors. 4.The protection diode inside the bipolar transistor and MOSFET can be detected and displayed on the screen. 5.Measure the threshold voltage and gate capacitance of the MOSFET. 6.Supports the measurement of two resistances, and the potentiometer can also be measured. If the potentiometer is adjusted to one end of it, the tester cannot distinguish between the middle and end pins. 7.The resolution of the resistance measurement is 0.1 ohm, and the highest measured value is 50M ohm. 8.Capacitance measurement range from 25pf to 100mF (100,000UF). The resolution is up to 1 pF, and the inductance measurement range is 0.01 MH-20H. Otherwise, it will be displayed as a resistor. If the DC resistance of the inductor is higher than 2100 ohms, it will also be displayed as a resistor. In the capacitance test, the VLoss displayed on the screen is the meaning of loss and attenuation. The larger the value, the closer the capacitor is to scrapping! ESR is the impedance. The smaller the value, the better the capacitor performance! 9.It can detect the equivalent series resistance (ESR) of capacitors above 2UF with a resolution of 0.01 ohms. This feature is very important for detecting capacitive performance. 10.Two diodes can be displayed with the correct direction sign and the forward voltage drop is displayed. 11.The LED is detected as a diode, and the forward voltage drop is higher than the normal value. The dual LEDs are detected as dual diodes. The LED will flash while detecting. 12.The time for each test is about two seconds. Only large capacitance and inductance measurements take a long time.

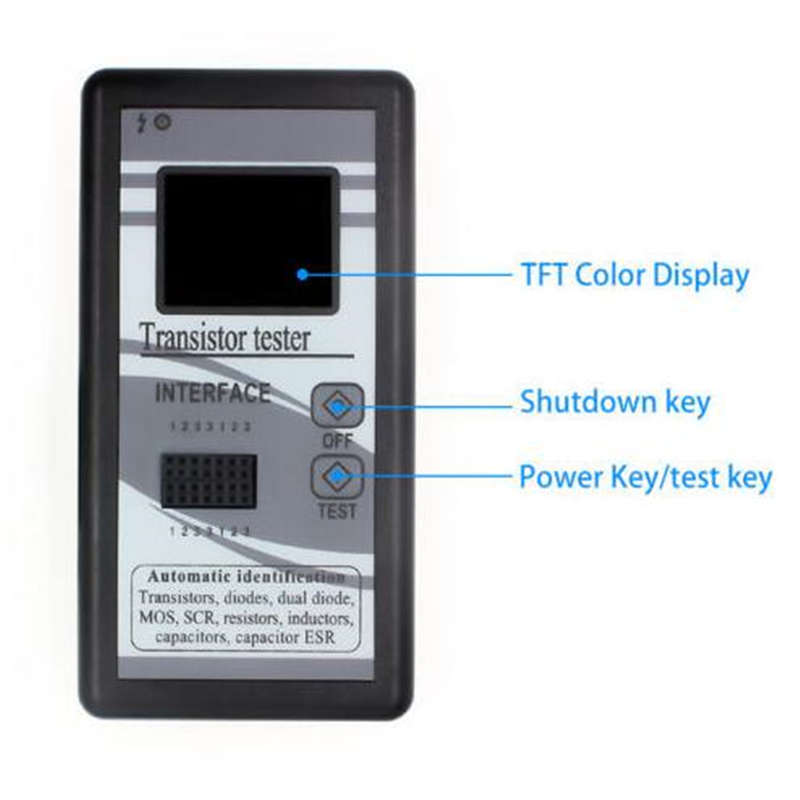

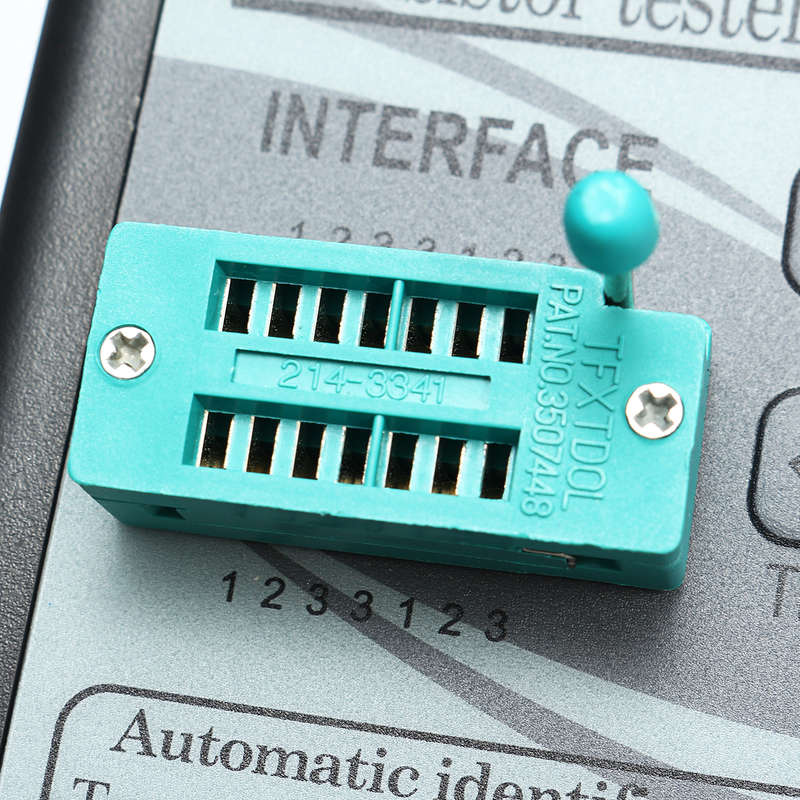

Simple operation instructions: 1, 2, 3 pin free connection, automatic identification type, automatic detection of pinqueue, graphic display, automatic measurement parameters. (For example, if you pick up a triode, you don't have to consider the BCE order of 1, 2, and 3 pins, just plug it in. Then press the test button. It automatically recognizes whether it is a triode, a FET, or a thyristor or resistor. After being identified as a triode, the test is NPN or PNP, and then the BCE order is judged. It is displayed graphically, then tells you the magnification, turn-on voltage, etc. Basically you only need to plug in and press the button. The rest will tell you what it is.)

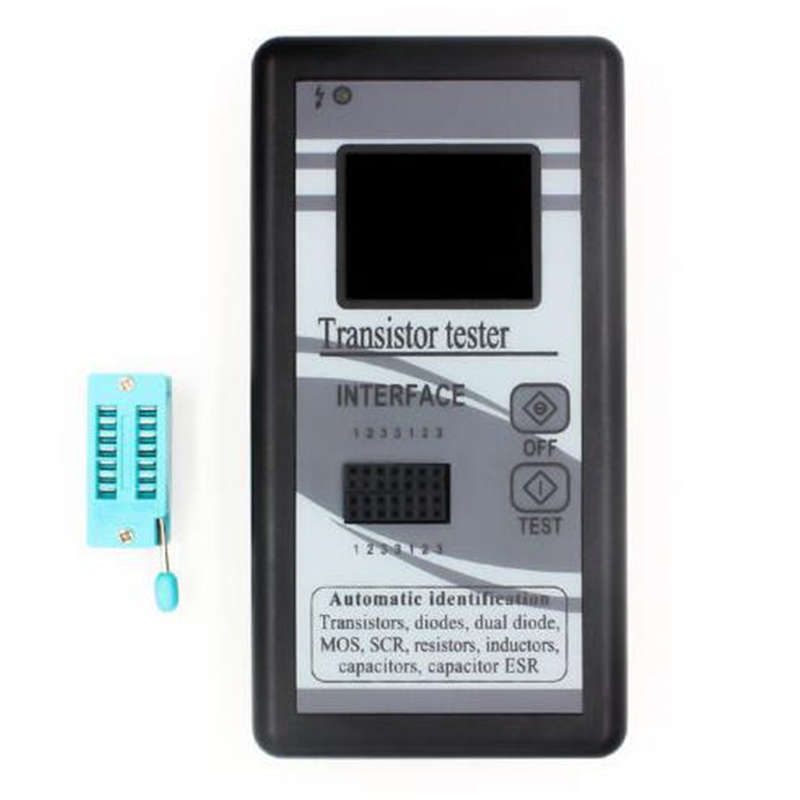

Package Included: 1 Pcs Transistor Tester(battery not included)
