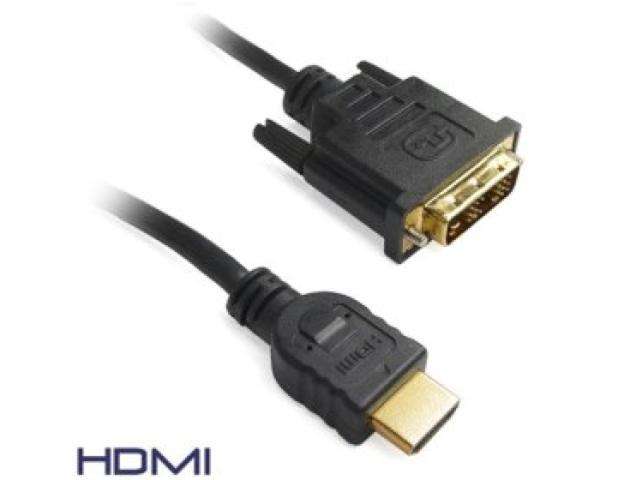

1.8 Meter - HDMI to DVI Cable - HDMI 1.3 28AWG - (Gold Plated)
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
This cable is mostly used for connecting your Xbox 360, Playstation 3, DSTV HDPVR, Blu-ray player to a display with only DVI-D input and no HDMI inputs. Audio will travel via coaxial / optical since HDMI to DVI only carries video.
Plug cable from Output HDMI Female on HDMI Device to Input Female DVI-D on display.
The cable is bi-directional and can also by used to connect your PC Graphics Card (DVI Output) to the HDMI Port on your HDMI display. The graphics card output needs to support DVI-D digital signals. Most Nvidia and ATI graphics cards support DVI-I which can autoswitch between DVI-D (Digital) and DVI-A (Analog). To explain the differences in the variations of DVI connectors see the diagram below
Specifications & Features
Connector Type: HDMI male to DVI-D male
Connector Finish: Gold
Gauge: 28AWG
# of conductors: 19
Conductor Plating: None
Shielding level: Triple
Shielding type: EMI
Ferrite Cores: Yes
Supported Resolutions: 480i to 1080p
Bandwidth: Single Link
HDMI Certified: Yes
HDCP Compliant: Yes
CEC Compliant: Yes
ROHS Compliant Yes
UL Certified Yes
1.3 Device Compatible: Yes
UL Specs
CL2 (In-Wall): No
VW-1: Yes
Voltage Rating: 30V
Temperature Rating: 80° C
