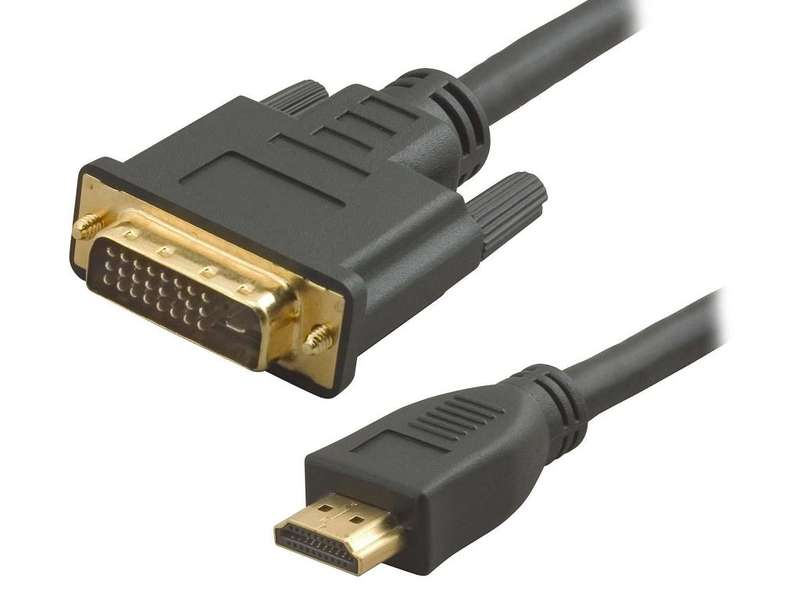

1.8 Meter HDMI to DVI Dual Link Cable - Gold Plated Connectors
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
DVI-D Dual link cables are much higher rated on bandwidth (up to 2560 x 1600 resolution / 1600p) compared to single link which is only rated up to 1920x1200 resolutions.
This cable is mostly used for connecting your Xbox 360, Playstation 3, DSTV HDPVR, Blu-ray player to a display with only DVI-D input and no HDMI inputs. Audio will travel via coaxial / optical since HDMI to DVI only carries video. Smaller computer LCD Screens are much cheaper compared to LCD TV's and offers much higher resolutions than normal televisions.
Plug cable from Output HDMI Female on HDMI Device to Input Female DVI-D on display.
The cable is bi-directional and can also by used to connect your PC Graphics Card (DVI Output) to the HDMI Port on your HDMI display. The graphics card output needs to support DVI-D digital signals. Most Nvidia and ATI graphics cards support DVI-I which can autoswitch between DVI-D (Digital) and DVI-A (Analog). To explain the differences in the variations of DVI connectors see the diagram below
Specifications & Features
Connector Type: HDMI male to DVI-D male
Connector Finish: Gold
Gauge: 28AWG
# of conductors: 24 + 1 solidary flat blade
Conductor Plating: None
Shielding level: Triple
Shielding type: EMI
Ferrite Cores: Yes
Supported Resolutions: 480i to > 1080p (up to 2560 x 1600)
Bandwidth: Dual Link
HDMI Certified: Yes
HDCP Compliant: Yes
CEC Compliant: Yes
ROHS Compliant Yes
UL Certified Yes
1.3 Device Compatible: Yes
UL Specs
CL2 (In-Wall): No
VW-1: Yes
Voltage Rating: 30V
Temperature Rating: 80° C
To extend a HDMI to DVI cable use the HDMI Coupler / Socket - Female to Female (Gold Plated Connectors) and another HDMI Cable of the required length.
When using a HDCP Player / Source Device with these cables please ensure that your display is HDCP certified otherwise the source device will have issues regarding the HDCP Protocol. This cable transmits video only from HDMI to DVI and the audio needs to be on a separate cable such as optical, coaxial RCA, analog etc.
