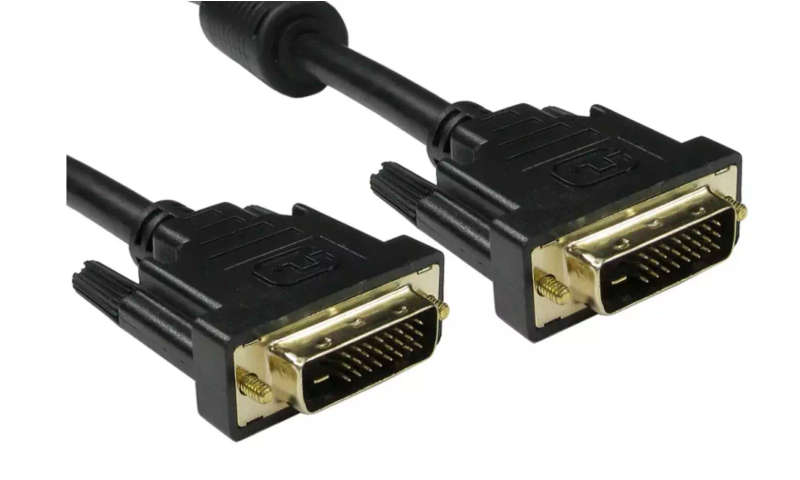

1.8 Meter Male DVI-D to DVI-D Male Dual Link Cable (Digital Cable only DVI-D)

1.8 Meter Male DVI-D to DVI-D Male Dual Link Cable (Digital Cable only DVI-D)

Digital Visual Interface (DVI) is the standard interface for a high-performance connection between PCs and flat panel displays, digital CRT displays, projectors, and HDTV. The DVI-D Digital Cable delivers the high-performance, high-bandwidth interface needed for video displays of today while leaving headroom for the products of tomorrow.

These precision-engineered cables are fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). The DVI-D dual link configuration provides enough bandwidth for resolutions up to 2560x1600 and allows high speed digital transmission up to 7.4 Gbps.

DVI does not carry audio and if this cable is used in conjunction with a HDMI cable audio will not be transmitted.

Differences between DVI-D, DVI-A and DVI-I, Dual Link and Single Link DVI Video

?v=G7vZ7cfE-LM

Specs & Features

• Connector Type: DVI-D male to DVI-D male
• Signal Type: Digital
• Length: 1.8 Meter
• Gauge: 28AWG
• Pin Configuration: 24 + 1
• Conductor Plating: None
• Shielding level: Triple
• Shielding type: EMI
• 1080p support: Yes
• Bandwidth: Dual Link
• Maximum Resolution: 2560x1600 --> If Supported on display via DVI-I or DVI-D otherwise max 1920 x 1080 FullHD 60Hz
• Min Clock Freq: 21.76 Mhz
• Max Clock Freq: 165 Mhz x 2
• Max Thoroughput: 7.4 Gbps
• Pixels per cycle 2:
• Bits per Pixel 24:
• DDWG Compliant: Yes
• HDCP Compliant: Yes
• ROHS Compliant Yes
• UL Certified Yes
• CL2 (In-Wall): No
• VW-1: Yes
• Voltage Rating: 30V
• Temperature Rating: 80° C
