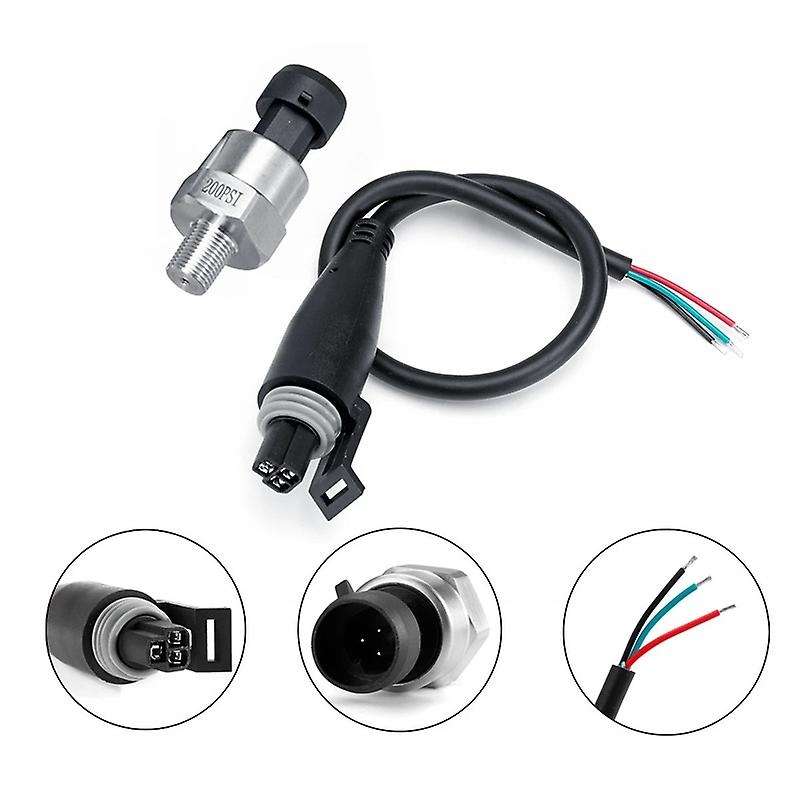

1/8Inch-27 NPT, 200PSI Fuel Air Pressure Sensor Water Pressure Sensor with Wire Fuel Pressure Sensor

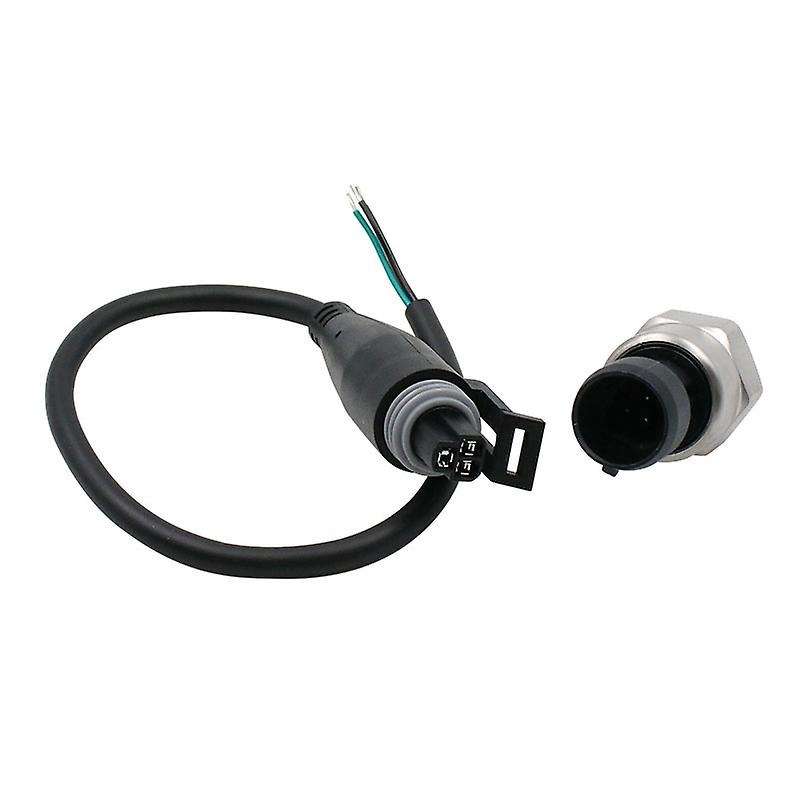

Fitment: for oil, fuel, crude oil, gas, air pressure(Cannot use measuring water pressure); Can be used in oil tank, gas tank, crude oil tank etc.It's an advance pressure transducer than traditional mechanical pressure transducer.Small output error, including nonlinear, hysteresis error and repeatability, full temperature range.It has complete surge voltage protection function.Light weight and small size, convenient to install and operate.Input: 0-200 psiOutput: 200 psi outputs 4.5VWorking Temperature: -40~+125Accuracy: +\/- 1%Thread: 1\/8inch-27 NPTOverload Capacity: 2 times of rated pressurePressure Medium: Oil, gas and water which is compatible with 316L stainless steelLoad Resistance: less than or equal to (supply power-6.5V\/0.02A) ohmLong-term Stability: +\/- 0.2%\/yearTemperature Effect on Zero: Typical: +\/- 0.02%\/; Maximum: +\/- 0.05%\/Temperature Effect on Sensitivity: Typical: +\/- 0.02%\/; Maximum: +\/- 0.05%\/Shock Resistance: 100gResponse Time: less than or equal to 1msInsulation Resistance: more than 100m ohm 500VDCExplosion-proof Class: ExiaTTCT6Electromagnetism Compatibility: EN50081-1; EN50082-2; IEC6 1000-4-3Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.Wiring: Red for IN+; Black for GND; Green for OUT.Colour: Silver + BlackMaterial: stainless steel + plasticPackage Contents:1 x Pressure Transducer (With Cable)Only the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
