1 Brass Dn32 3-way L-type Three-wire Two-control Ac220v Ball Valve

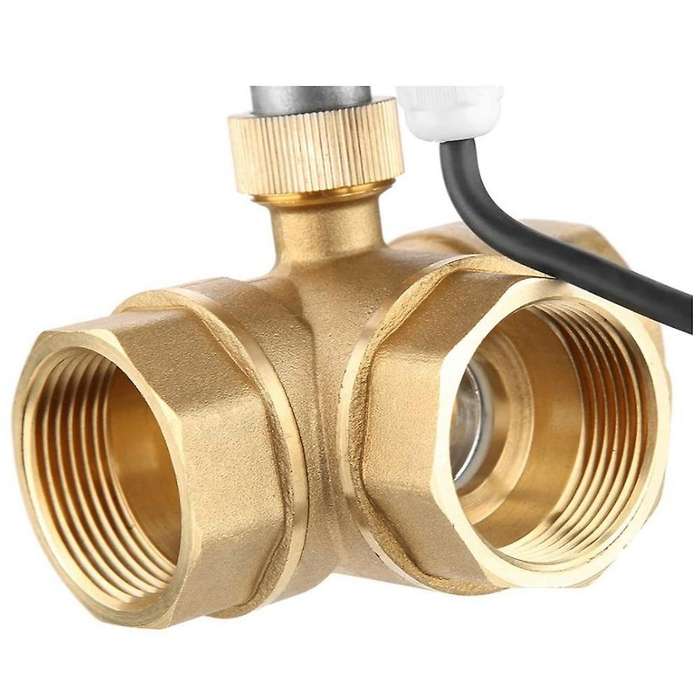

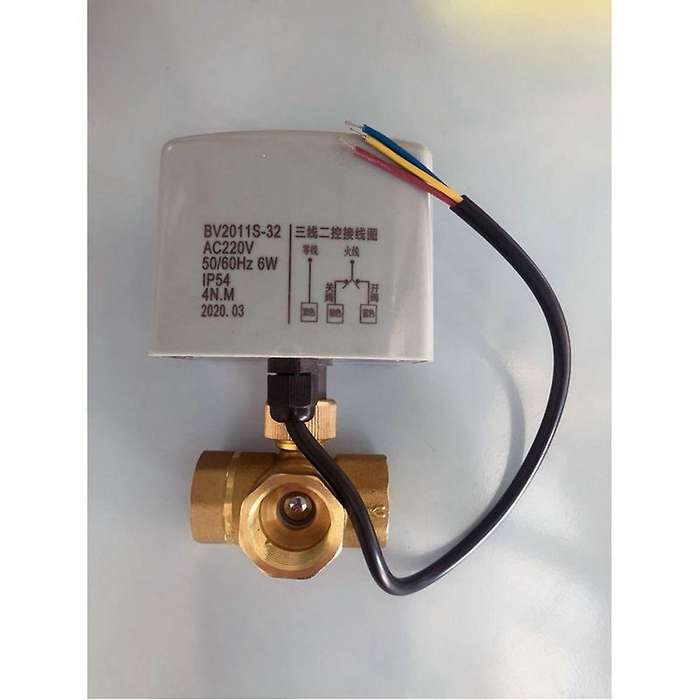

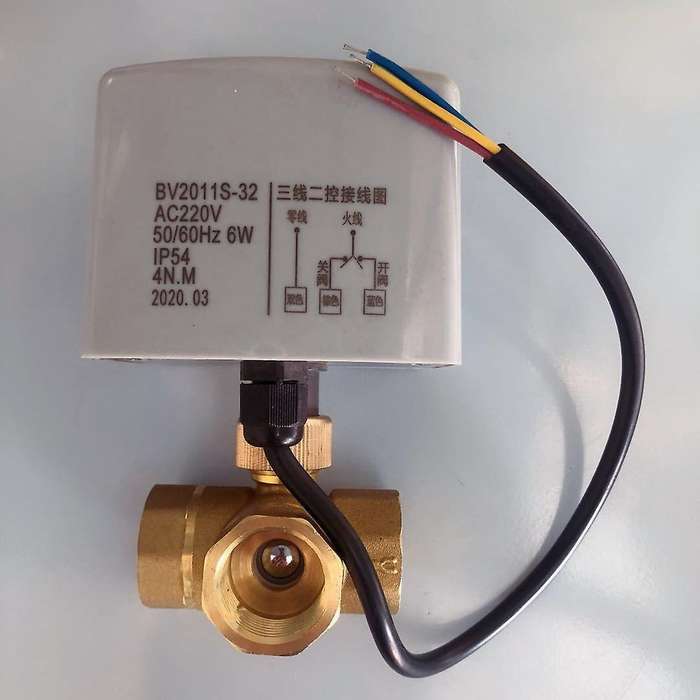

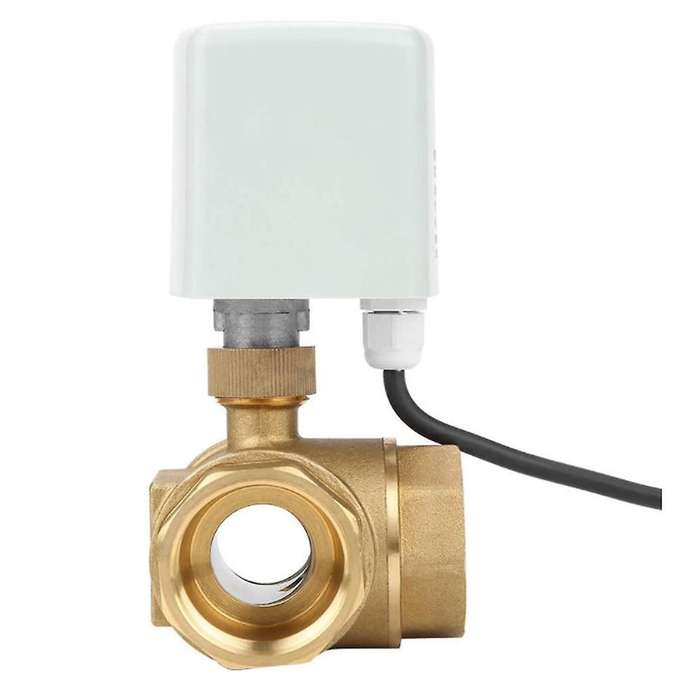

1. [Material] The ball valve is made of high quality material, it has high hardness, corrosion resistant and long lifespan.2. Model: DN32 3 wire 2 control. Drive motor: Hysteresis synchronous motor. Drive working voltage: AC220V. Power consumption: 6W3. Valve body pressure: 1.6 Mpa. Allowable pressure: less than equal 0.13Mpa4. Applicable medium: cold water, hot water. Applicable medium temperature: 2-95. Applicable ambient temperature: 0-605. Valve connection mode: G1-1/4. Weight: about 1411g / 49.8oz. Height: approx. 15.5 cm/6.1 inches. Diameter: about 4cm / 1.6inchInstall:1. Cut off the power before installation, and it must be installed by professionals.2. The flow direction must be consistent with the direction arrow on the valve body.3. The valve should be located above the fan drain pan to ensure that water droplets fall into the drain pan.4. Valves and actuators must be installed within 60 degrees in the vertical direction, and at least 30mm of disassembly space should be left above.5. Two or more valves cannot be connected in parallel. If you really need to connect in parallel, use a relay for isolation.6. If the driver has been installed on the valve, do not apply force to the driver during installation and debugging, otherwise the driver will be damaged.7. The driver must be grounded reliably, and the wire diameter shall not be less than 1.5mm2. Other wires shall meet the relevant standards of electricians.8. After the installation is completed, after confirming that it is correct, turn off the water and start debugging. Observe the operation of at least three complete drives until all components are normal and correct.color:WhiteMaterial:ABS+BrassPackage Contents:1 x Electric ball valveOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
