Product details

Condition
New
Location
South Africa
Product code
Id-2382
Bob Shop ID
591094206

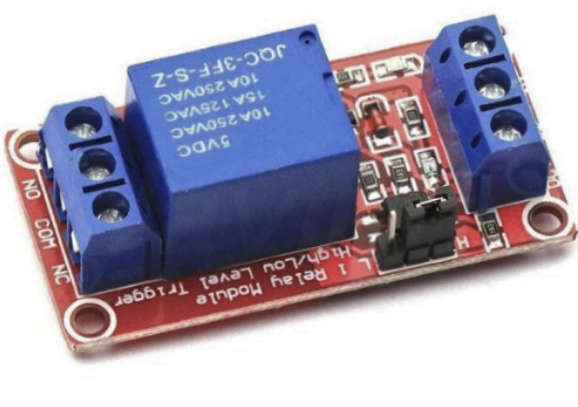

  • Module Description:
    1 - Module uses genuine quality relay, normally open interfaces Maximum load: AC 250V / 10A, DC 30V / 10A.
    2 - SMD optocoupler isolation, driving ability, stable performance; trigger current 5mA.
    3 - Module voltage 5V
    4 - Module can be set to trigger high or low with jumpers.
    5 - Fault-tolerant design, even if the control line is broken, the relay will not operate.
    6 - Power indicator (green), relay state indicator (red)
    7 - user-friendly interface design, all interfaces are available through the wiring terminal direct connection leads, very convenient
    8 - Module size: 50mm x 26mm x 18.5mm (L x W x H)
    9 - Four mounting bolts holes, hole 3.1mm, 44.5mm x 20.5mm pitch
  • Two, module interface:
    1 - DC +: positive power supply (
    2 - DC-: negative one
    3 - IN: can be high- or low-level control relay
  • Relay outputs:
    1 - NO: normally open relay interfaces, relay before hanging, pull back with COM
    2 - COM: Relay Common Interface
    3 - NC: normally closed relay interfaces, relay before with COM, pull vacant post
  • High and low end of the trigger selection:
    1 - Jumper LOW LOW trigger short-circuited.
    2 - When the trigger is high with high short jumper.
