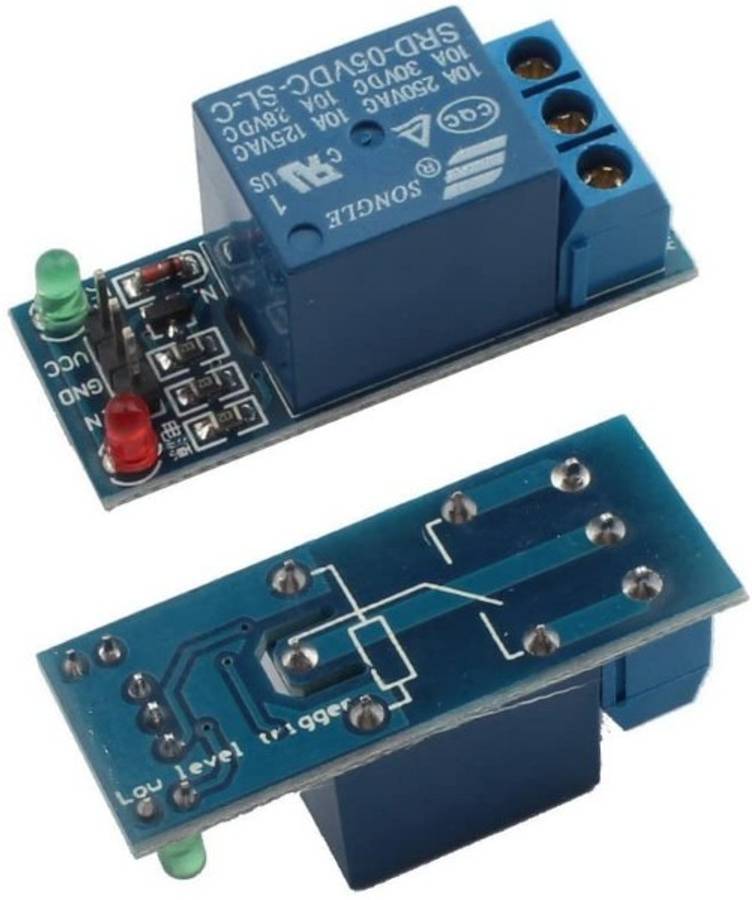

1 Channel Relay Module with Low Level Trigger 5V

New

20 available

R23.95

Shipping

Free shipping is available from BotGoods (PTY) LTD for all orders above R650.00, using one of our trusted couriers.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

BotGoods (PTY) LTD823

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

1-Channel 5V Relay Module (Low-Level Trigger)

Easily control high-voltage appliance circuits directly from your microcontroller!

Whether you're building a smart home automation system, a custom IoT project, or an industrial control setup, this 5V Single-Channel Relay Module bridges the gap between low-power microcontrollers and high-power electrical loads.

Designed with an active-low trigger, it allows microcontrollers like Arduino, Raspberry Pi, ESP8266, and ESP32 to safely toggle lamps, motors, solenoids, and AC appliances up to 10A.

Key Features & Benefits

High-Power Switching: Safely switches loads up to 250V AC / 10A or 30V DC / 10A.
Low-Level Trigger: Activates when the control pin is pulled to GND (0V), making it ideal for standard microcontroller outputs.
Onboard LED Indicators: Features a power indicator LED alongside a dedicated relay state LED for real-time diagnostic status.
Easy Terminal Connections: Comes equipped with heavy-duty screw terminals (NO, COM, NC) for effortless load wiring without soldering.
Universal Compatibility: Works seamlessly with Arduino, ESP8266/ESP32, Raspberry Pi, PIC, AVR, and 8051 platforms.

Technical Specifications

Parameter	Specification
Operating Voltage	5V DC
Control Signal	Low-Level Trigger (Active Low / GND)
Max Switching AC Load	250V AC @ 10A / 125V AC @ 10A
Max Switching DC Load	30V DC @ 10A / 28V DC @ 10A
Pin Out	`VCC` (+5V), `GND` (Ground), `IN` (Control Signal)
Output Terminals	NO (Normally Open), COM (Common), NC (Normally Closed)

Export to Sheets

Popular Applications

Smart Home Automation: Smart light switches, automated plug points, and appliance controllers.
Robotics & DIY Projects: Motor control, solenoid activation, and automated valve actuators.
IoT Systems: Remote power switching via Wi-Fi or Bluetooth.
