1 , Gravity Nano I/O Shield

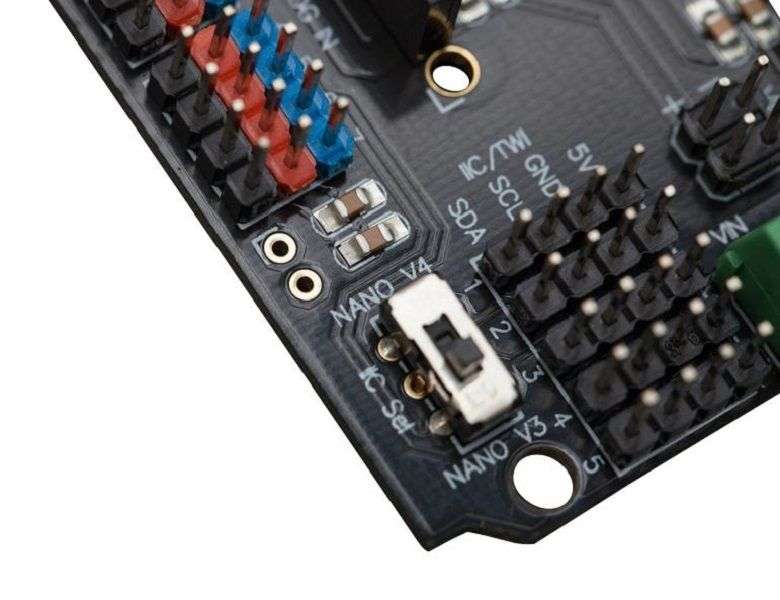

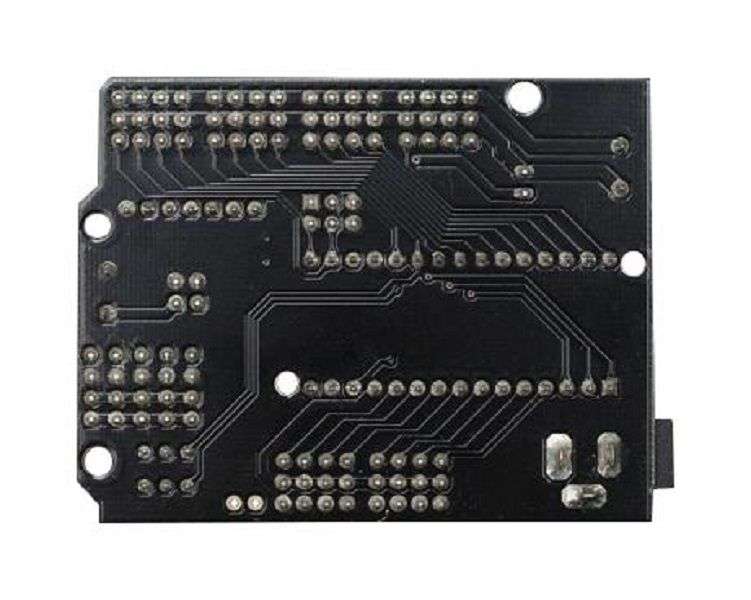

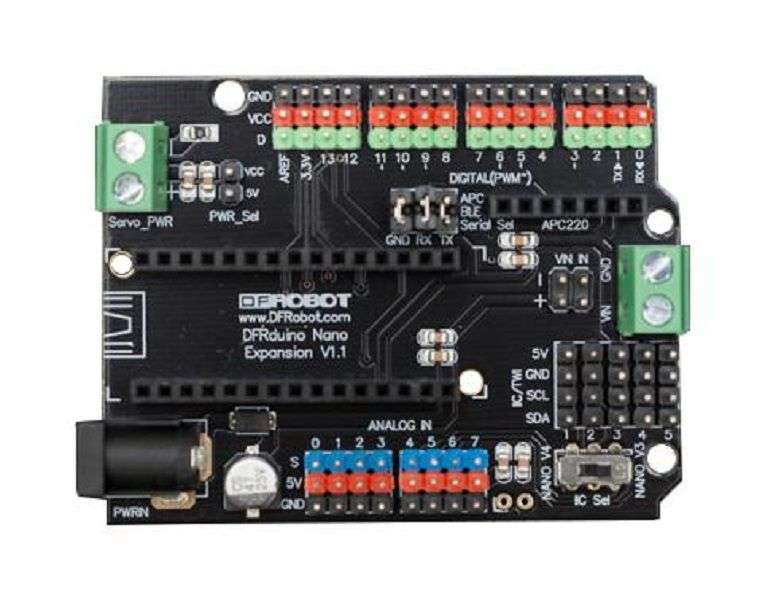

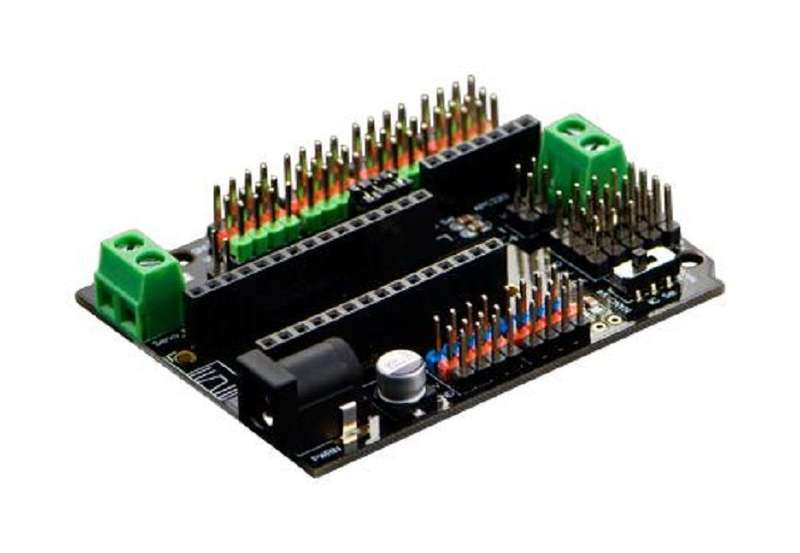

Product InformationSilicon Manufacturer: -Core Architecture: -Core Sub-Architecture: -Silicon Core Number: -Silicon Family Name: -For Use With: Arduino Nano, DFRduino Nano V3/V4 and Bluno Nano BoardsKit Contents: Gravity Nano I/O ShieldProduct Range: -Product OverviewArduino Nano I/O sensor shield acts as an expansion board for the Arduino Nanoand DFRduino Nano microcontrollers. There are several different options forpower input. The form factor of the Nano I/O Shield board is the same as theArduino UNO/Arduino Leonardo. In addition, the sensor shield adopts Gravityinterface that each pinout includes 5V and GND pins for easy connection toGravity sensors or servos. To the best compatibility, the shield supports jumperwires for rapid prototyping. This unit comes fully assembled. The board also hasa space specifically for the DFRobot Bluetooth module and ACP220. Several I2Cpins are also expanded. The Arduino nano shield has independent power supply toprovide extra power for servo and other sensors.Power supply: +5 VSize: 69x54mm (2.7 x 2.1 in)
