1 in 2 eSATAp (Power over eSATA) Male to USB-A Female / eSATA Female Adapter: Brand New (Sealed)

• Brand New (Sealed)

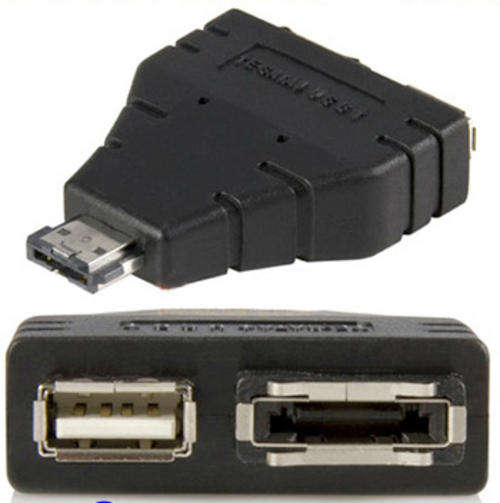

1 in 2 eSATAp (Power over eSATA) Male to USB-A Female / eSATA Female Adapter

eSATAp, or Power over eSATA, in computing is a high speed connection for external storage devices. It is a combination of serial port connectors into which an eSATAp, eSATA or USB devices can be plugged. The port has keyed cutouts for both types of device to ensure that a connector can only be plugged in the right way round.

eSATAp combines eSATA performance with USB ease in a single connector that eliminates the need to carry a power adapter in some scenarios and keeps limited USB ports free to attach other peripherals. Only for newer computers equipped with an eSATAp port, this adapter connects and permits simultaneous use of eSATA and USB devices with data transfer eSATA speeds up to 3 Gbps and Hi-Speed USB speeds up to 480 Mbps. It can also simplify data and power connections when using USB-powered eSATA devices.

Package Contents:

   1 x Combo Power eSATA USB to eSATA & USB Adapter 1 in 2 new

• Connector Details 1 x 11-pin eSATA Male
• Connector Details 1 x 7-pin eSATA Female
• Connector Details 1 x Type A Female USB
• Power over eSATA male to type-A USB female and eSATA female
• 2-in-1 design easily connects and permits simultaneous use of eSATA and USB devices
• Supports data transfer eSATA speeds up to 3 Gbps and Hi-Speed USB 2.0 speeds up to 480 Mbps
• Simplifies eSATA data and power connections – ideal for eSATA drive enclosures with USB power
• Fully shielded to help reduce EMI and other interference sources
• Molded PVC boot
• Withstanding voltage: 300 V DC 10 ms
• Insulation resistance: 5 MOhms
• Contact resistance: 10 Ohms

    Support 2.5”/3.5” SATA HDD, SATA CD/DVD and other standard SATA devices

Note: We are unable to provide technical support for any software/Hardware we supply. Please ensure that the software/Hardware will run on your device before ordering as we cannot be responsible for incompatibilities with your system.
