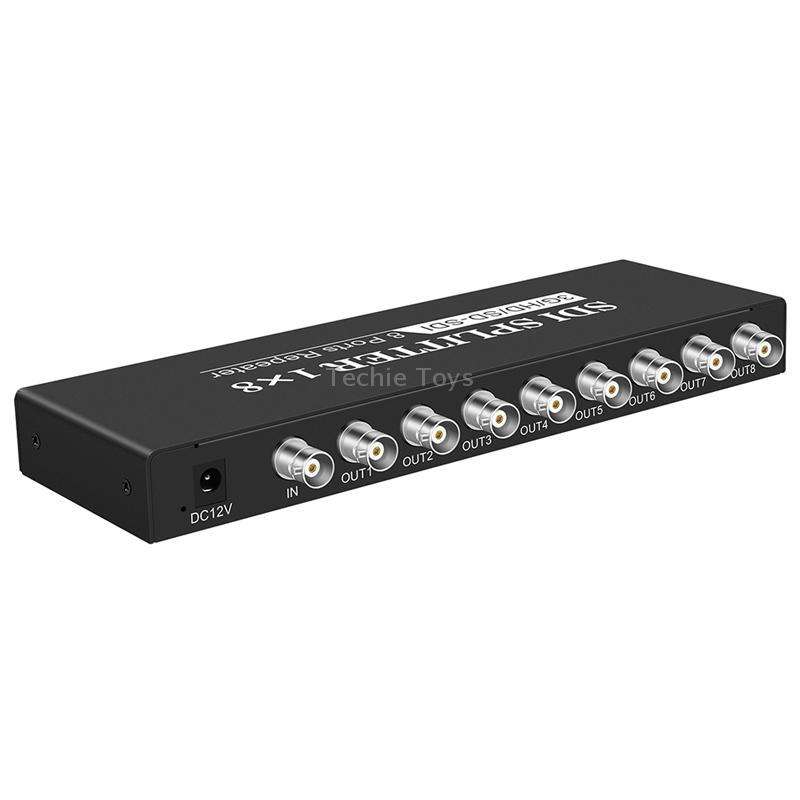

1 In 8 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter(UK Plug)

1. SDI output interface: BNC SDI×2 SDI×4 SDI×8
2. SDI standard compatible: SMPTE 424M, SMPTE 292M and SMPTE 259M-C
3. SDI signal format: SD-SDI HD-SDI 3G-SDI
4. Support SDI rate: 143-2970MB/S
5. SDI impedance: 75 ohms
6. Resolution: 480i 60Hz / 576i 50Hz / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60HZ / 1080P 24Hz 25Hz 30Hz 50Hz 60Hz
7. SDI signal output amplitude: 800mVp-p
8. Dimensions: 219 x 70 x 24.5mm

Installation steps:
1. Connect the SDI input interface to the SDI signal source through the coaxial cable
2. SDI output can be connected to other display devices that support SDI signal input
3. Turn on the power of the host, and the machine starts to work

Function description:
1. SDI distribution function: Connect the hardware according to the three "installation steps", and the SDI splitter will start to work normally. The SDI splitter supports SD-SDI (270Mbps), high-definition HD-SDI (1.485Gbps) and full high-definition 3G-SDI (2.97 Gbps) video format, SDI video distribution
2. Extension function: This product supports cable length up to (Belden-1694A); SDI line input and output distance: SD supports 400m, HD supports 200m, 3G supports 100m (theoretical value, the specific distance is related to the quality of the cable)
3. Wide voltage design: built-in wide voltage design, support DC5V~36V voltage input (power up to 2W)
4. Intelligent design: It adopts pure hardware processing to plug and play, and can automatically detect different SDI signals. When a valid SDI signal is input, the LED indicator will display green. If there is no signal or the signal is not consistent with the standard LED indicator will be will go out, making it easier for engineering customers to judge the problem


TBD0422348101C
