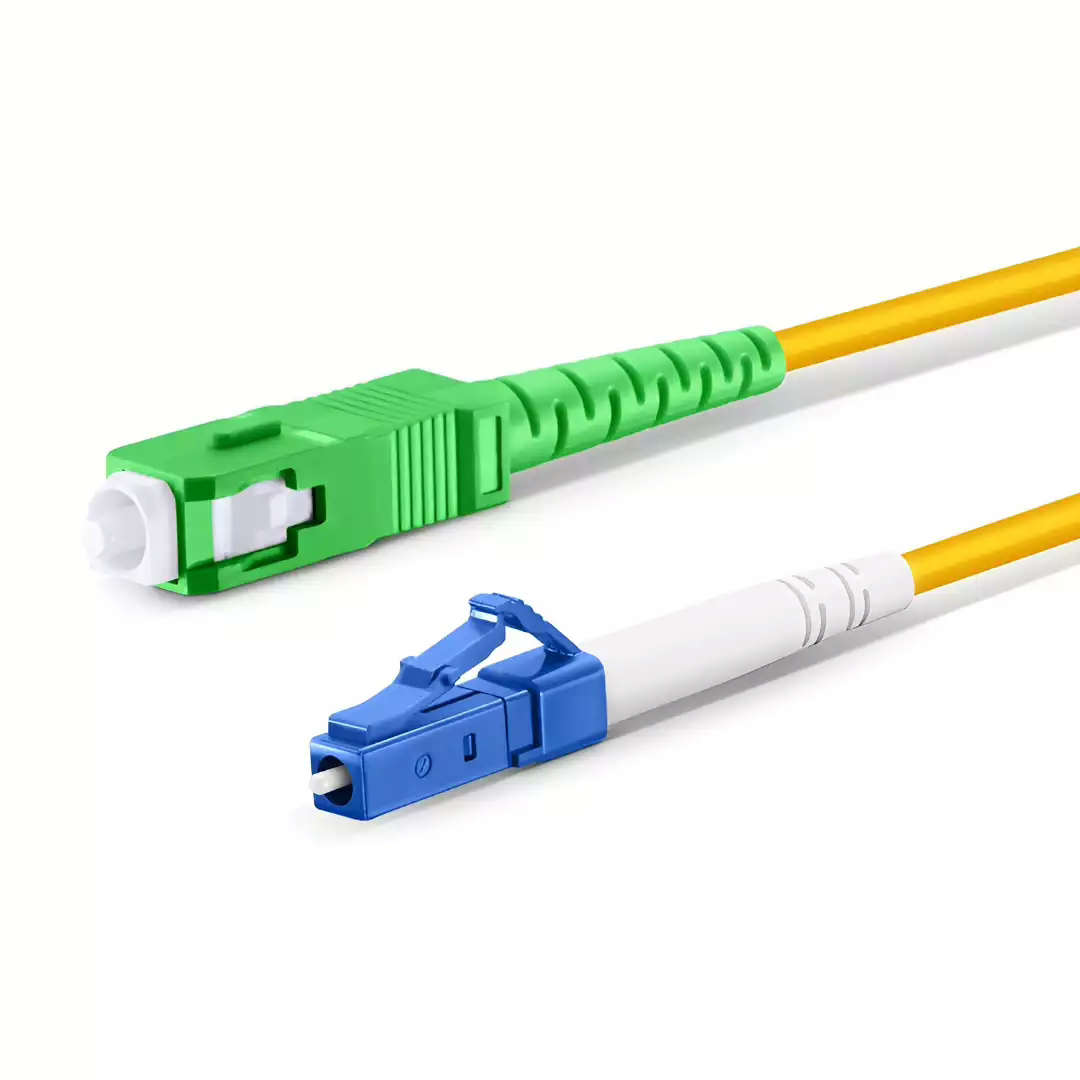

1 Meter APC SC to LC Fiber Cable or SC to SC | Fiber Cable for Internet Router

1 Meter APC SC to LC Fiber Cable or SC to SC | Fiber Cable for Internet Router

This Fiber cable is mostly used as a replacement cable if your cable is damaged from your Internet router to the service provider Fiber ONT (White Box). Please check if SC to LC or SC to SC Connectors as per pictures. Different service providers uses different connectors.

Single mode fiber optic patch cables come with a 9 micron diameter glass core. With the cladding layer, they are 125 micron, and with the buffer layer they are 250 micron. To prevent excessive loss (attenuation), you should ensure that you only connect single mode cables to other single mode fibers already in your system.

Please see our guide at Fiber Optic Cables & SFP Compatibility for more information.

Specifications:

• Indoor or Outdoor Installation
• Diameter  : 2mm
• Simplex (Single Fiber Cable and Connector Single Head on each side)

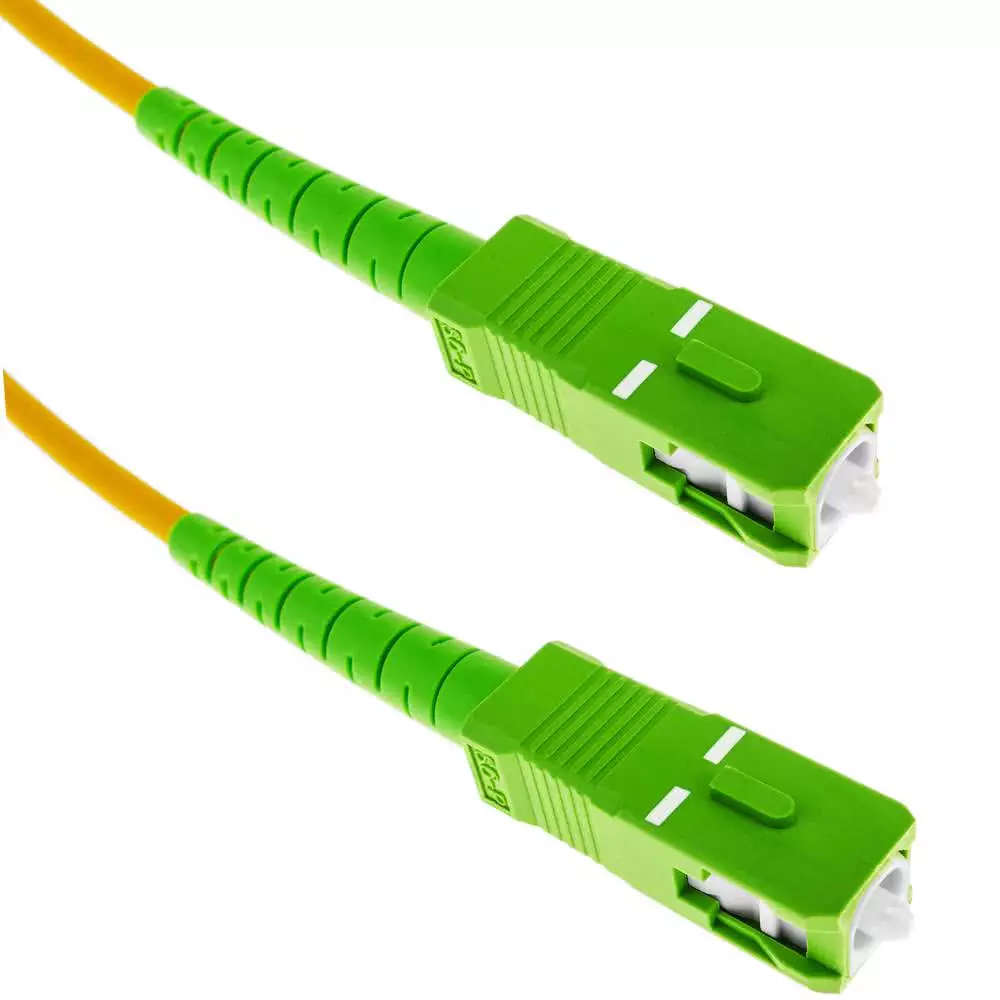

• LC/APC SC/APC or SC/APC SC/APC
• G.657A2, 2.0mm

Tensile Strength

Always take care when installing fiber cables to ensure not to break the fiber inside the cable by over-bending or twisting cables. These cables strengthened by kevlar mesh can withstand some tension but will break under heavy strain.

G.657A2 Bend Ratio vs Other Specifications

Single Mode Fiber Cable Usage and Instructional Video

?v=7D5DXND3-TI
