1 Meter USB 4 Cable 40Gbps with Digital Display | PD 240 Watt Max Power Thunderbolt 5 Specification | 8K Display Output

This cable has the same features as Thunderbolt 4 and Thunderbolt 5 USB C Cables, please see technical details of USB C Cables as at https://www.hdcabling.co.za/usb-1-1-vs-usb-2-0-vs-usb-3-0-vs-usb-3-1-vs-usb-3-2-vs-usb-4-0-usb-type-c-3-1-3-2-gen1-gen2-thunderbolt-3-vs-thunderbolt-4-specifications/

Difference between Thunderbolt 4 and USB 4

The details of Thunderbolt 4 are proprietary, but according to Intel's public statements the only real difference between the two standards is that the top speed of 40 Gbit/s is mandatory for Thunderbolt, whereas it is optional for USB4. Otherwise, all features are the same.

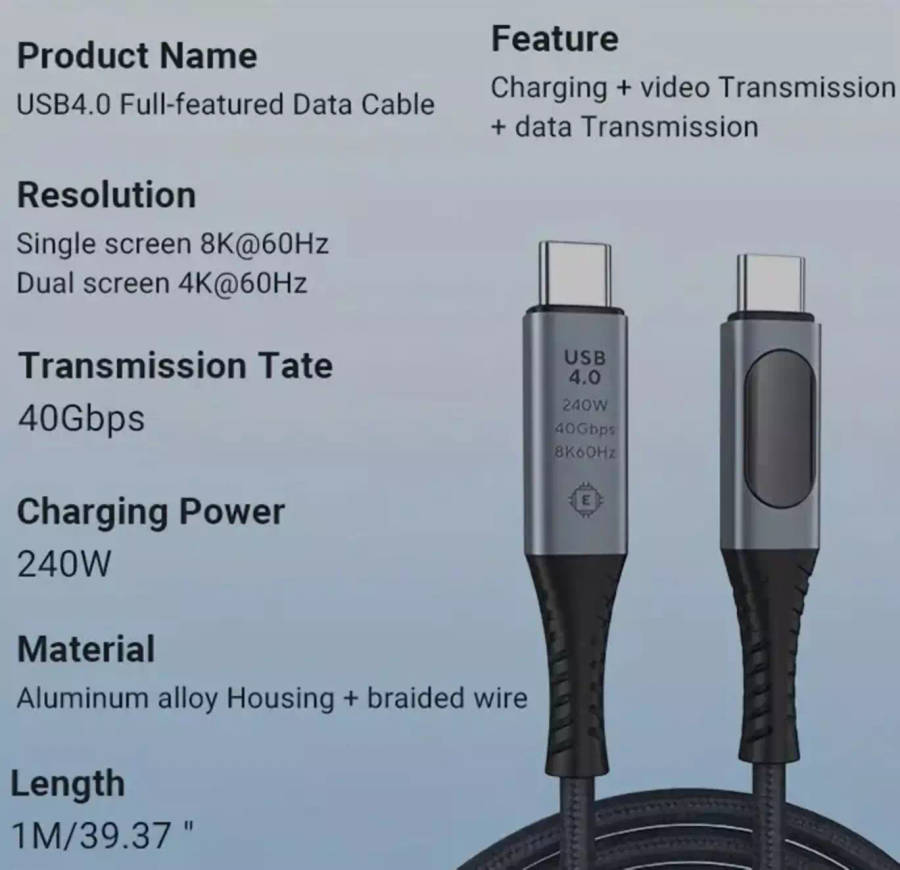

Features:

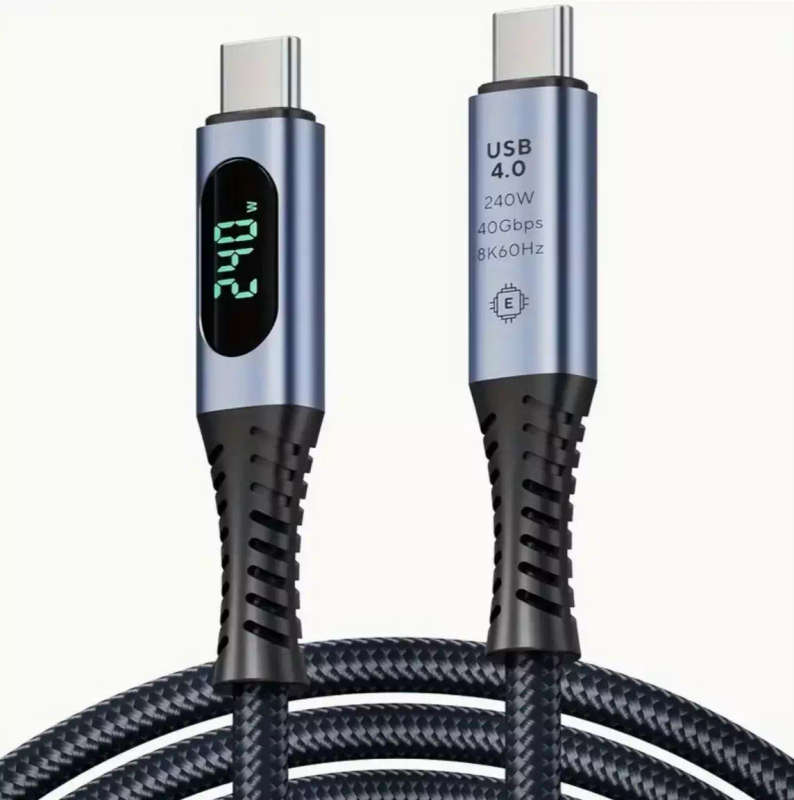

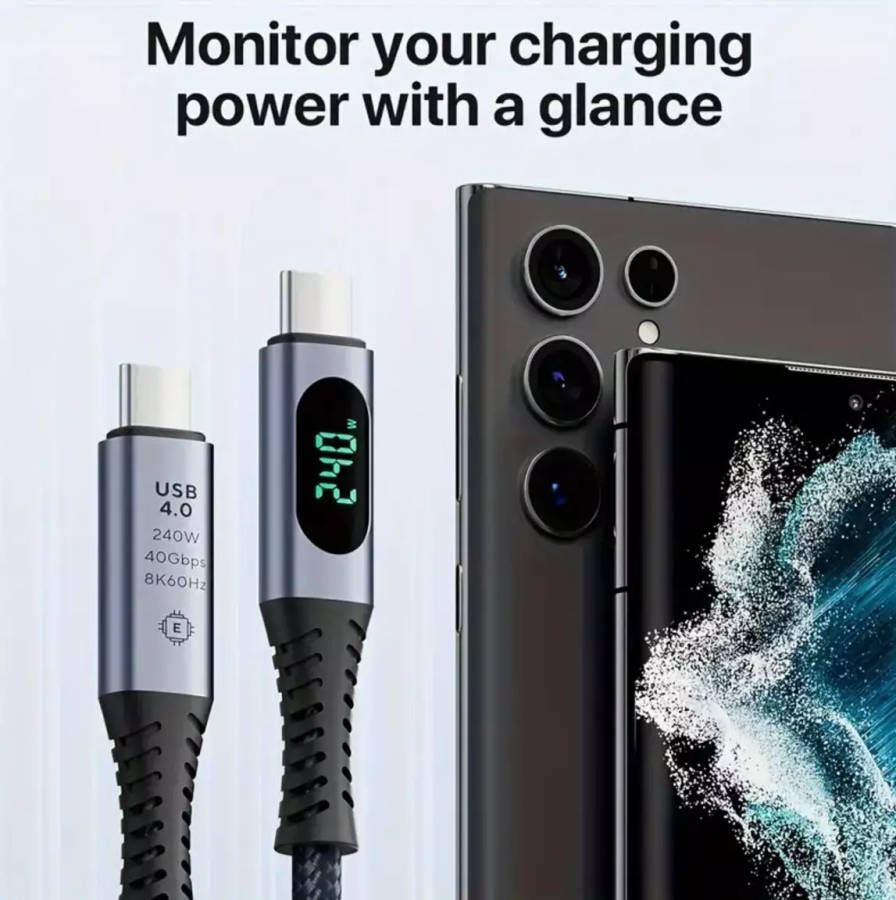

• LED Digital Display indication of Watts / Power charging / used on the USB C Cable Head.

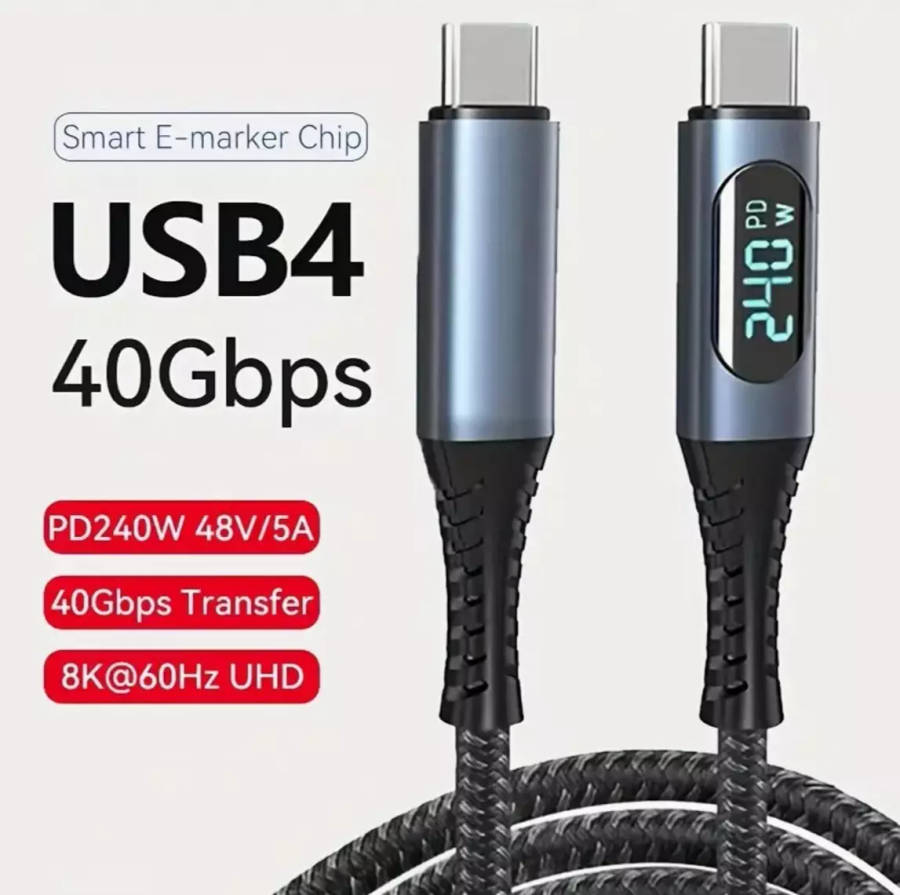

• Max Output Power / Current : 240W (48V/5A max ) PD3.1 fast charging protocol compatible with PD3.0/2.0
• Please note!!! Your USB C Port needs to support Displayport ALT Mode for video output which is supported by cable but a function of laptop / mac / PC. Please see USB Specifications for Displayport Alt Mode and Identification on the USB C Cables standard as per link above.
• For multi-string lithium-ion battery equipment such as electric tools, electric bicycles, and industrial power supplies, or equipment that requires high-voltage power supply, it can be directly adapted to the extended power range voltage of USB PD3.1.
• Used for PS5, Nintendo Switch, computers, monitors, power tools, industrial power supplies, gaming laptop and other products

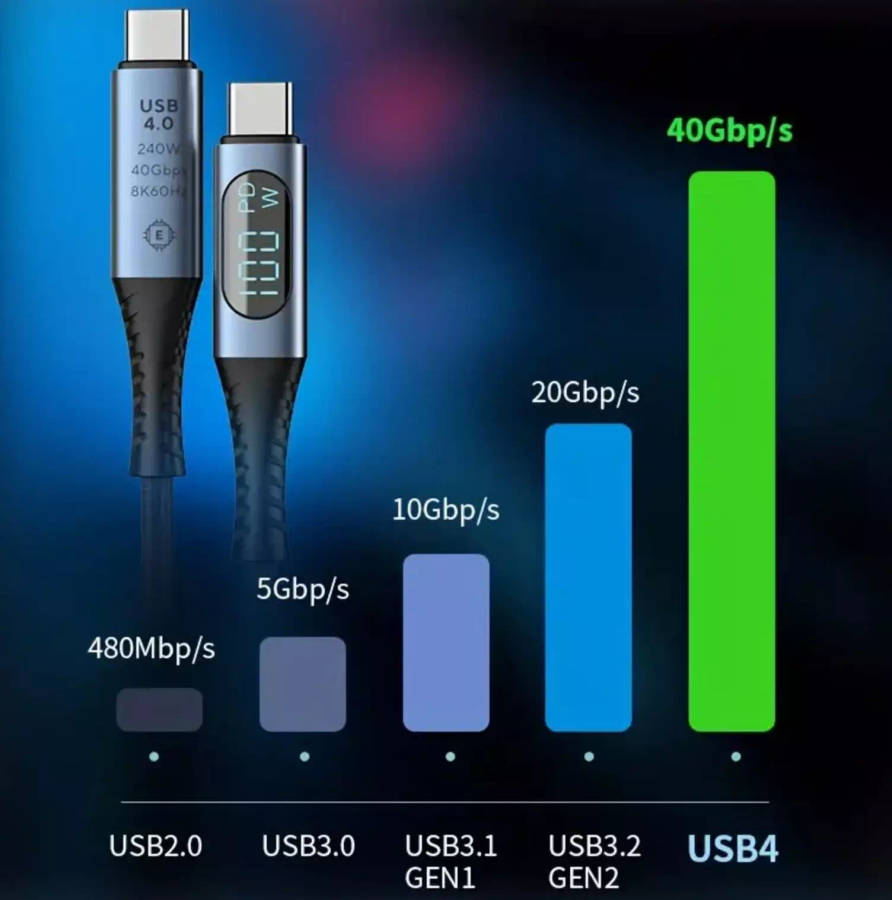

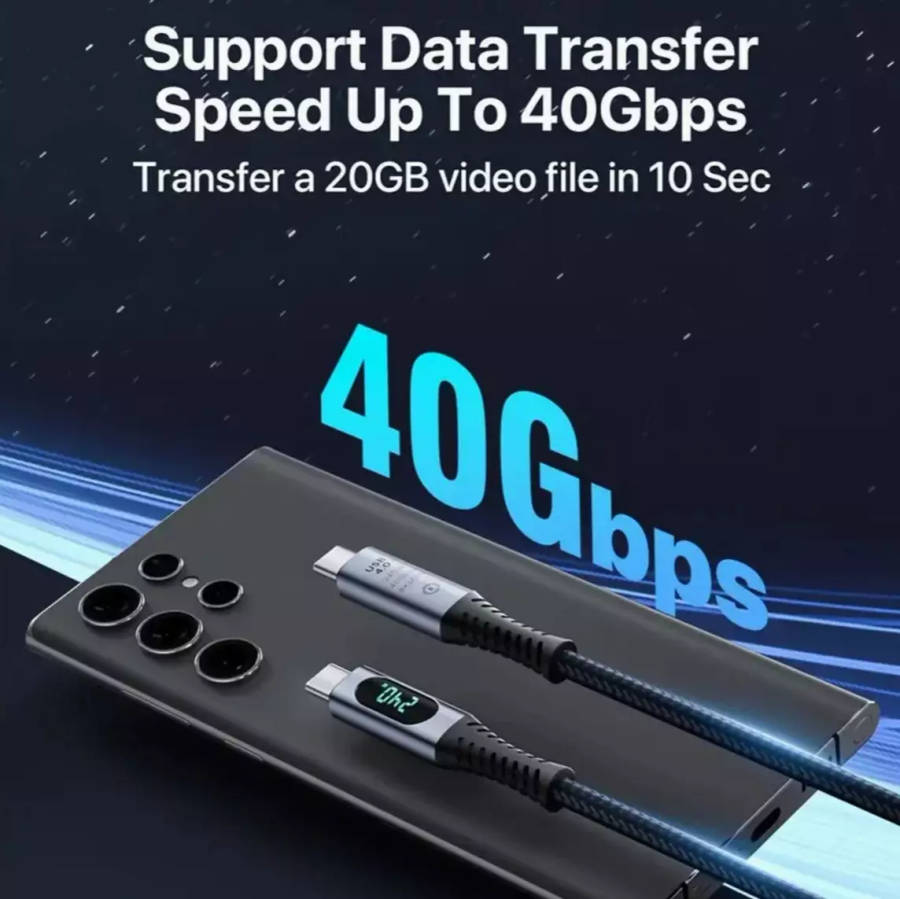

• Data transfer: 40Gbps (USB4.0 standard, compatible with Thunderbolt 3/USB3.2/3.1/3.0/2.0)
• Function: Support single 8K@60Hz or dual 4K@60Hz video output

NOTE!!! 240W USB C Cables carries higher wattage by using increased voltage which is determined by a Smart PD Charger when autosensing to 40V/48V if the device being charged supports/requests that voltage while staying within the cable 6 Amp current limit. This Cable has a 6A Limit and will melt if higher amps is used on the cable!!! It can ONLY achieve 240W on 40v/48v ranges. Power Calculation: 48V * 5A = 240W Max or 40V * 6A = 240W.
