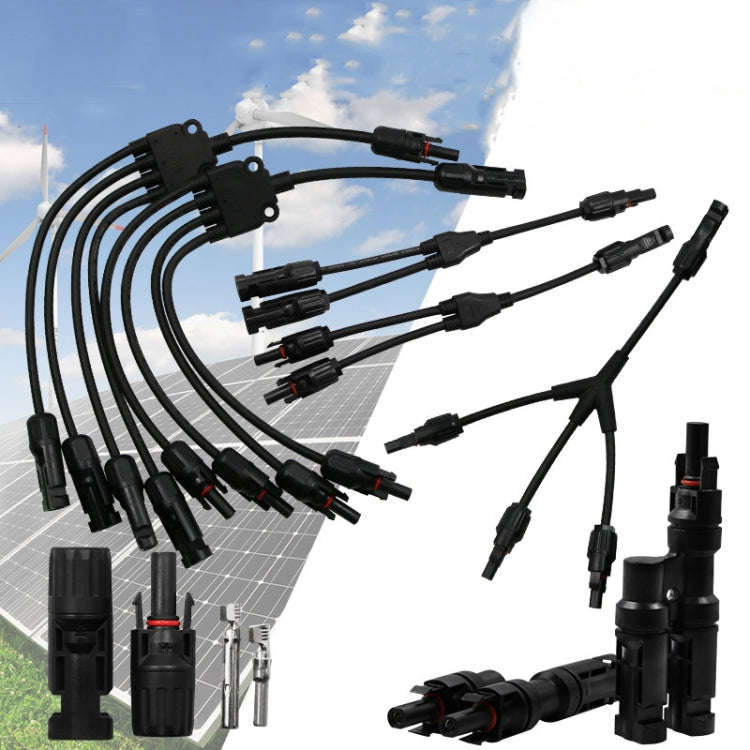

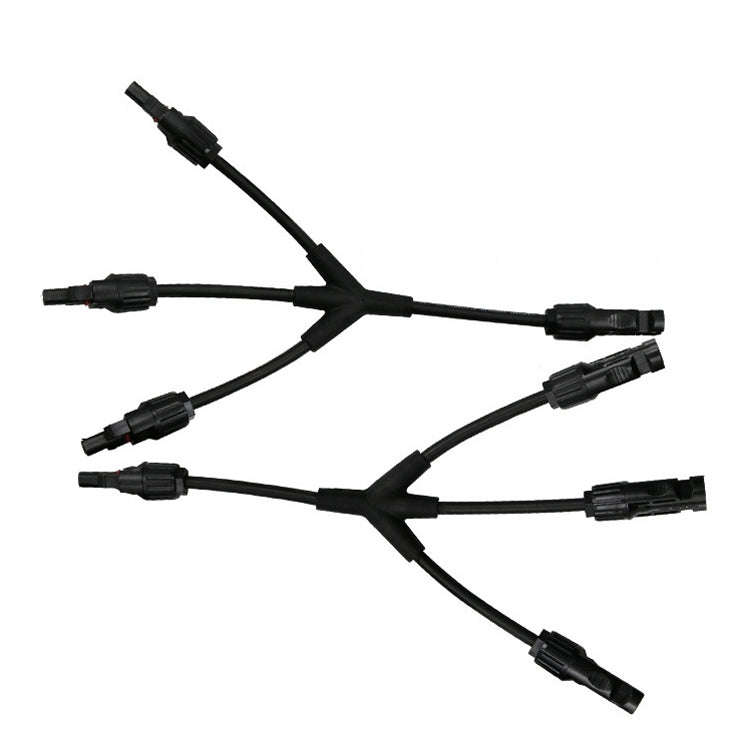

1 Pair MC4 Four-way Y Type MC4 Photovoltaic Connector Solar Branch Connector Solar Panel Male And...

1. Material: PPO shell, inner core galvanized copper
2. Weight: 4-piece set is about 24 grams/set, three-way T-type about 103 grams/pair, three-way Y-type about 117 grams/pair, four-way Y-type about 172 grams/pair, five-way Y-type about 306 grams /Correct

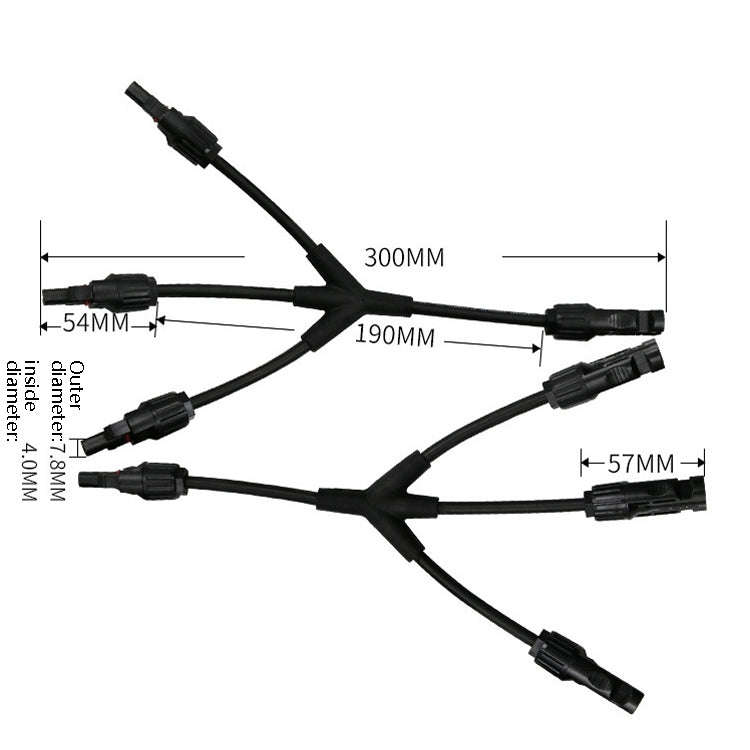

3. Size: 4-piece set is about 55.5x18.9mm, Tee T-type is about 107.8x19mm, Y-type Tee is about 300x57mm, Y-type four-way is about 300x54 mm, Y-type five-way is about 460mm long
4. Rated voltage: 1000V/DC
5. Test voltage: 6000V
6. Adapted wire diameter: 2.5-6.0 square millimeters
7. Waterproof rating: IP67
8. Wiring method: crimping

Features:

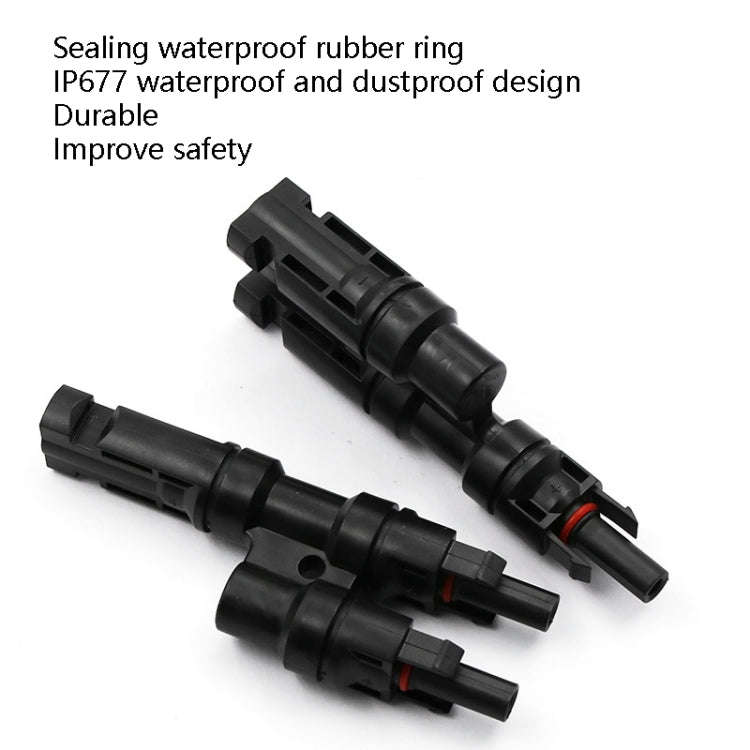

1. With sealed waterproof rubber ring, waterproof and dustproof, durable, and improve the safety of use

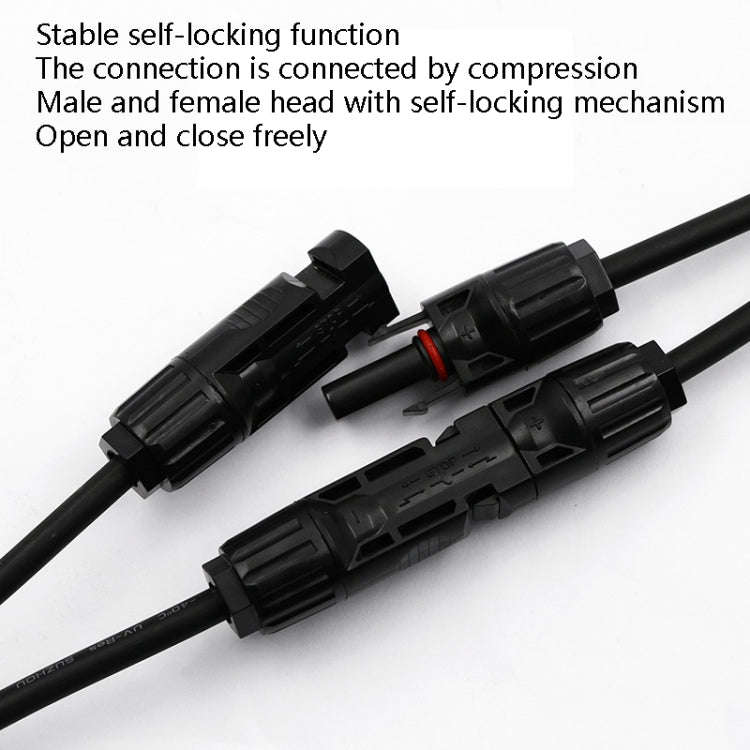

2. Stable self-locking function, the connection is connected by pressing, and the male and female heads have self-locking mechanism, which can be opened and closed freely

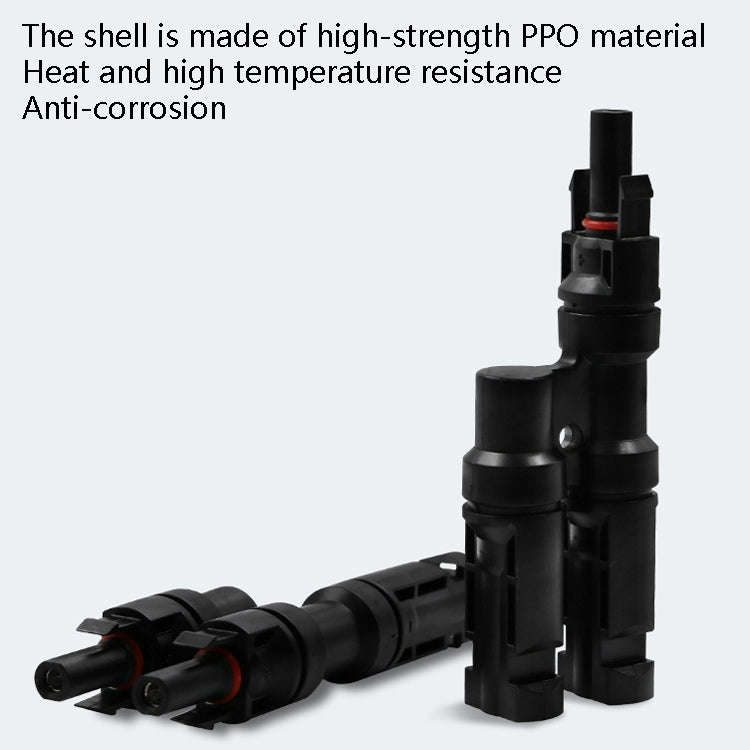

3. The shell is made of high-strength PPO material, heat-resistant, high-temperature, and corrosion-resistant

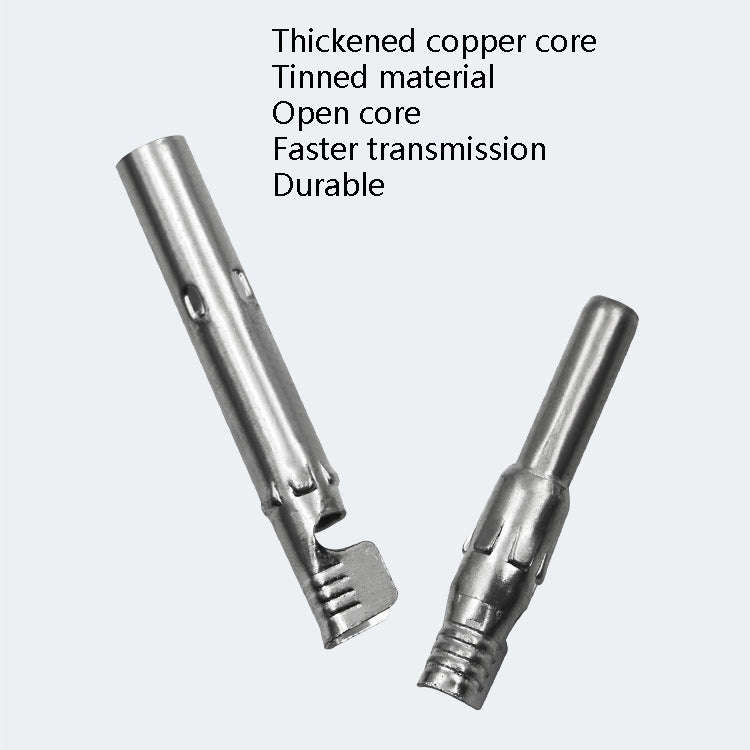

4. Thicker copper core, tin-plated material, open core, faster transmission
5. Insulation material, butt safe
