1-Pole Wired OR 2-Pole Smart Wifi Breaker | 1-63A | 40A Continuous  Max (with Trip Limit Setting | Energy Monitoring | DIN Rail | Tuya / Smartlife App

Make your home smart and to switch-off power based on smart scenes during load shedding or solar charging to preserve solar equipment battery life, switch of other high power devices based on routines when using a smart monitoring breaker as per options on this product.

NOTE!! Please ensure all electrical wiring is done by someone who is qualified to do so or knows how to work safely with electricity. Please be safe when working with electricity and ensure correct procedures followed. We recommend installation by a qualified electrician for all electrical equipment.

Note on 63A Breakers when using MAX Amps : According to Electrical standard a 4 AWG Wire Gauge is typically recommended, or 16mm² in Metric system sizes. Ensure your electrician uses the correct wires for the breakers amperage otherwise wires will burn and cause fire if incorrect electrical wiring done. Please use a qualified electrician to ensure all wires for breakers are up to standard.

If alternative gauge wires used with this variable Trip Limit Breaker please ensure the Correct Amps/Watts is set on the breaker to ensure the breaker can do a safe trip on the trip limit specified for the breaker. Neglecting to set a trip limit on the breaker with other wire gauges used, except for 16mm² can cause electrical issues and possible fires.

To install this DIN Rail breaker on a Samite Type Rail DB Board please use the adapter as at DIN Rail to Samite Rail Adapter.

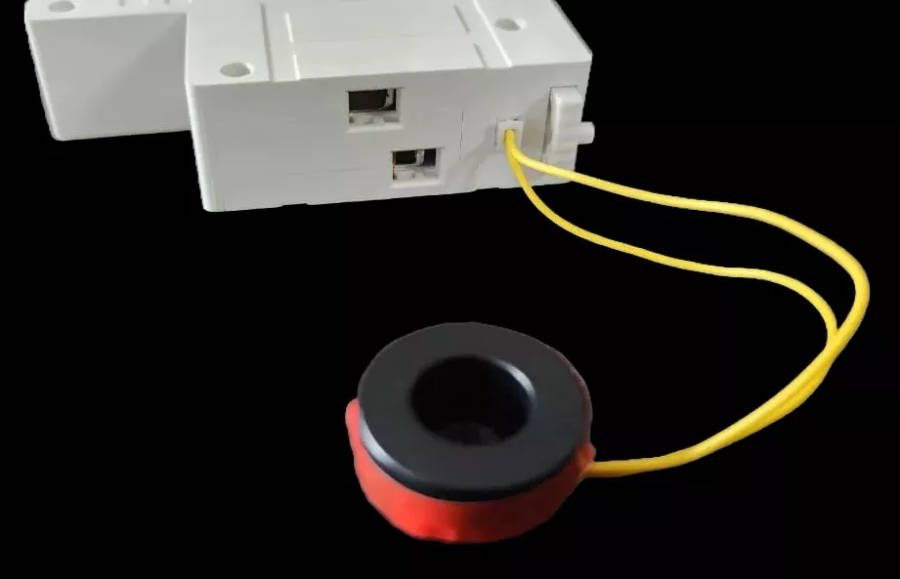

Please see the diagram below for installation: The breaker OUTPUT Wires must run THROUGH the Leakage Current Ring if leakage protection will be used on the app.

If you need to use the breaker as a 1-Pole Breaker and ONLY LIVE going to an Appliance / Lights / Pump / Plugs etc then it must be wired as below. Ignore other breakers in this image as example, the LIVE wire can be from any other breaker below into the Smart Breaker if wiring correct, or from Earth Leakage or from Main/Sub DBBoard. Your Electrician will know the easiest way to wire based on your current DB Board wiring.

Features of Smart Breakers (Independent of monitoring capabilities):

• With the 1-63A WIFI Smart Breaker, you can control high power appliances such as geysers, pool pumps, heat pumps, jacuzzi heaters or air-conditioners. Be sure to set the Amps to the wiring gauge installed for the smart breaker.
• Schedule/Timer/Loop timer, Scene based routines can change status base on status of other smart devices.

Features and Specifications of 63A Smart Breaker:

• Rated Voltage: 110-240V
• Rated Current: 40 Amp continues / 63 Amp peak.
• Connection: WIFI 2.4Ghz
• Installation: Din Rail
• Rated Frequency: 50/60hz

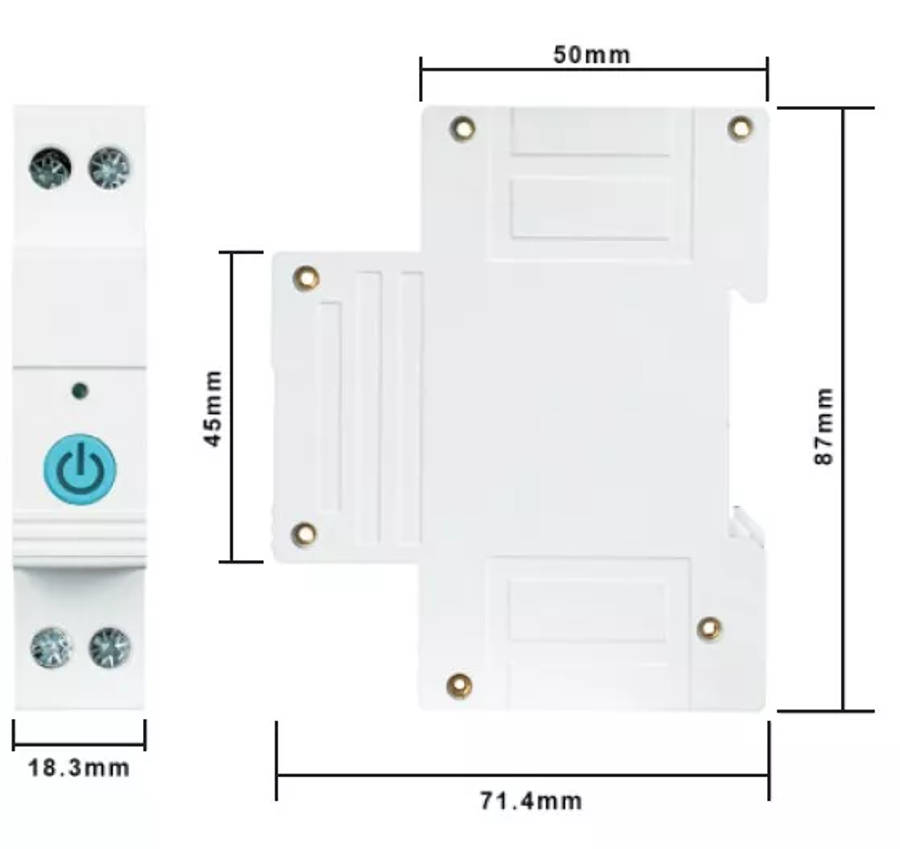

Product Dimentions:

Preset power/current/voltage trip values in-app, Once the real-time power/current/voltage reaches the threshold values, the connected electrical appliances will be automatically turned off or another smart device status can be changed based on electrical power consumption of devices connected to the smart breaker with monitoring.

Manually Add Device as Wifi Breaker to Tuya or SmartLife App:

1. Ensure the Breaker is switched off and connected as per installation diagram above.
2. Hold the power button for 6-8 seconds to ensure Wifi Pairing can start
3. Check the Indicator Light is Flashing FAST to ensure the breaker can be paired
4. Choose options below to Add the Smart Breaker

Smart Scenes below can be specified on Tuya App (Auto Scenes + Triggers for Amps, Watts, Volts etc)

Energy Monitoring can be seen on the Breaker Main Page and statistics:

Breaker Monitoring Functions and Settings:

Variable Trip Limit settings can be set on breaker for Amps, Overvoltage, Undervoltage or Current Leakage
