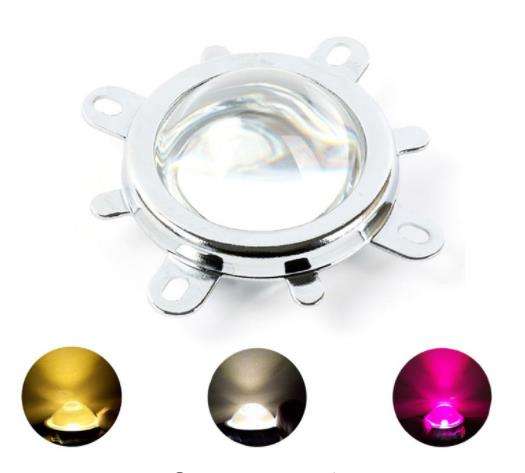

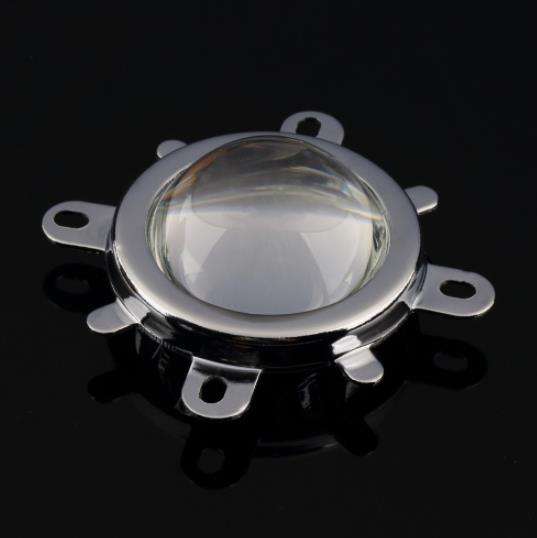

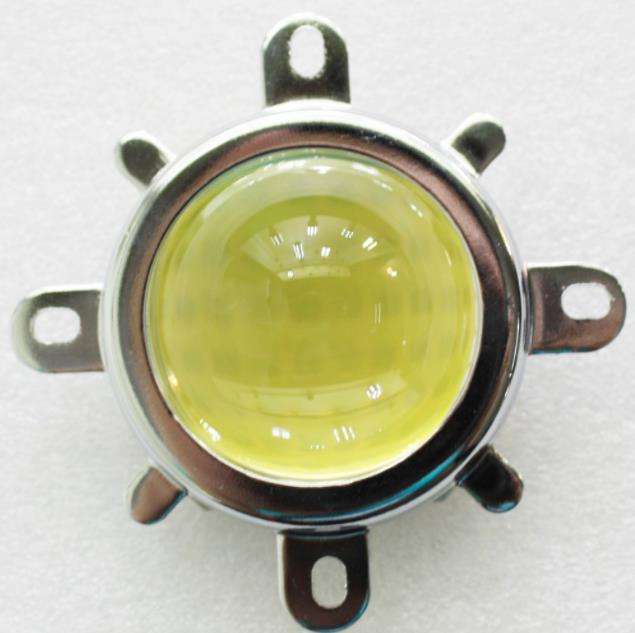

Item | led lens |
Beam Angle | 60 degree |
Light transmittance | 98% |
Application | Use for 10w -100w Integration COB led chip |

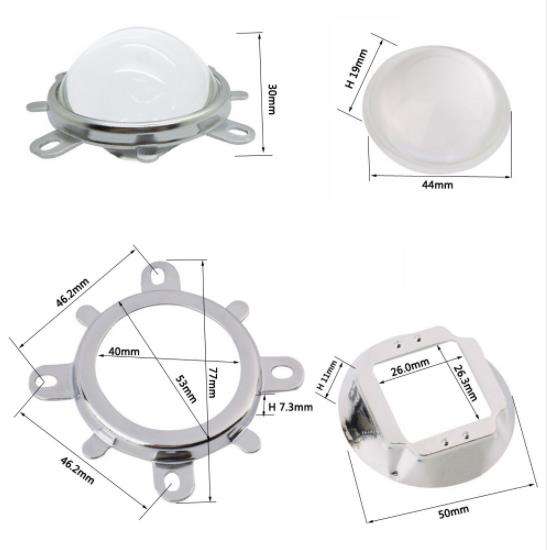

Specification of After assembly | Diameter :53 mm (excluding fixed screw part); height: 30 mm |

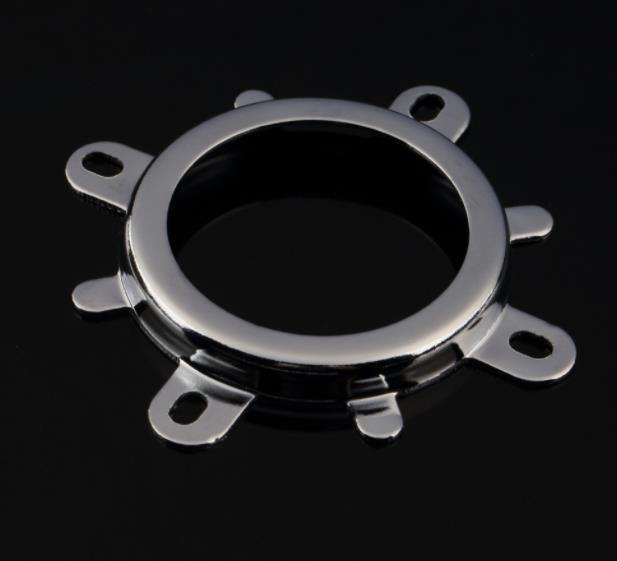

Specification of fixed Bracket | Diameter: 53 mm (excluding fixed screw part) Height: 7.3 mm |
Specification of lens | Moder type:DT44 The lens Outer diameter: 44 mm Height: 19 mm Edge thickness: 3mm Material:Glass Resistant temperature: - 30 + 200 C |

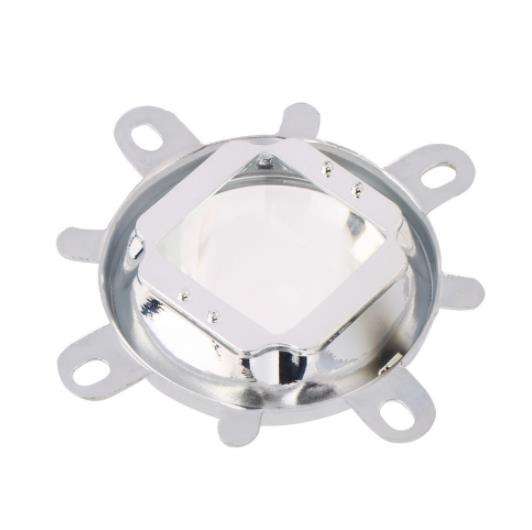

Specification of Reflective cup | Diameter: 50mm Suitable for loading 44mm leds Height: 11 mm Beam Angle:60 degree Material: plastic electroplating |
Package included | 1pc 44mm Glass Lens 1pc 50mm Reflector cup 1pc fixed bracket |
Notice | LED flood light chip not included |
