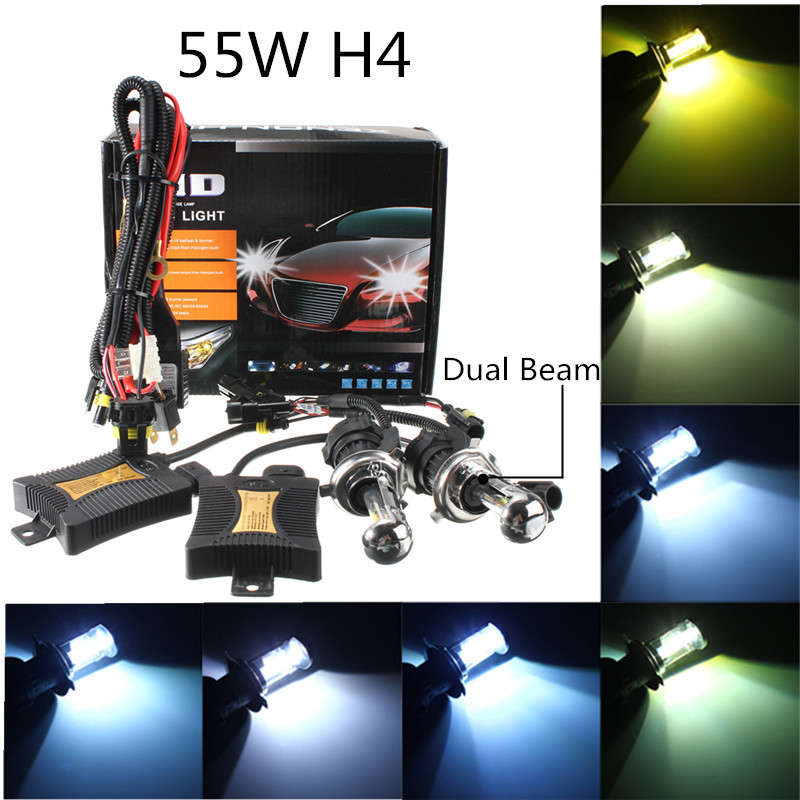

Name: 1 Set Xenon HID Conversion Kit H4 55W DC12V Dual Beam Headlight
SKU: UPC1021668
Price: 943.25 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

1 Set Xenon HID Conversion Kit H4 55W DC12V Dual Beam Headlight

5 were available / new

Indicative market price: R1,131.89

R943.25

17% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

There are various locker and counter collection points across South Africa.
View locations

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

The World OnLine10208

98.11 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Customer ratings:

1 ratings

Product code

UPC1021668

Bob Shop ID

230220442

Specification:

Dual Beam (H/L):H4-3=HB2=9003
Voltage:DC 12V
Current Norm.: 4.2A
Current in Max: 6A
Power Output: 55W
Working Temperature:-40 ~ +105 Centidrgee.
HID Efficiency: 98.68%, 3, 200 LM.
Life-Span: 3, 000 hours

Features:

- Slim Ballasts, Slim compact design
- Digital Ballast
- Anti-UV Pure quartz bulb. High rigidity, great light penetrability.
- Innovative short circuit caused by touching the tip.
- Easy installation

Installation Guide:

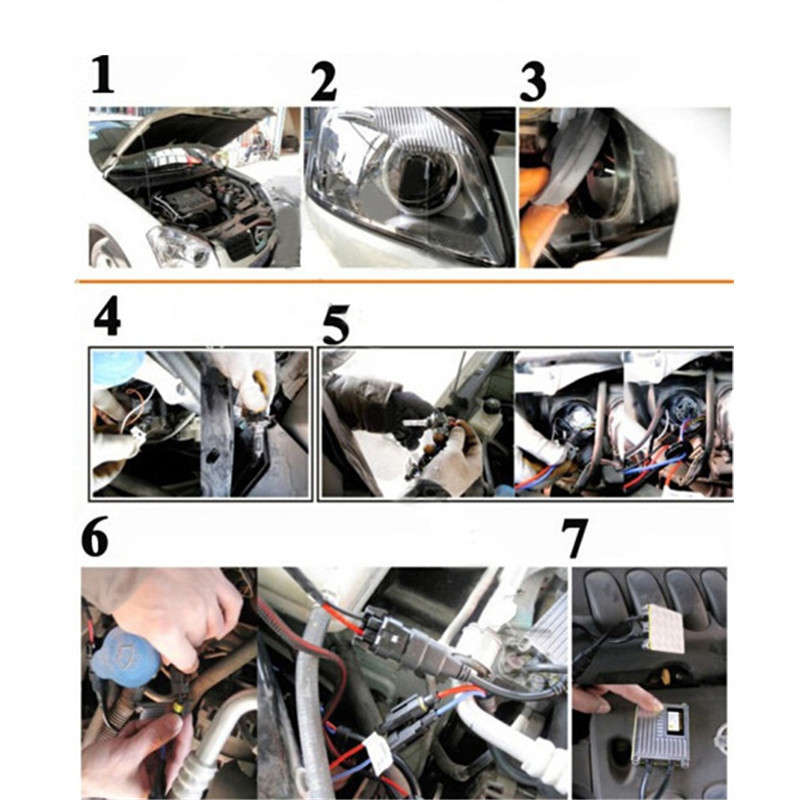

Step 1: Open hood and locate the factory light bulb you are trying to convert. If fog lights, you may need to pull out your factory fog light housing to access the back. On some vehicles you can access factory bulbs from the engine bay or from the wheel wells with your wheels fully turned on direction. Please consult your owners manual or dealer on how to access your factory light bulbs. In 90% your bulbs are easily removed without too much trouble. Once your factory light bulb is removed, you can prepare for the HID bulb insertion.

Step 2: Remove the plastic capsule preinstalled on the HID bulb and insert into your headlight socket. HID bulbs should fit similar to your factory light bulb, but the tolerances may be slightly different on certain vehicle models. Bulb installation will vary from twisting to clamping from the back depending on the bulb type. Be very gentle with the HID glass portion. Do not touch the glass with your fingers. If it does end up getting dirty, simply wipe with clean cloth gently.

Step 3: Once the HID bulb is fixed into place locate the factory connector where the original halogen bulb was connected to. You will now connect the supplied wire (may be a plug or 2 metal tips) that you must insert into your factory connector as shown below. When we say factory connector, this is the connector your original bulb was feed power with.

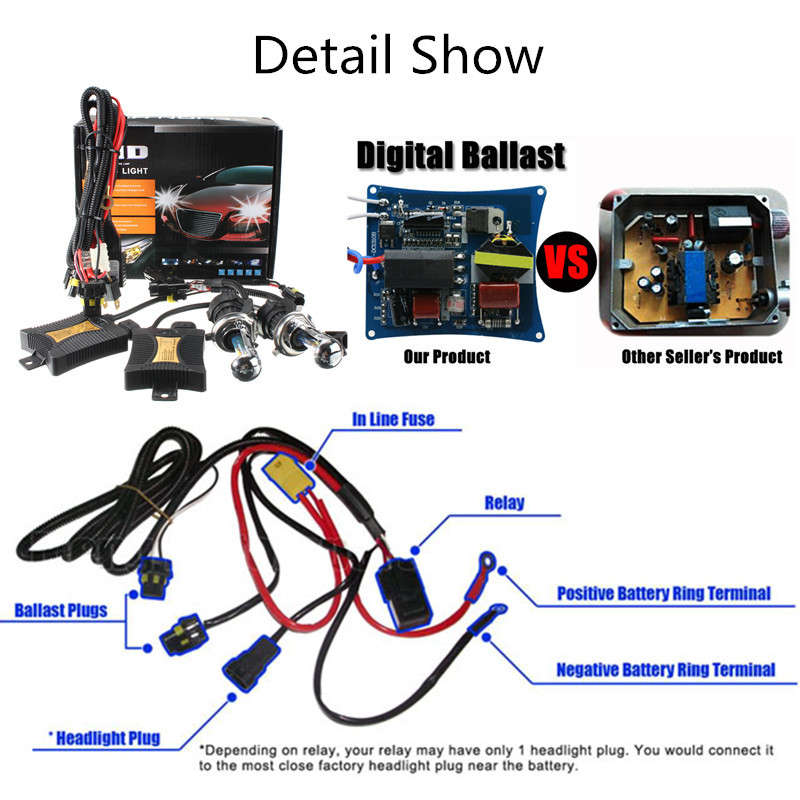

Step 4: If your kit included a relay you will not use the provided extra wires shown in Step 3a. that connect ballast to factory headlight plug. Instead the ballast get connected to the relay as shown below. The relay then will connect to your factory headlight plug. Some relays will have two plugs one for each side, while others only one headlight plug. Remember a relay simply gets a signal from your headlight plug, then allows power to flow directly from your battery.

Step 5: If your kit purchased is a bi-xenon kit also known as hi/low (low beam + high beam HID with movement). This only applies to kits with bulb types 9004 9007 H4 H13 9008. Notice on these kits there will be only 1 headlight plug connector. One of your headlight connectors may not be used.

Step 6: Before mounting ballast permanently please test the system. Low beam, high beam and fog light function if it applies to your install. It is best to turn the vehicle on to test the system as some vehicles do not give full voltage when vehicle is running only from battery.

Step 7: Mount the ballasts on any existing bolt or flat surface away from excessive heat. We do not recommend mounting on top of the radiator or in front or behind it. Ballasts are electronic devices which excessive heat can ruin. Make certain the wires with your kit cannot get tangled into the belt line or are resting on very hot components of the engine.

Package Included:

2x Ballasts
2x Bulbs
1x HID 12V Wiring Harness Controller
1x Installation Manual
4x Ribbons
