Specifications:
Model: UT673PV+
Open-circuit voltage measurement:
10.0—99.9V; resolution 0.1V; accuracy ±(1.5%+5)
100—150V; resolution 1V; accuracy ±(1.0%+5)
Power measurement:
5—999.9W; resolution 0.1W; accuracy: 5—10W ±(1.0%+5); 11—500W ±(1.0%+10); 501—999W ±(1.5%+5)
1000—2200W; resolution 1W; accuracy ±(1.0%+5)
Short-circuit current: 0—20A; resolution 0.1A; accuracy ±(1.5%+5)
Functions: reverse connection protection; overvoltage protection; overcurrent protection; overtemperature warning; overpower protection; HOLD/READ; manual measurement; automatic measurement; calibration mode; Bluetooth/backlight
Operating temperature: 0°C—40°C (32°F—104°F)
Storage temperature: 10°C—50°C (14°F—122°F)
Relative humidity: below 0°C—30°C <75%; between 30°C—40°C <50%
Altitude: not exceeding 2000 m
Safety regulation level: CAT 0 150V
Power supply: 2 x 1.5V AA batteries(not included)
Body color: Red + gray
Dimensions: 165 mm x 80 mm x 41 mm
Features:

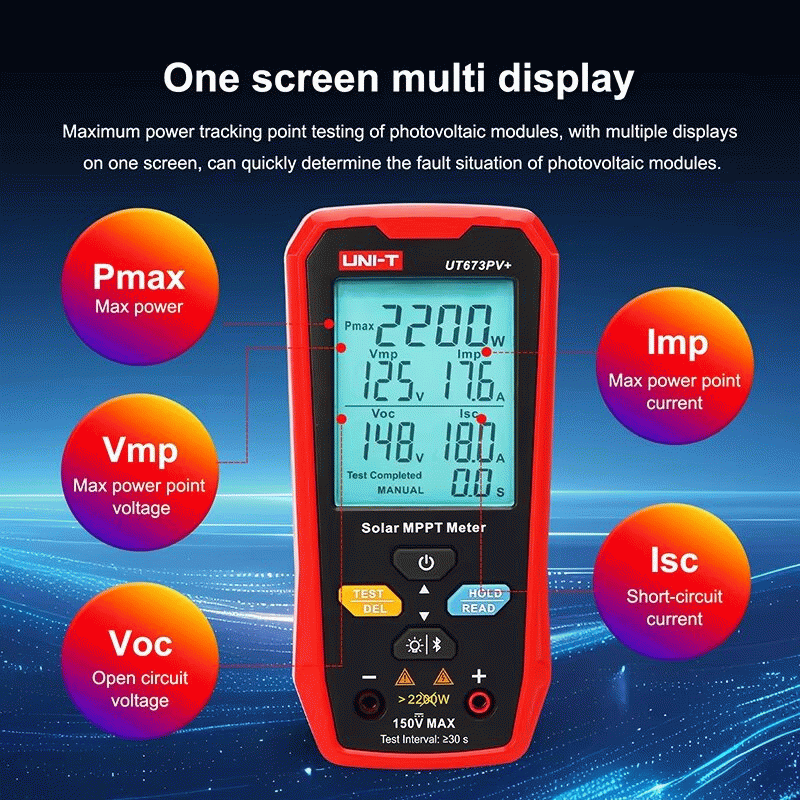

1. Measures opencircuit voltage, shortcircuit current, and power from 5W to 2200W with fine resolution.

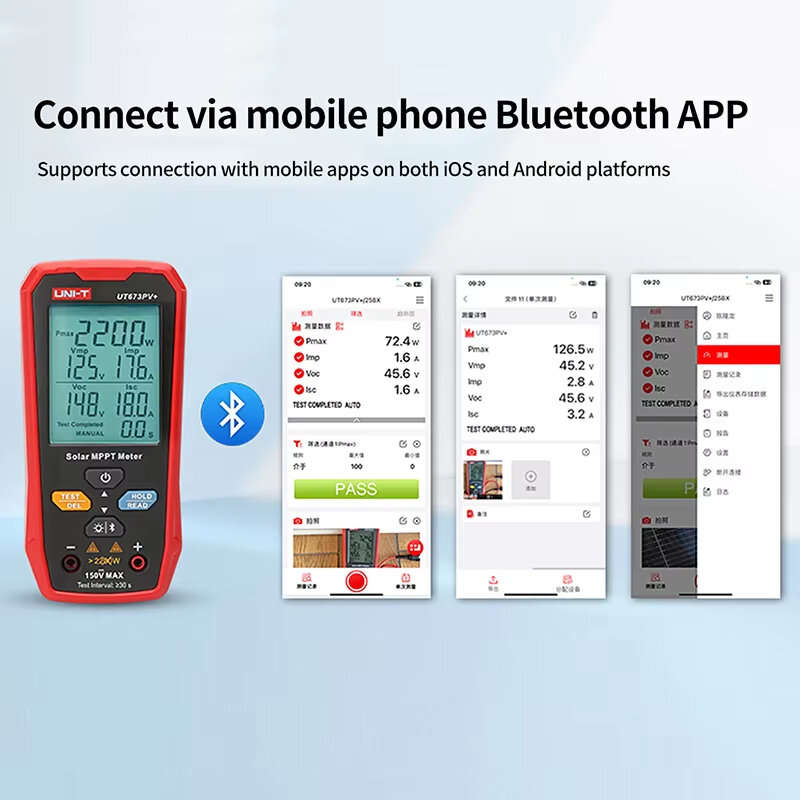

2. Bluetooth app connection for mobile phones on both iOS and Android platforms.
3. Multiple protections: reverse connection, overvoltage, overcurrent, overtemperature, and overpower.
4. Manual or automatic measurement with HOLD/READ and screen backlight.
5. Compact body (165×80×41 mm) for easy carrying during photovoltaic tasks.
Package included:
1 x UT673PV+ Solar MPPT Meter
1 x Instruction Manual
1 x line UT-L101
