SELECTED OPTION:
COLOR.: BLACK

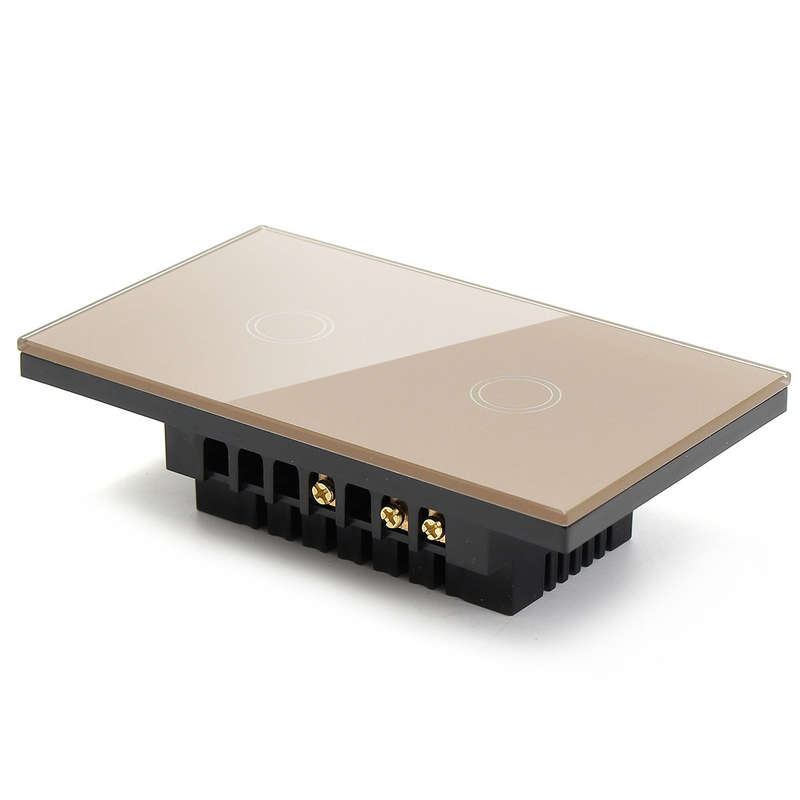

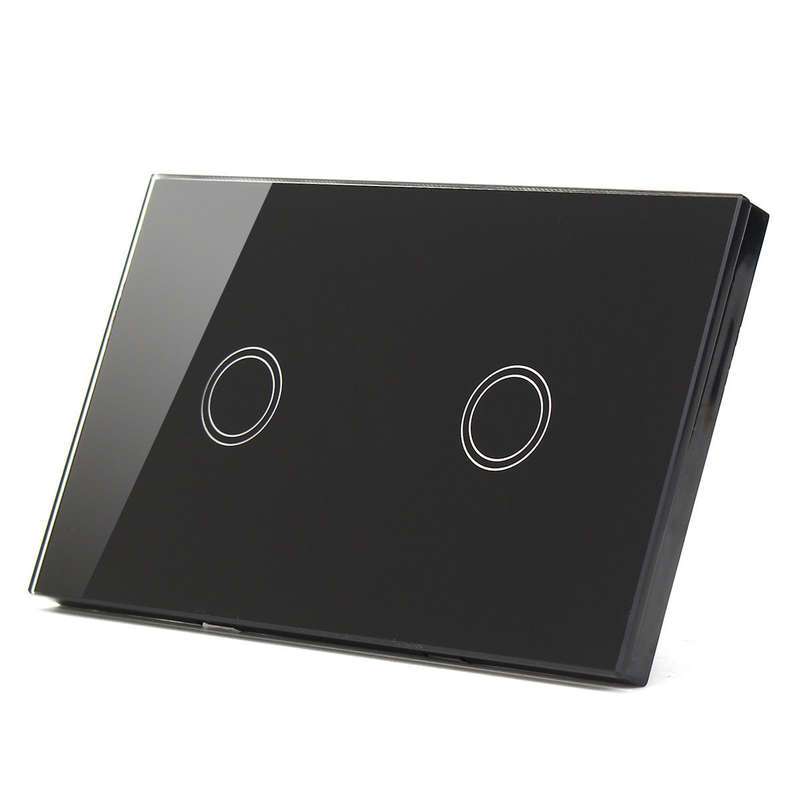

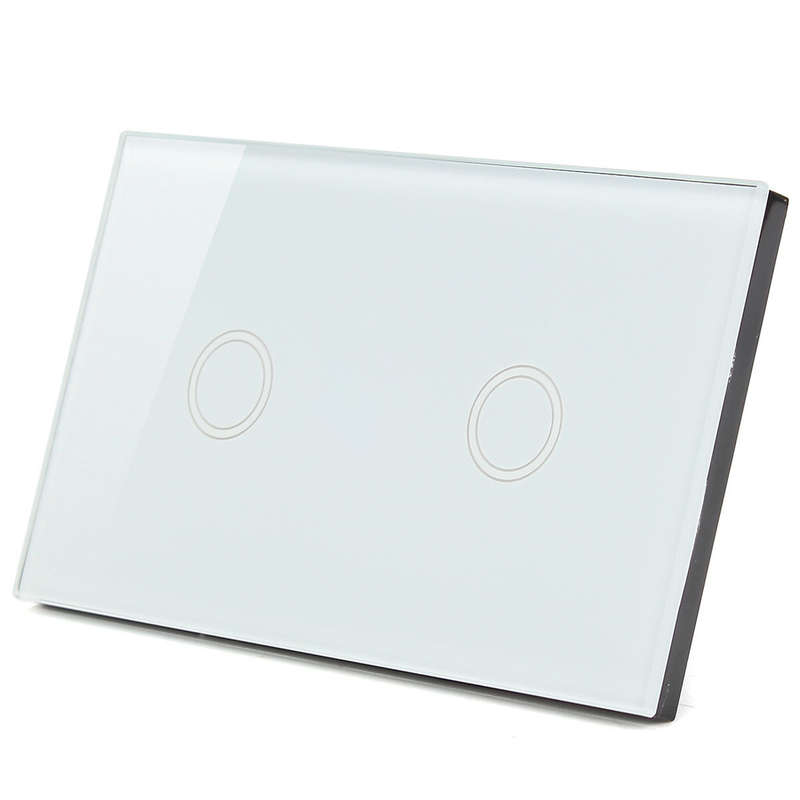

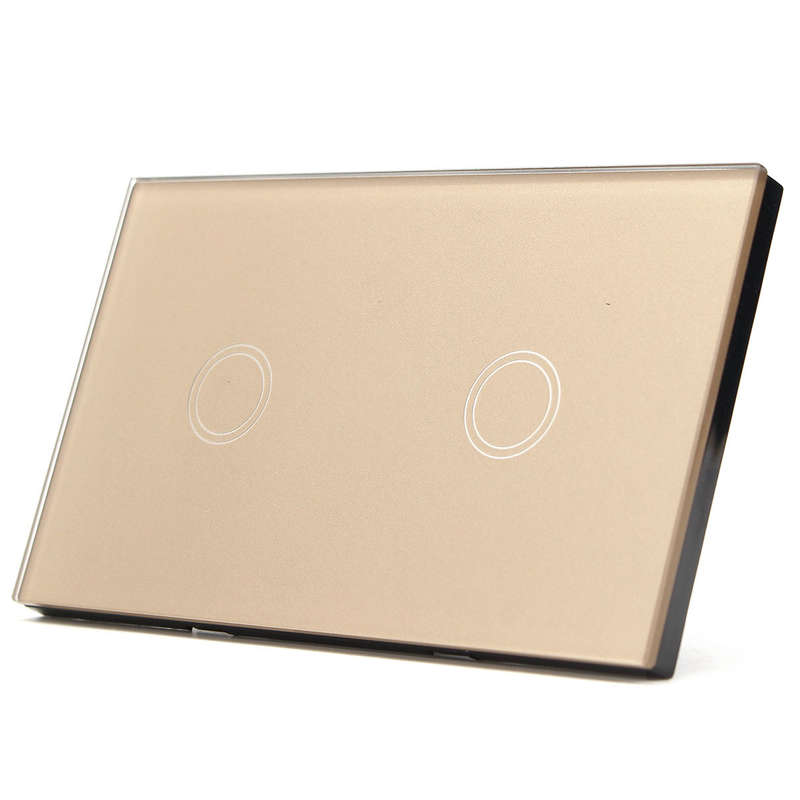

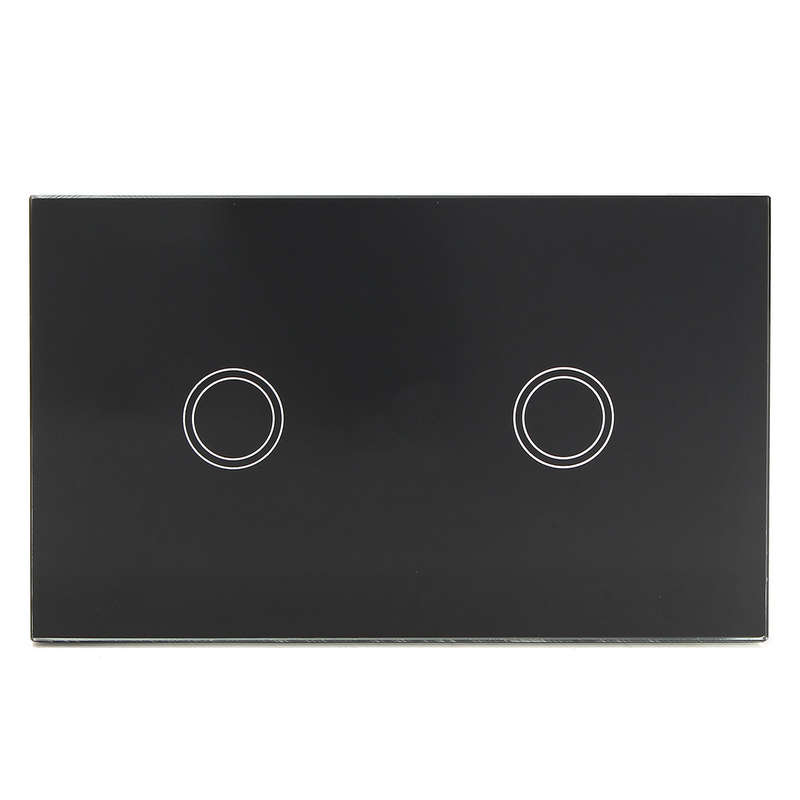

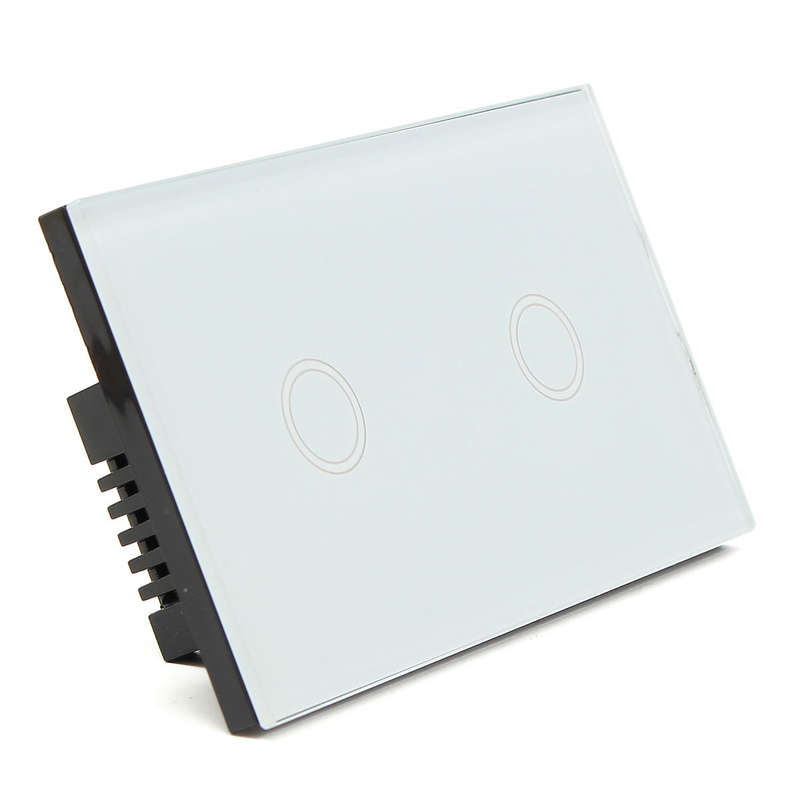

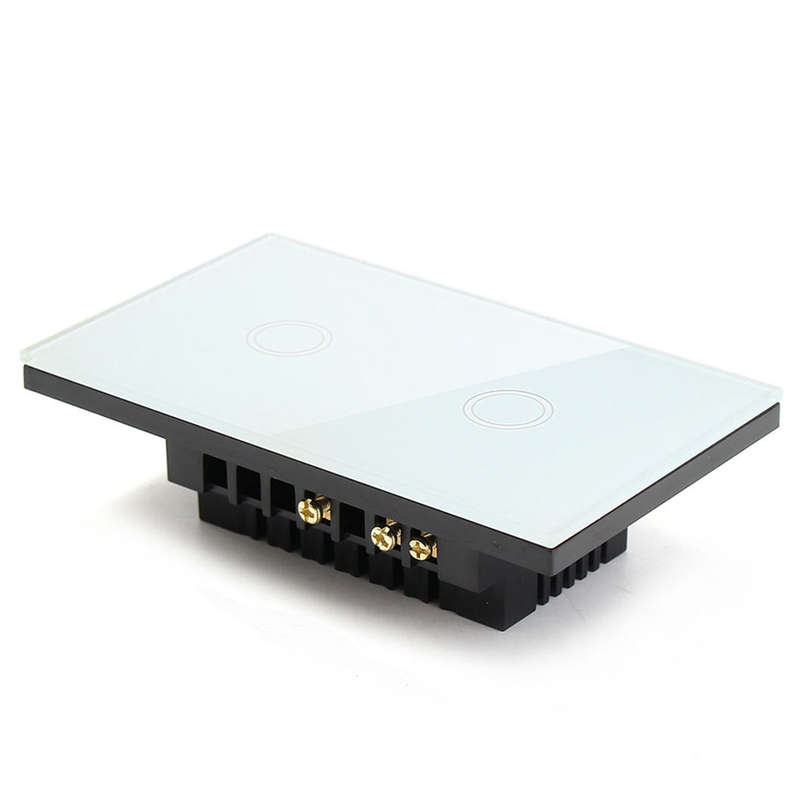

Description: 1 Way 2 Gang Crystal Glass Remote Panel Touch LED Light Switches Controller Luxurious Designs - Exquisite craft,combine wall switch with fashion, crystal great texture, luxurious experience.
Touch Function - Capacitive touch sense, sensitive touch control, feeling like smart cell phone touch. Backlight indicator, more considerate.
Overload Protection - Automatically disconnect the power.
Simple Installation - Installation is as same as normal light switch, so does not require Negative line. Replace traditional wall switch completely and smoothly.
Specification: Material: ABS Panel
Dimension: 120*70*40mm(Length*Width*Height)

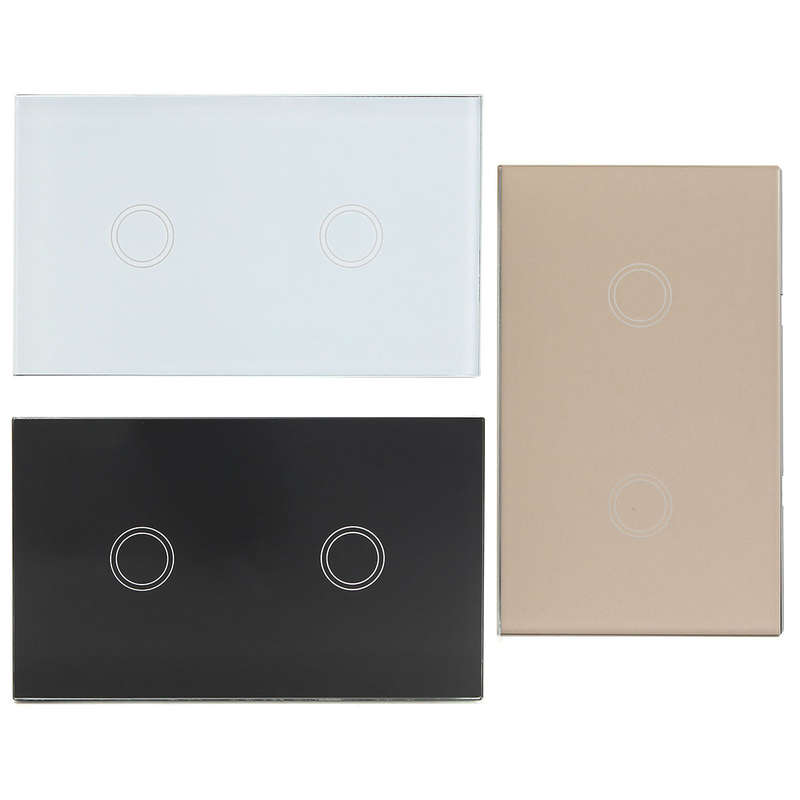

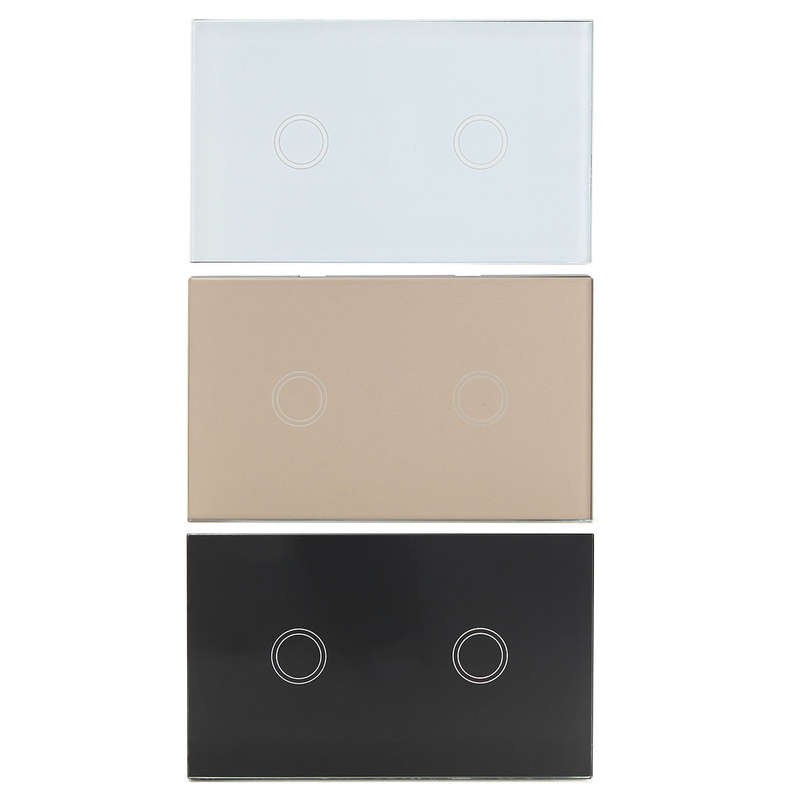

Colour: Black;White;Gold

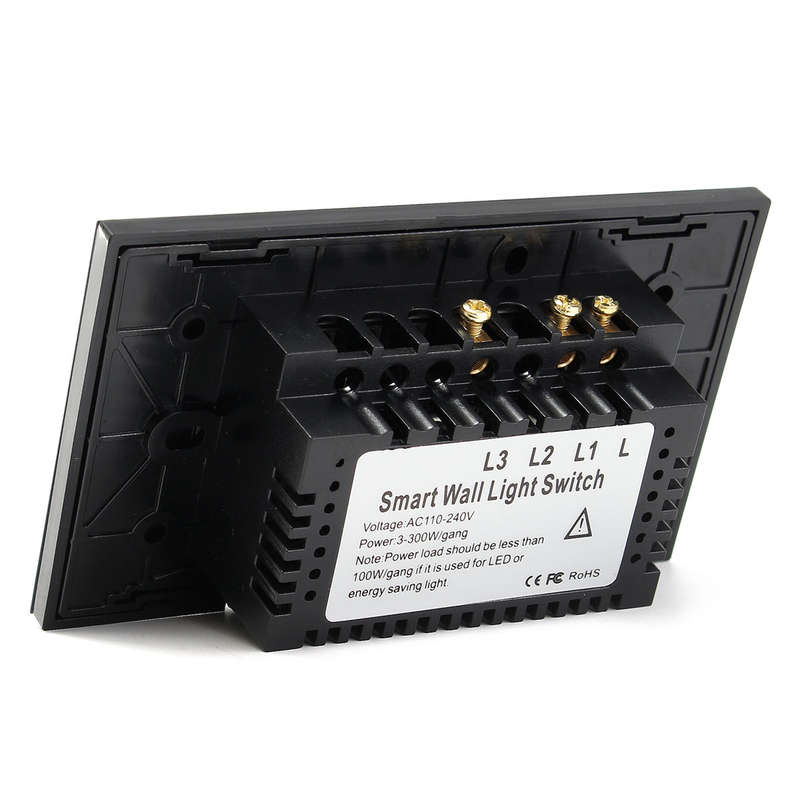

Rated voltage: AC 110V-240V
Load power: 3-300W/gate.total 800W
Withstand temperature: -20a~ + 70a
Frequency: 50/60Hz
Control distance: 2M
rf frequency: 433MHz
Features: Remote Control Learing ,suitable for remote swith series.
1 Single opening and closing method of learing
Press the touch button is not put,will issue a beep,When the sound of the sound,and then press any control key on the remote control,can achieve the control of the opening and closing.
2 Single ON way of learning
The buzzer will beep twice,then press teh remote control,the realization of single Open control.
3 SingleOFF learning mode
When the buzzer sound three,then press the remote control,to achieve s single OFF control.
4 Clear code
When the buzzer sounds four,you can clean the code.
Remark: N Gangs= N Buttons (N= 1,2,3,4 is the number of the Switch button) for one ,two,
three,four lights, please make sure the power of each light is no more than 500W.
1 Way= 1 Switch control one light
2 Ways=2 Switches control one light in two different place .
Kindly Note: For the touch light switch with no remote control, there is no receiver chip inside, it canat be controlled by any remote. So if you want to remote the switch pls choose the touch light switch with remote controller
Notice: - Install the product in the case of power off
- Prohibit the operation of this product with wet hands
- Prevent water, beverages and other liquids enter the product
- Prohibit excessive force or with a sharp instrument to operate this product
Package Included: 1x Smart Wall Light Switch
2x Screw
1x Instruction
