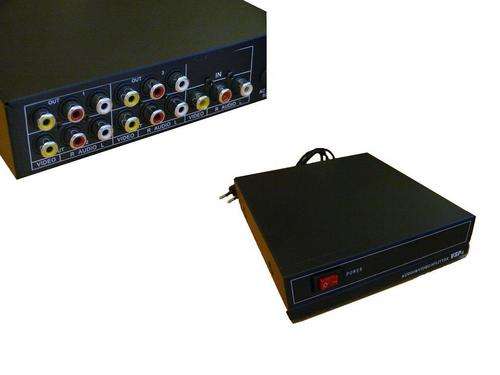

This Composite / RCA signal splitter will split the input signal from a Composite (Yellow RCA) player / source to 4 indentical outputs to be connected to 4 x Composite / AV / Yellow RCA displays. The outputs are syncronized. If the source / player has stereo RCA audio out (Red / White) connectors, the audio will also be split to 4 identical outputs to be connected to the display or individual home entertainment systems.
Techincal Specifications
● Signal :VIDEO (Yellow RCA) AUDIO (Red/White RCA)
● Input port: VIDEO (Yellow RCA) , AUDIO (Red / White RCA)
● Output port : VIDEO (Yellow RCA) , AUDIO (Red / White RCA) x 4
● Video input :1Vp-p
● Video impedance :75Ω
● Video gain : 0db≦DG≦1db
● Audio input :2.2Vp-p/20KΩ
● Audio gain :-3db≦DG≦0db
● AC area:185V-250V 50Hz
● Rated power : 5W
● Operating Environment Temperature : -10℃-40℃
● External Dimensions :167×180×45mm
Warnings :
● To avoid Electrical Shock, do not open the splitter. Refer servicing to qualified personal only.
● Put this device on a place with sufficient ventilation.
● Do not expose the device to high temperatures, high humidity or direct sunlight.
● Before cleaning, power off device. Don’t use chemical wipes.
