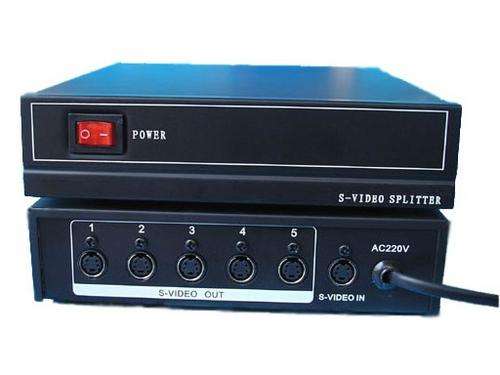

This Svideo signal splitter will split the input signal from a Svideo player / source to 5 indentical outputs to be connected to 5 x Svideo displays. The outputs are syncronized.
Technical Specifications
● Model SVSP4
● Signal :S-video (4-pin Svideo connector)
● Input port: 1 x S-video (4-pin Svideo connector)<
● Output port : 5 x S-video (4-pin Svideo connector)<
● Video input :1Vp-p
● Video impedance :75Ω
● Video gain : 0db≦DG≦1db
● AC area:185V-250V 50Hz
● Rated power : 5W
● Operating Environment Temperature : -10℃-40℃
● External Dimensions :167×180×45mm
Warnings :
● To avoid Electrical Shock, do not open the splitter. Refer servicing to qualified personal only.
● Put this device on a place with sufficient ventilation.
● Do not expose the device to high temperatures, high humidity or direct sunlight.
● Before cleaning, power off device. Don’t use chemical wipes.
Use high quality Surge Protection plugs on your equipment to ensure unstable power from electrical wall socket / electrical surges will have less chance of damaging your equipment. a UPS (Uninterruptible power supply) is highly recommended in all areas of your home or business where LCD's, players and HDMI Equipment is installed.
