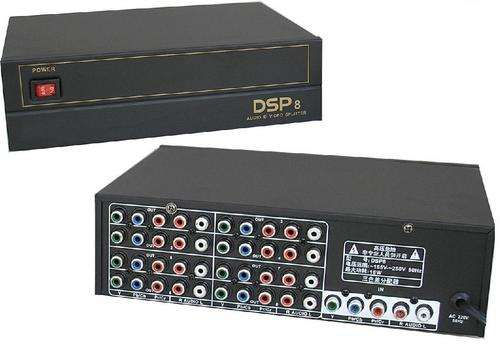

1 X 8 (8-Way) Component / YPbPr Splitter (Powered from 220v socket) with Stereo RCA audio splitting

This Component / YPbPr signal splitter will split the input signal from a Component / YPbPr player / source to 8 indentical outputs to be connected to 8 x Component / YPbPr displays. The outputs are syncronized. If the source / player has stereo RCA audio out (Red / White) connectors, the audio will also be split to 8 identical outputs to be connected to the display or individual home entertainment systems.

Techincal Specifications

● Signal :Y Pb/Cb Pr/Cr / AUDIO(R L)
● Input port: Y Pb/Cb Pr/Cr / AUDIO(R L) 1 Port x RCA
● Output port : Y Pb/Cb Pr/Cr / AUDIO(R L) 8 Port x RCA
● Video input : 1Vp-p
● Video impedance : 75Ω
● Video gain : 0db≦DG≦1db
● Audio input : 2.2Vp-p/20KΩ
● Audio gain : -3db≦DG≦0db
● AC area : 185V-250V 50Hz
● Rated power : 18W
● Operating Environment Temperature : -10℃-40℃
● External Dimensions : 245×180×70mm

Warnings :

● To avoid Electrical Shock, do not open the splitter. Refer servicing to qualified personal only.
● Put this device on a place with sufficient ventilation.
● Do not expose the device to high temperatures, high humidity or direct sunlight.
● Before cleaning, power off device. Don’t use chemical wipes.

Use high quality Surge Protection plugs on your equipment to ensure unstable power from electrical wall socket / electrical surges will have less chance of damaging your equipment. a UPS (Uninterruptible power supply) is highly recommended in all areas of your home or business where LCD's, players and HDMI Equipment is installed.
