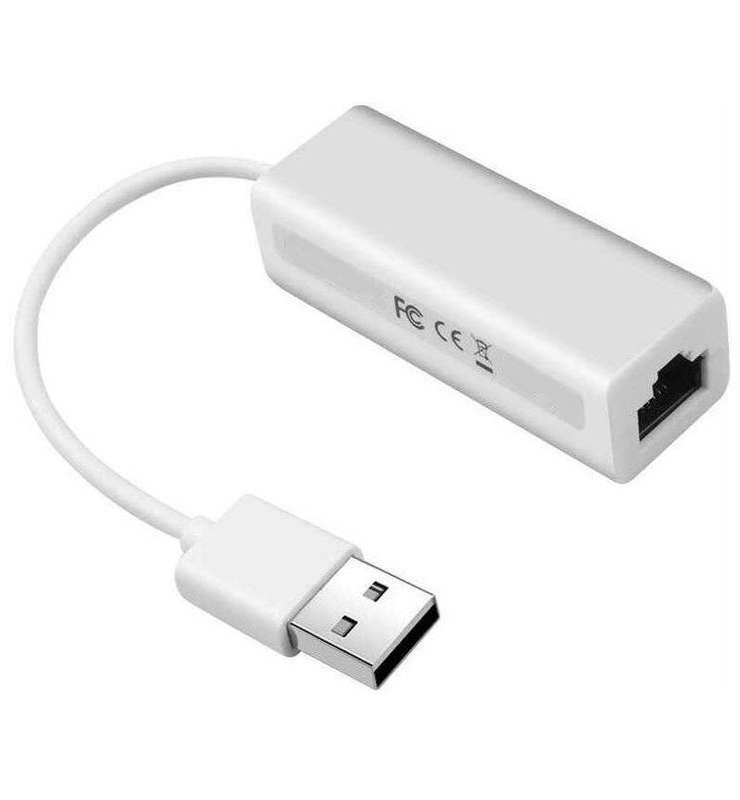

10/100 USB LAN - TXA041
Model number: TXA041
Chipset Realtek: RTL8152B
Port number: 1 x RJ45
Standard: IEEE 802.3x,IEEE 802.3,IEEE 802.3u,IEEE 802.1P, IEEE 802.1Q VLAN tagging
IEEE 802.3az-2010 (EEE)
Network media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP
Data rate: 10/100Mbps
Interface: USB2.0
Color: Black, white
LED Indicator: 10/100Mbps(Link/Act)
Dimension: 70 x 32.5 x 17mm,USB cable:150mm
Support OS
Windows 10 8.1 8 32-bit 64-bit Plug in Play Native Driver No installation Needed
Windows 7 Vista XP Compatible
Environment
Operating Temperature: 0 ?-55 ?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -0?-80?
Relative Humidity: 5%-90%(non-condensing)
plug and play
Wake-On-LAN
Flow control
Other features
Auto-Negotiation with Next Page capability
Selective suspend
Remote wake-up
ECMA
Half Duplex and Full Duplex Mode
Feature:
Hardware
Integrated 10/100M transceiver
Auto-Negotiation with Next Page capability
Supports USB 2.0 and 1.1
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-Correction
Supports Wake-On-LAN and �RealWoW!� (Wake-On-WAN) Technology (see note 1)
Supports ECMA-393 ECMA ProxZzzy Standard for sleeping hosts (see note 1)
XTAL-Less Wake-On-LAN
Supports 25MHz or 48MHz external clock (from oscillator or system clock source)
Supports power down/link down power saving
Transmit/Receive on-chip buffer support
Embedded OTP memory
Built-in linear regulator (LDO)
Supports Customizable LEDs
Controllable LED Blinking Frequency and Duty Cycle
Supports hardware CRC (Cyclic Redundancy Check) function
LAN disable with GPIO pin
Supports LPM (Link Power Management)
SPI Flash Interface
Supports link change wake up
Supports Microsoft WPD (Wake Packet Detection)
Supports 16-set 128-byte Wake-Up Frame pattern exact matching
Supports CDC-ECM
48-pin QFN �Green� package
Software Offload
Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send
v1 and Large send v2) support
Supports Protocol Offload (ARP & NS)
