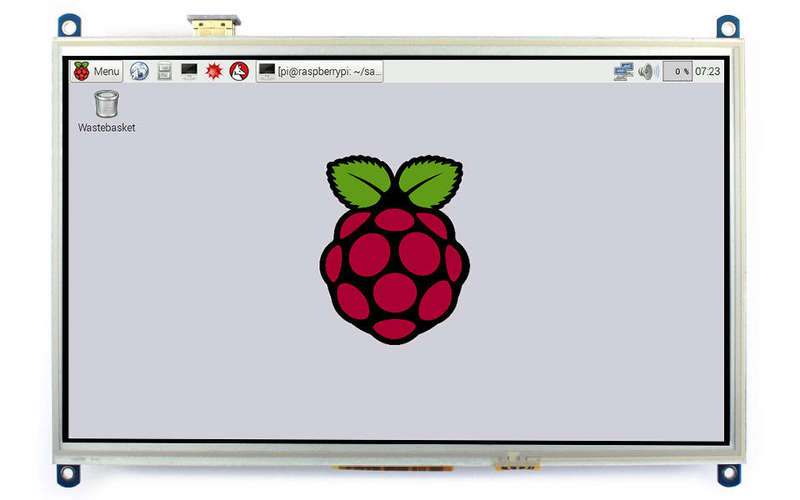

10.1inch Resistive Touch Screen LCD, 1024×600, HDMI, IPS, Supports Raspberry Pi / PC

10.1inch Resistive Touch Screen LCD, HDMI interface, Designed for Raspberry Pi

Features

• 10.1inch IPS screen,1024 × 600 high resolution.

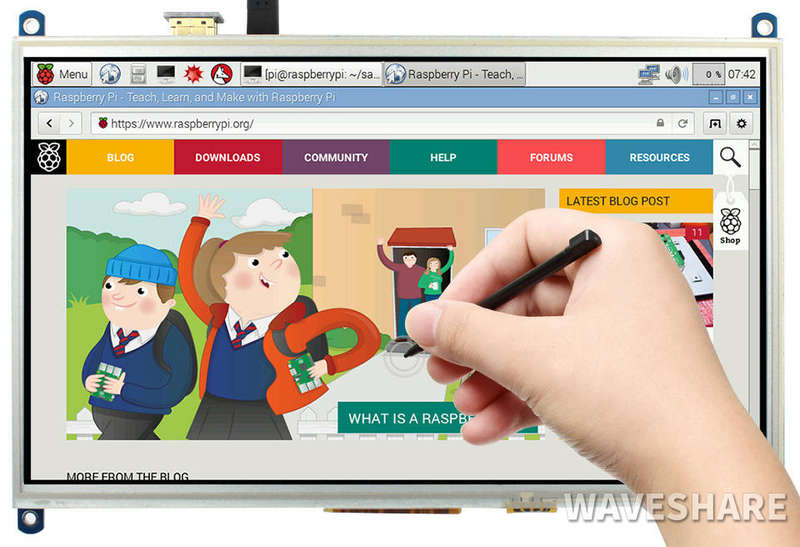

• Resistive touch control.

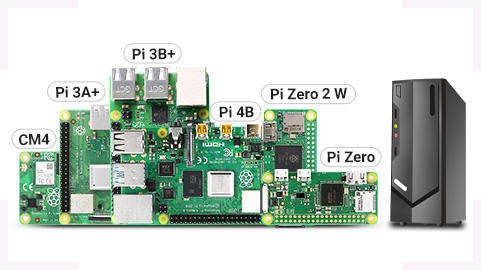

• Compatible and Direct-connect with any revision of Raspberry Pi (If you are using a Raspberry Pi Zero / Zero 2 W, an additional HDMI cable is required).
• Supports Raspberry Pi OS / Ubuntu / Kali and Retropie systems.
• Also works as a computer monitor, and an HDMI cable is required.
• HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os).
• Support backlight control, saving more power.

Hardware Connection

    1. Connect the GPIO interface

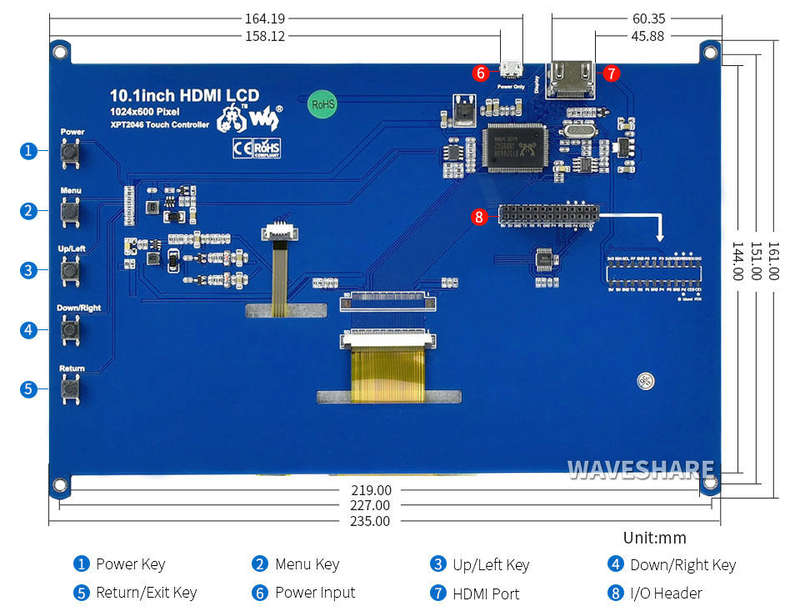

Raspberry Pi leads out 40 GPIO pins, while the screen leads out 26 pins. When connecting, pay attention to the corresponding pins and Raspberry Pi pins.

    2. Connect the HDMI connector to the HDMI port of the screen and the Pi.
