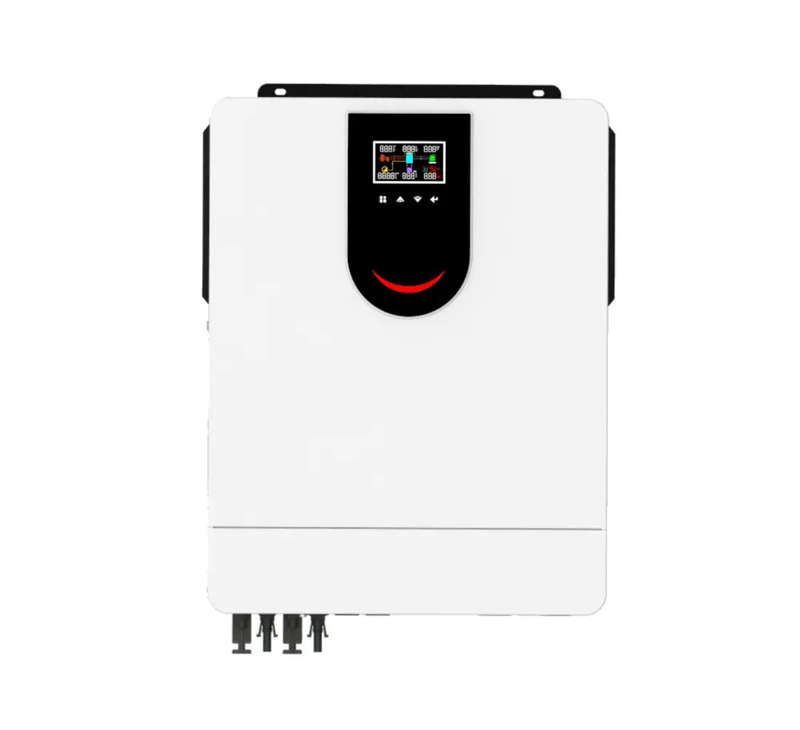

10.2 KVA 10200 Watt Hybrid On/Off Grid Inverter MPPT 48V- Conderenergy S-2100

10.2 KVA 10200 Watt Hybrid On/Off Grid Inverter MPPT 48V- Conderenergy S-2100

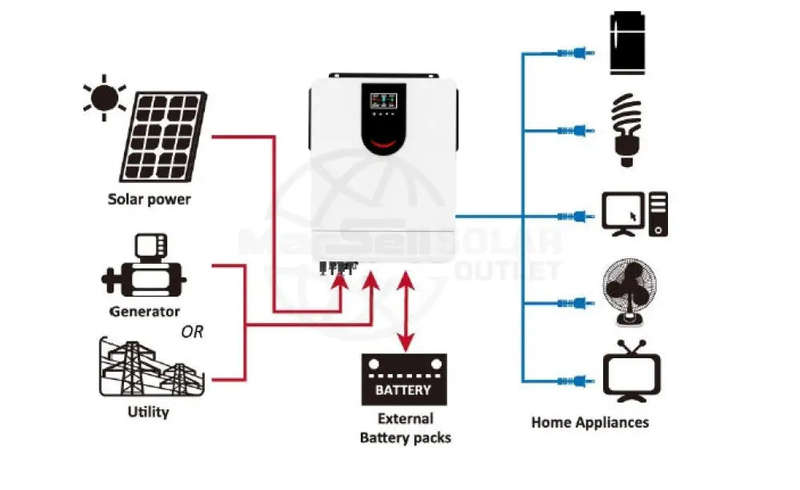

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Hybrid Solar Inverter Features:

• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting
• Configurable AC/Solar Charger priority via LCD setting
• Compatible with mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function

PV INPUT:
Max. PV Array Open Circuit Voltage 500Vdc
PV Array MPPT Voltage Range 90Vdc~450Vdc

RGB Light
Battery Mode: Red Light
Utility Mode: Blue Light
PV Mode: Purple Light

GRID/AC OUTPUT:
Nominal Output Voltage 220/230/240Vac Feed-in Grid Voltage Range 195-253Vac Feed-in Gnd Frequency Range 49-511Hz Nominal Output Current: 15 7A Power Factor Range >0.99
Maximum Conversion Efficiency (DC/AC).97% Nominal Operating Frequency 50/60Hz

TWO LOAD OUTPUT POWER:

Full Load 10200W
Maximum Main Load 10200W
Maximum Second Load 3400W

Size:

555 X 405 X 135

14.5Kg

What's in the box
1 x Inverter
1 x User Manual
