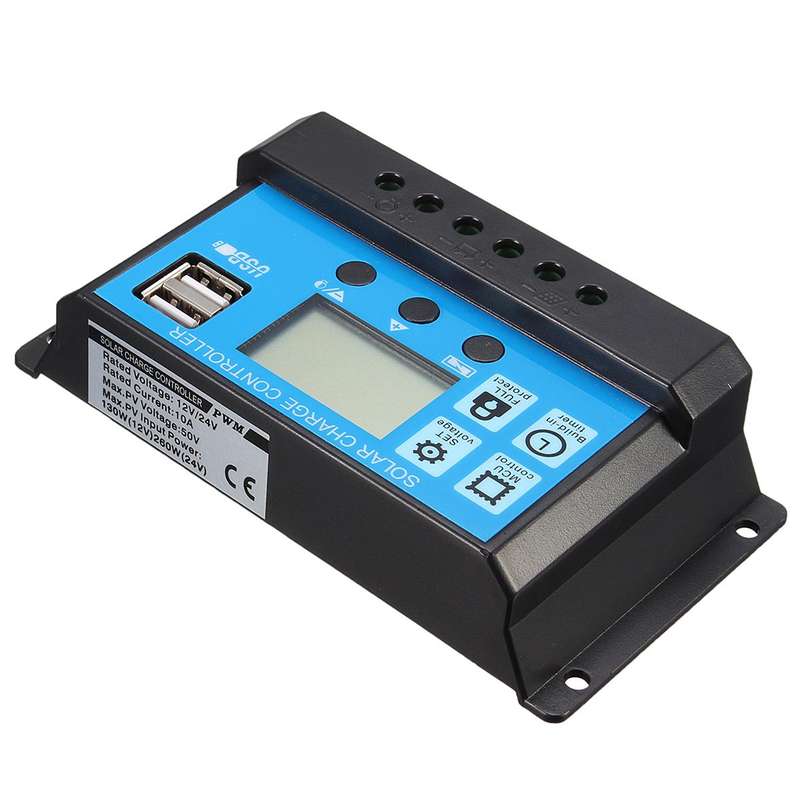

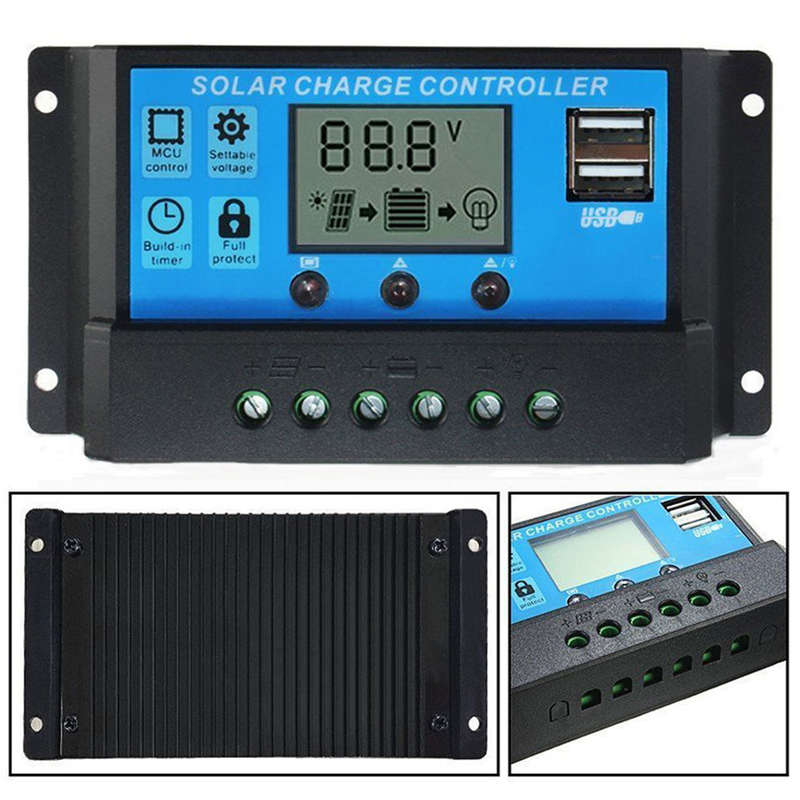

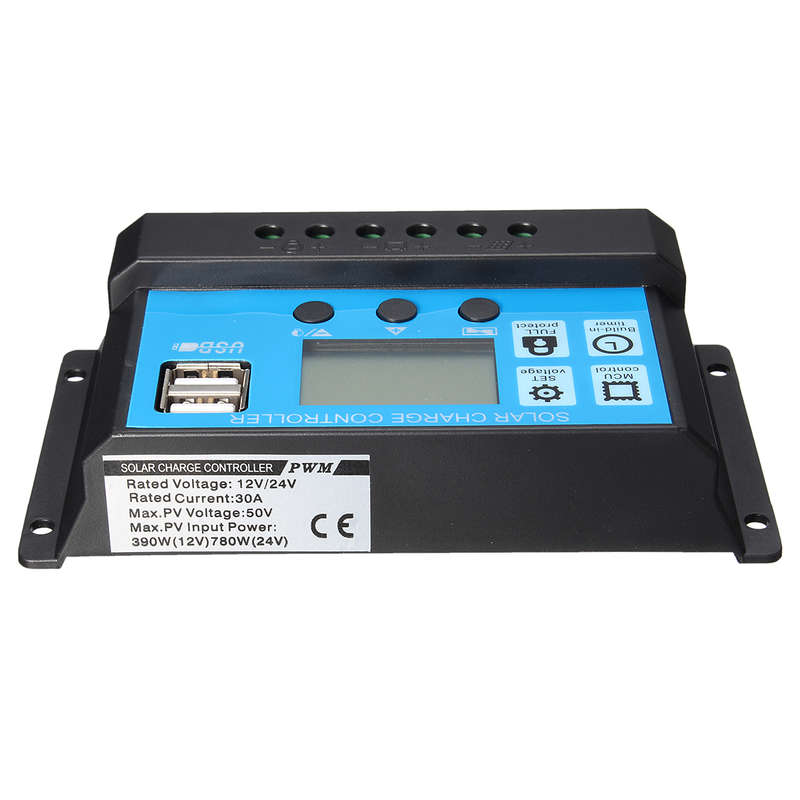

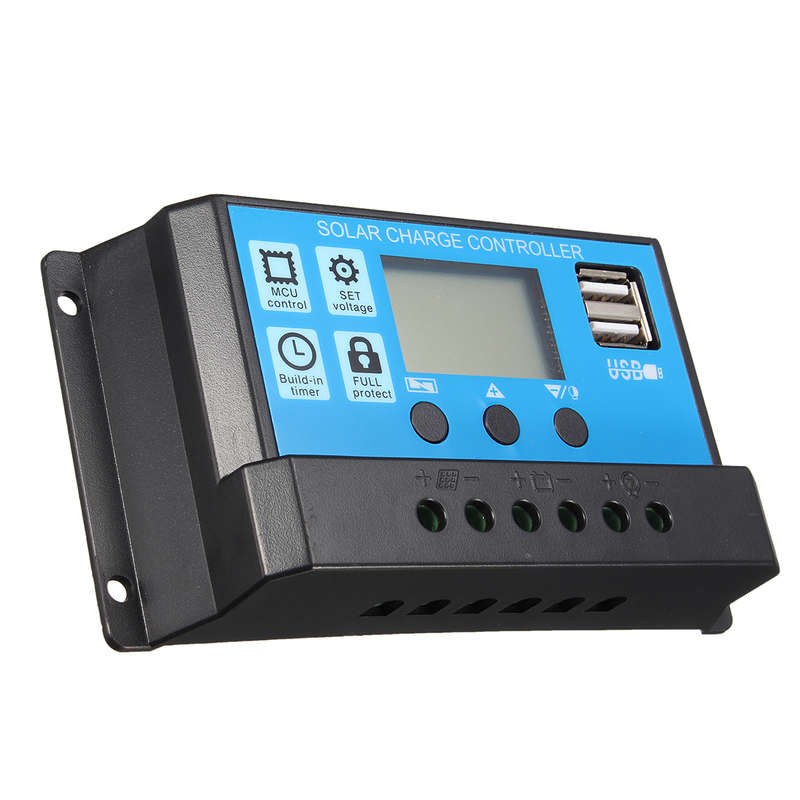

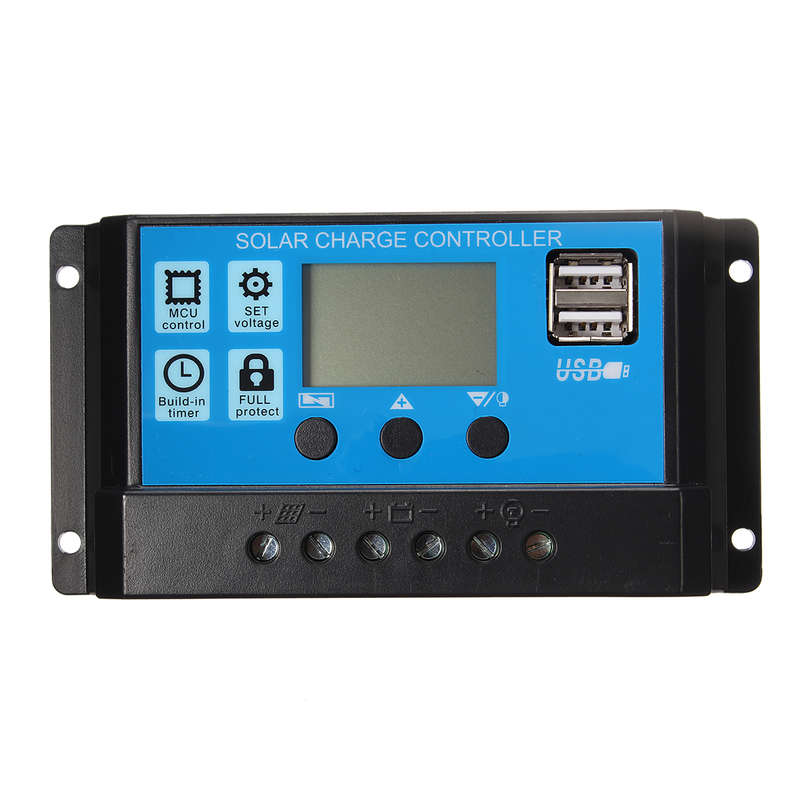

10/20/30A USB Solar Panel Battery Regulator Charge Intelligent Controller 12/24V (CURRENT: 10A)

SELECTED OPTION:
CURRENT: 10A

Features:

1. Build-in industrial micro controller.
2. One-key setting,LCD display,auto memory function.
3. Fully 3-stage PWM charge management.
4. Build-in short-circuit protections,open-circuit protections,reverse protections,over-load protections.
5. Dual MOS Reverse current protections ,low heat productions.

Parameters:

1. Color:Black
2. Size:App 150*78*35mm
3. Rated Voltage: 12V 24V Auto
4. Current: 10A, 20A, 30A
5. Standby current:<10mA

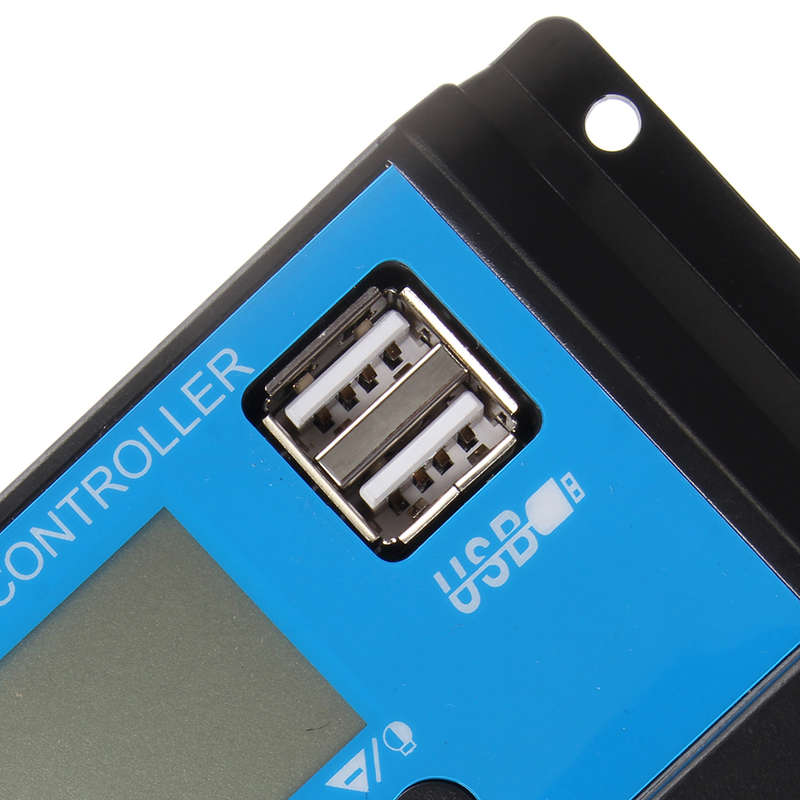

6. USB Output Voltage:5V/3A
7. Operating temperature:-35~+60a
8. Application:Camping/Hiking
9. With Timer and light sensor,it could work for solar light system.

Safety instruction:

1. Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2. The battery cable should be as short as possible to minimize loss.
3. The regulator is only suitable for Lead Acid Batteries: OPEN,AGM, GEL. It is not suited for Nickel Metal Hydride, Lithium Ions or Other Batteries.
4. The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

Connection:

1. Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2. Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus. The reverse order applies when deinstalling! An improper sequence order can
damage the controller!

Note:

Only For off-Grid PV Solar System.
For 10A 12V Pv System: 120W Solar Panel,12V Lead-acid Battery,21V for Max input Voltage
For 10A 24V Pv System: 240W Solar Panel,24V Lead-acid Battery,42V for Max input Voltage

Here is the (a )for your reference.
The more info you can refer (click a) to know.

Package included:

1 x Solar panels Battery Charge Controller
