Introducing our 10.2 Conderenegry Plug and Play system, engineered for effortless use and enhanced by a state-of-the-art 5.12 lithium battery. Plug and play systems prioritize simplicity and convenience, enabling users to connect and operate devices with minimal effort. Our system guarantees seamless functionality, allowing you to power up effortlessly without the need for intricate installations or configurations. Whether you're new to technology or experienced, our plug and play design ensures a smooth experience, effortlessly integrating into your daily activities.
The perfect solution for load shedding!

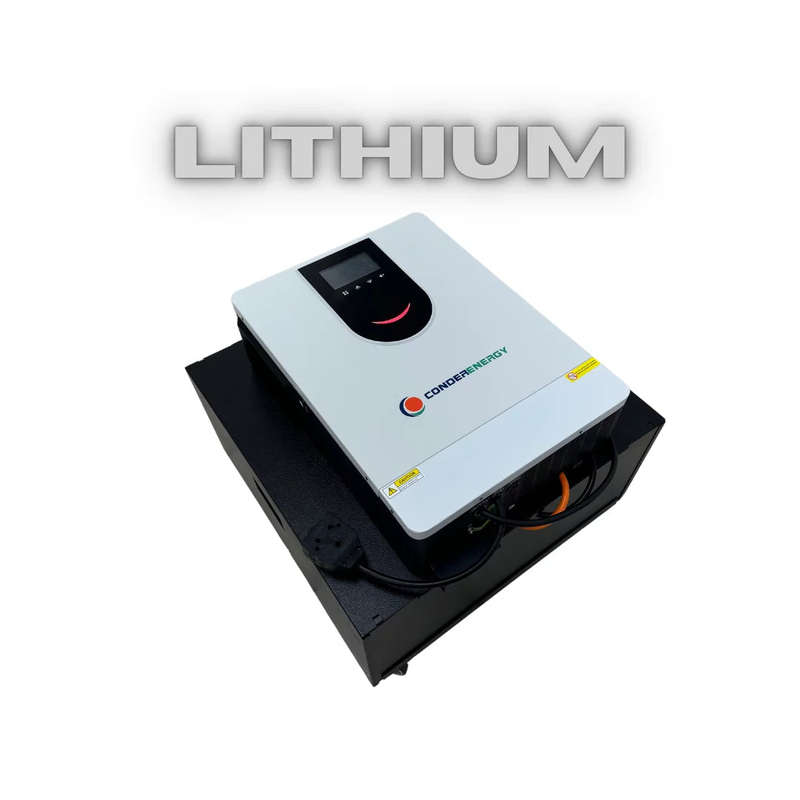

The all-in-one portable plug & play inverter battery trolley system (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.
What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 100w which is usually a TV, Wifi, Lights, etc. This portable system will last 45-50 Hours With a 100% DOD.
Features;
Features
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible with mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
PV INPUT:
Max. PV Array Open Circuit Voltage 500Vdc
PV Array MPPT Voltage Range 90Vdc~450Vdc
RGB Light
Battery Mode: Red Light
Utility Mode: Blue Light
PV Mode: Purple Light
GRID/AC OUTPUT:
Nominal Output Voltage 220/230/240Vac Feed-in Grid Voltage Range 195-253Vac Feed-in Gnd Frequency Range 49-51±1Hz Nominal Output Current: 15 7A Power Factor Range >0.99
Maximum Conversion Efficiency (DC/AC).97% Nominal Operating Frequency 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load 10200W
Maximum Main Load 10200W
Maximum Second Load 3400W
Battery Specifications:
SVOLT 51.2V 106Ah 5.43 kWh A-Grade Wall Mount Lithium Battery (Square)
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVOLT 48V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
| Energy | 5.43kWh |
| Installation Type | Wall Mounted |
| Battery Type-Chemistry | LiFePO4 |
| Norminal Voltage | 51.2V |
| Norminal Capacity | 106Ah |
| Dimensions(LxWxH) | 510*475*160mm |
| Weight（Approx.） | 45.6KGS |
| Terminal Type | Fast Plug In & Plug Out |
| Case Material | SPCC |
| BMS Build-in | Yes |
| Internal Resistance | <25m |
| Efficiency Round Trip | >97% |
| Self Discharge Per Month | <3% |
| Max Parallel Connectors | 16Pcs |
| Series Connections | Not Allowed |
| Cycle Life(0.3C,25°C@90%DOD) | >6,000 cycles |
| Discharge Temperature | -20°C to 70°C |
| Charge Temperature | -5°C to 65°C |
| Storage Temperature | 0°C to 30°C |
| Bluetooth(App) | Optional |
| LCD Screen | Yes |
| Heating Function | Optional |
| Operating Voltage Range | 43.2V-57.6V |
| Recommend Charge Voltage | 56.0V±0.2V |
| Max Charge Voltage | 58.4V±0.2V |
| Recommend Charge Current | 50A |
| Max Continuous Charge Current | 100A |
| Recommend Discharge Voltage | 44.8V±0.2V |
| Max Discharging Voltage | 43.2V±0.2V |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 150A（100ms） |
WEIGHT
+- 60KG
This system is equipped with the following:
1x PORTABLE STEEL BOX WITH 2x LOCK WHEELS
1x SURGE PLUG ON 1m POWER CABLE (2.5mm cabtyre)
1x DOUBLE SIDED FEMALE PLUG SOCKET
1x FUSE + DISCONNECTOR (battery to inverter)
1x BATTERIES AND INVERTER MENTIONED IN THE TITLE
SIZE
60 cm x 60 cm x 45 cm
(This box is upgradeable and can take another battery)
