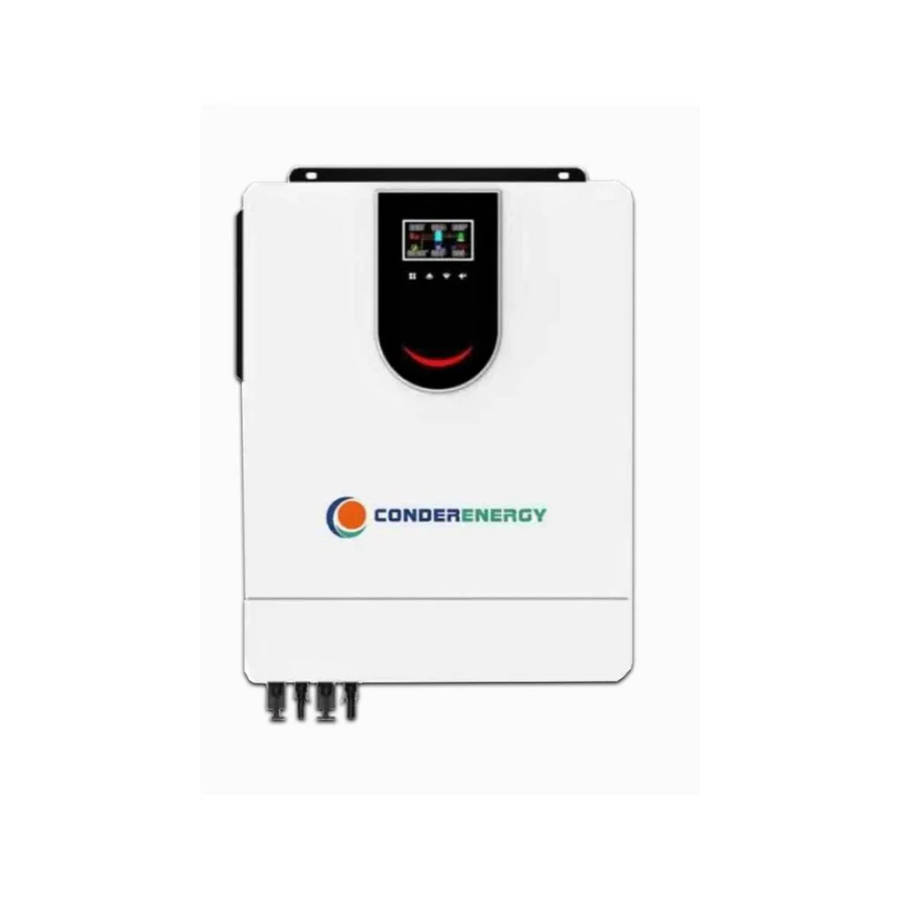

10.2KVA / 10200W Conderenergy Hybrid Inverter MPPT

ConderEnergy Hybrid On/Off Grid Inverter 10.2KVA 10.2KW MPPT 48V- ConderEnergy S-2100

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features:

• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting Configurable battery charging.
• Current based on applications via LCD setting
• Configurable AC/Solar Charger priority via LCD setting
• Compatible with mains voltage or generator power
• Auto restart while AC is recovering.
• Overload/ Over temperature/ short circuit protection.
• Smart battery charger design for optimized battery performance
• Cold start function

Specifications:

PV INPUT:

• Max. PV Array Open Circuit Voltage 500Vdc
• PV Array MPPT Voltage Range 90Vdc~450Vdc

RGB Light

• Battery Mode: Red Light
• Utility Mode: Blue Light
• PV Mode: Purple Light

GRID/AC OUTPUT:

• Nominal Output Voltage 220/230/240Vac Feed-in Grid Voltage Range 195-253Vac Feed-in Gnd Frequency Range 49-51±1Hz
• Nominal Output Current: 15 7A Power Factor Range >0.99
• Maximum Conversion Efficiency (DC/AC).97% Nominal Operating Frequency 50/60Hz

TWO LOAD OUTPUT POWER:

• Full Load 10200W
• Maximum Main Load 10200W
• Maximum Second Load 3400W

Dimensions and Weight:

• Dimensions: 555 X 405 X 135mm
• Weight: 14.5Kg

What's in the box?

• 1 x Inverter
• 1 x User Manual

Note:

Wi-Fi dongle not included.

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
