Contents of kit:

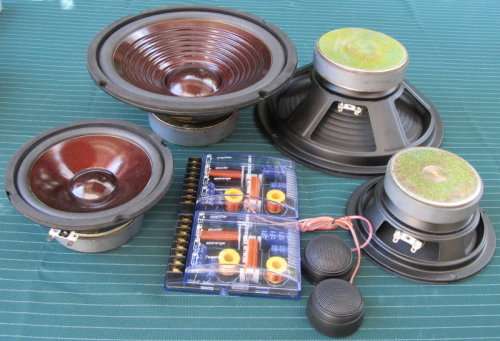

The 3-way component car speaker split kit consists of:
2 x 10" Paper cone woofers with foam surround, 1.5" 4 Ohm voice coils. 100-150 Watt continuous power handling.
2 x 6.5" Paper cone woofers with foam surround, 1" 4 Ohm voice coils. 50-100 Watt continuous power handling.
Metallic look maroon plasticised coating on woofer cones.
2 x Round 4 Ohm dynamic tweeters, adjustable type (spring loaded swivel mechanism) Each tweeter
has 500mm speaker wire attached. Back can be removed for easy mounting.
2 x 3-way x-overs in plastic enclosures
Dimensions:
10" Woofer frame outer diameter 254mm 10" Woofer cut-out required diameter 231mm
10" Woofer mounting depth (from panel surface to back of magnet) 98mm
10" Woofer bolt circle diameter 241mm
6.5" Woofer frame outer diameter 165mm 6" Woofer cut-out required diameter 145mm
6.5" Woofer mounting depth (from panel surface to back of magnet) 69mm
6.5" Woofer bolt circle diameter 156mm
Tweeter casing diameter 54mm
Tweeter mounting screws hole diameter 4mm
Tweeter mounting screw spacing 35mm
X-over enclosure dimensions, each (l) 130mm x (w) 85mm x (h) 38mm
Weight: 8kg
Securely packed in plain unbranded cardboard box for safe shipping.
