Features:
- Controller capable of charging three kinds of batteries (lead acid, lithium ternary, lithium iron phosphate)
- Multiple intelligent security protection, bid farewell to security risks, protect the security of the system
- LCD display, intuitive, easy to use
- Dual USB output interface, digital standard port, compatible with all kinds of digital USB interface on the market
- Large load connection port can effectively reduce circuit voltage drop and loss
- SOC intelligent control, based on expert controller system, realizes intelligent optimization SOC control
Specifications:
- Style(Option): CPLS-10A / CPLS-20A / CPLS-30A / CPLS-40A / CPLS-50A / CPLS-60A
- Size: About 133x70x35mm / 5.24'x2.76'x1.38'(CPLS-10A / CPLS-20A / CPLS-30A); 186x90x43mm / 7.32'x3.54'x1.69'(CPLS-40A / CPLS-50A / CPLS-60A).
- Rated Charging Current: 10 / 20 / 30 / 40 / 50A / 60A (CPLS-10A / CPLS-20A / CPLS-30A / CPLS-40A / CPLS-50A / CPLS-60A)
- Rated Discharge Current: 10A(CPLS-10A / CPLS-20A / CPLS-30A), 20A(CPLS-40A / CPLS-50A / CPLS-60A)
- Battery Type: Lead Acid Battery / Lithium Ion Battery (ternary lithium) / Lithium Iron Phosphate Battery
- Standby Current: < 10mA
- Working Temperature: - 35 C ~ + 60 C
- USB Output: 2-way USB Output, Maximum 5V / 2A
- Maximum Photovoltaic Voltage: When 12V battery, the maximum voltage is 23v; when the battery is 24V, the maximum voltage is 46v.
System Connection :
1. Connect the positive and negative electrodes of the battery to the controller according to the diagram, and the controller will automatically detect the battery voltage
2. Connect the positive and negative poles of the load into the controller according to the diagram, and be careful not to connect them in reverse
3. Connect the solar panel to the controller
Charging Cut-off Voltage :
Lead-acid battery: Default value 14.4V (not adjustable), ternary lithium battery: default value 12.6V (not adjustable), lithium iron phosphate battery: Default value 14.6V (not adjustable)
Discharge Recovery Voltage :
Lead-acid battery: Default value 12.6V (adjustable 11.5V-13V), ternary lithium battery: default value 10.5V (adjustable 10V-11V), lithium iron phosphate battery: default value 12.0V, adjustable 11.5V-12.5V )
Discharge Cut-off Voltage :
Lead-acid battery: Default value 10.7V (adjustable 9.5V-11.5V), ternary lithium battery: default value 9.0V (adjustable 8.5V-9.5V), lithium iron phosphate battery: default value 10.0V (adjustable 9.5V-10.5)
Floating Voltage :
Lead-acid battery: Default value 13.7V (adjustable 13V-15V), ternary lithium battery: default value 12.0V (adjustable 11.5V-12.5V), lithium iron phosphate battery: default value 13.8V (adjustable 13V-14.5V)
Package includes:

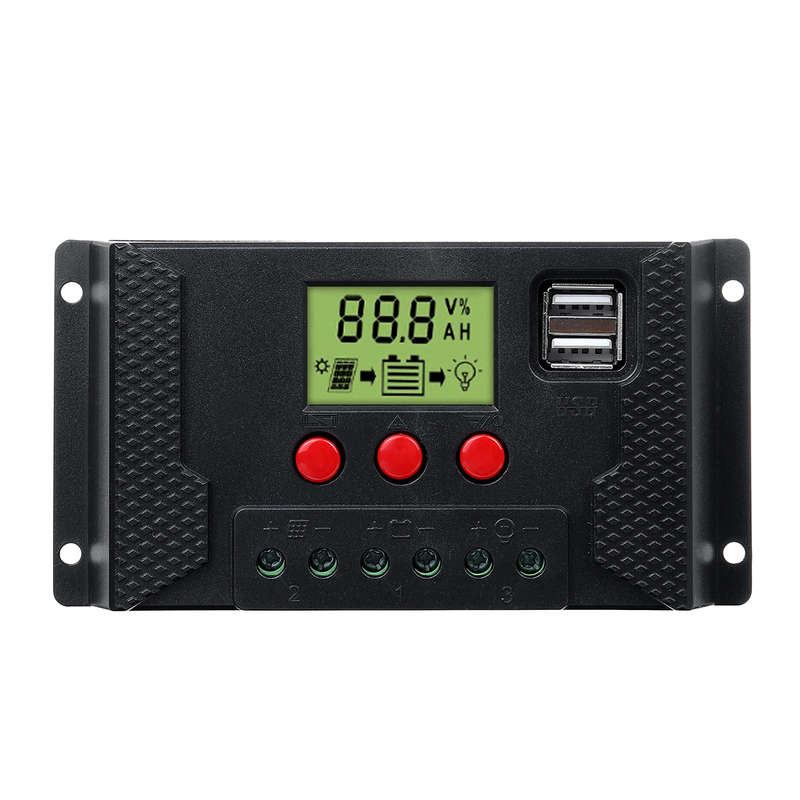

- 1 x PWM Solar Charger Controller
- 1 x User Manual
