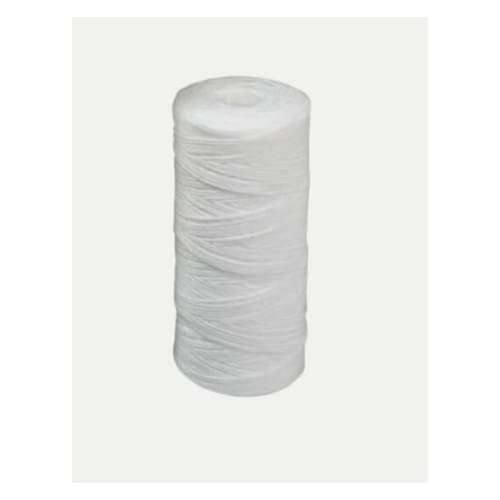

10" Big Blue String Wound Sediment Filter

• STRING WOUND SEDIMENT FILTER


String wound filter cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration for high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility.

The main advantage of the string wound filter is its exceptionally high structural strength ;therefore, they can withstand severe operating  conditions

Features

• Fits all the standard housings
• Low pressure drop,high dirt holding capacity and long service life
• Loose outer layers and tight innerl ayers offers effective depthfiltration
• Various filter media fit with various applications

Applications

• Food&Beverage
• Semi conductor
• Pharmaceuticals
• Electric Plating
• DI&ROpretreatment

Specifications

• Filtermedia:Polypropylene,FibrillatedPolypropylene,Cotton,GlassFibre
• Outsidediameter:55mm,61mm,63mm,65mm,115mm
• Innerdiameter:28mm,30mm
• Length:10",20",30",40"
• MicronRating(micron):5,10,20,30,50,75,100
• Polypropylene material for non-organic solvent,maximum recommended Operating temperature<70degreeC
• Bleached cotton material filter cartridge with stainless core apply to organic solvent,water,oil,alkalinity solvent,beverage,pharmaceuticals,maximum Recommended operating temperature:120degreeC
