10 Meter HDMI to HDMI 1.3a Category 2 Cable 24AWG - Black (Gold Plated)

This CABLE is For:

- Any Device with an HDMI Interface (Backwards Compatible to HDMI V1.0)
- To Connect any BLU-RAY / HD DVD to a LCD TV to provide Audio / Video travelling via the same cable for HD Video/Audio
- Connect your XBOX 360 / PS3 Gaming Console to a LCD TV with an HDMI interface (Provides high 1080p resolutions)
- To connect current DVD players with an HDMI interface to a LCD TV to Allow Upscaling of normal DVD resolution to 1080p

Specifications & Features

Connector Type: HDMI male to HDMI male
Connector Finish: Gold
Gauge: 24 AWG
# of conductors: 19
Shielding level: Triple
Shielding type: EMI
Ferrite Cores: Yes
Supported Resolutions: 480i to 1080p
Bandwidth: up to 340 Mhz
HDMI Certified: Yes
HDMI Spec: 1.3a
HDCP Compliant: Yes
CEC Compliant: Yes
ROHS Compliant: Yes
1.3 Device Compatible: Yes
Supports DVD Audio: Yes
Supports SACD: Yes
Supports TrueHD & DTS-HD: Yes

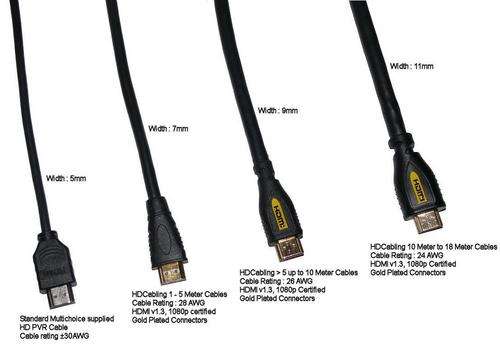

Overall Diameter: 11mm

UL Specs

CL2 (In-Wall): No
Voltage Rating: 30V
Temperature Rating: 80° C

To extend HDMI cables use the HDMI Coupler / Socket - Female to Female (Gold Plated Connectors)

Some sources / players do not produce an equalized HDMI signal and for coupling or extending HDMI Cable lengths beyond 10 meters we recommend that a HDMI Active Equalizer Extender / Repeater be used rather than a HDMI Coupler.

For lengths exceeding 20 meters we recommend either of the following products HDMI Extender CAT-5e / CAT-6 w/Tx + Rx (30m 1080p) or HDMI Super Extender CAT6 w/Tx + Rx (50m-60m 1080p)

This cable is 24 AWG (American Wire Gauge) rated and can reach longer distances up to 25 - 30 Meters with a HDMI Active Equalizer Extender / Repeater. 24 AWG HDMI Cables have a thicker core than our 28AWG rated cables to ensure lower signal quality loss at longer distances. HDMI CABLES AND EQUIPMENT SHOULD NEVER BE CONNECTED / DISCONNECTED WHILE YOUR EQUIPMENT IS POWERED ON SINCE THE HDMI PORT CARRIES A LOW VOLTAGE BUT CAN CAUSE DAMAGE TO EQUIPMENT WHEN PLUGGED / UNPLUGGED WHILE POWERED ON. The sequence below should be followed when installing new cables or equipment between source/player and LCD / Plasma.

1.) Power-off all equipment (At the wall socket).
2.) Connect all Cables, Splitters, Switches, Extenders within HDMI Distribution Network.
3.) Power on all Splitters, Switches, Extenders within HDMI Distribution Network.
4.) Power on all LCD / Plasma's and set to HDMI input from HDMI Distribution Network.
5.) Power on Sources / Players (Sources negotiates HDCP Handshake via HDMI Network to displays which is set to HDMI input to respond to handshake).

HDMI has become the new standard in Home Entertainment and Digital Audio & Video.

Please check the HDMI Standards & Specifications section on our website to check what the different versions in HDMI offers regarding picture, sound quality, resolution, colour quality etc.

Please check the Home Entertainment Wiring Diagram section on our website for common uses of this cable and for alternative wiring options.

The latest revision for HDMI (1.3) doubles the bandwidth of the original and has opened the door for a host of potential new advancements in Home Theater Audio/Video performance. New features such a “Deep Color,” higher color gamut, and high resolution, multi-channel audio formats like Dolby True HD and DTS-HD Master Audio will make higher bandwidth demands than ever before.

These cables have been designed to meet the high bandwidth performance standards set by HDMI 1.3a. These cables are constructed to the highest quality with full triple layer shielding from end to end, strong, solid wire welds and the highest quality materials including high purity copper, gold plated connectors and tin plated conduits.
