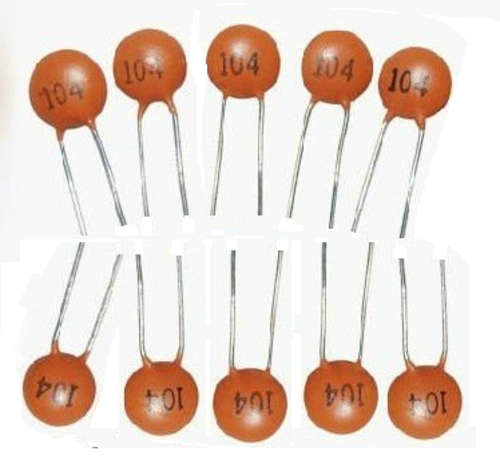

10 Pack of 100nF Ceramic Disc Capacitors

10 PACK OF 100nF CERAMIC DISC CAPACITORS

Product information

These capacitors are used for Bypass, Coupling and Frequency discriminating circuits where Q and Stability of capacitor characteristics are not of major importance. They feature stabile capacitance values at varying temperatures and low loss at a wide range of frequencies. They are commonly used to supress DC motor RF interference.

Specifications
Capacitor Type: Y5V
Rated working voltage: 50VDC
Test Voltage: 250% of rated voltage.
Operating Temperature range: -25°C ~ +85°C (Y5E/Y5P/Y5R/Y5U/Y5V)
Capacitance: Within the specified tolerance at 25°C, 1 KHz, 1±0.2Vrms
Insulation resistance (IR) at 25°C: 10,000MΩ or 200MΩ/uF whichever is smaller.
Dissipation factor (tan d): At 25°C, 1 KHz, 1±0.2Vrms. DF < 2.5% for (Y5E/Y5P/Y5R/Y5U/Z5U)

Package Includes
10 x 100nF 50VDC Ceramic Disc Capacitors
