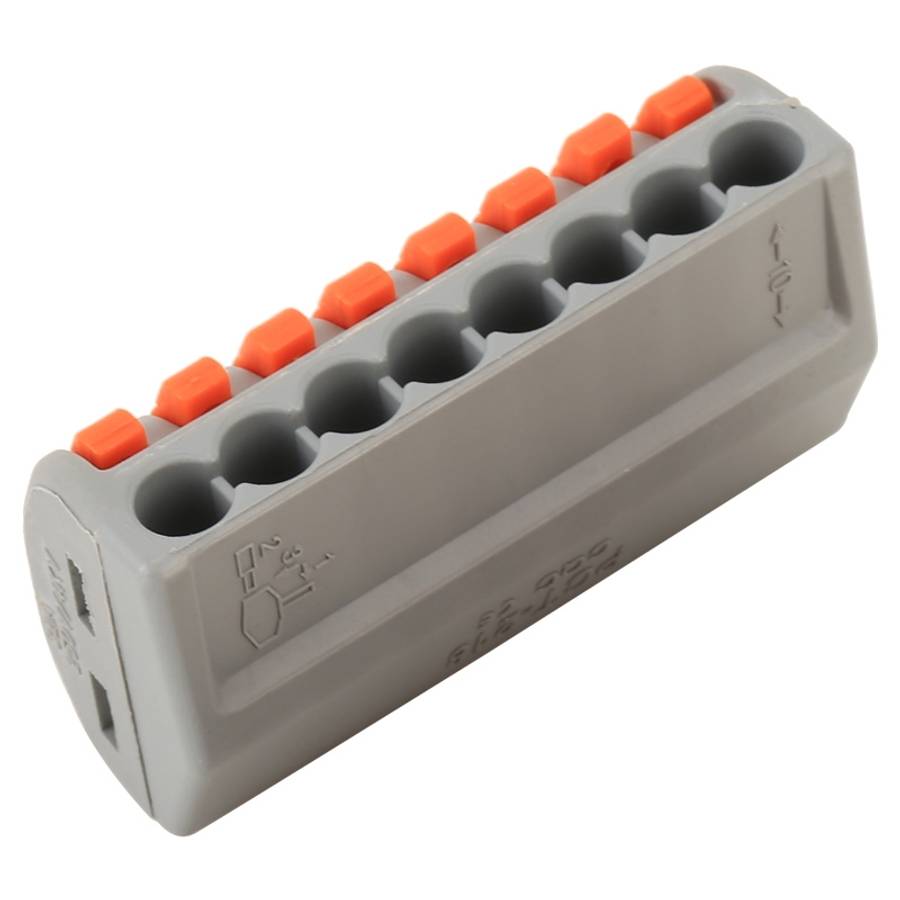

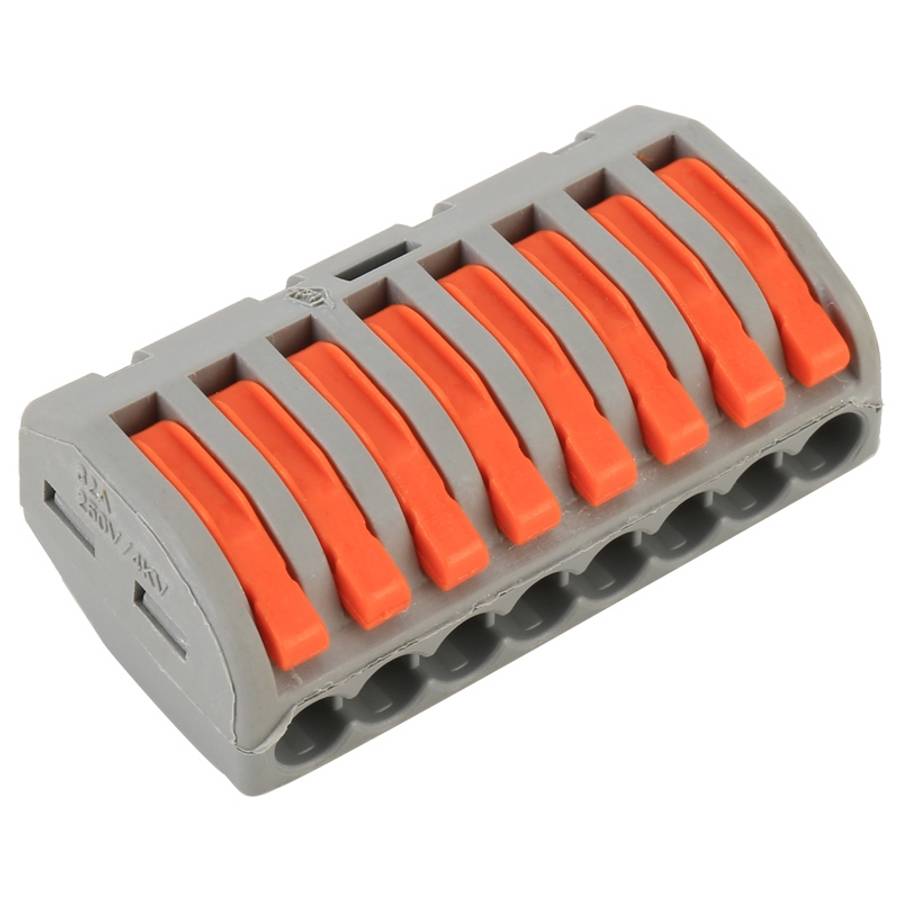

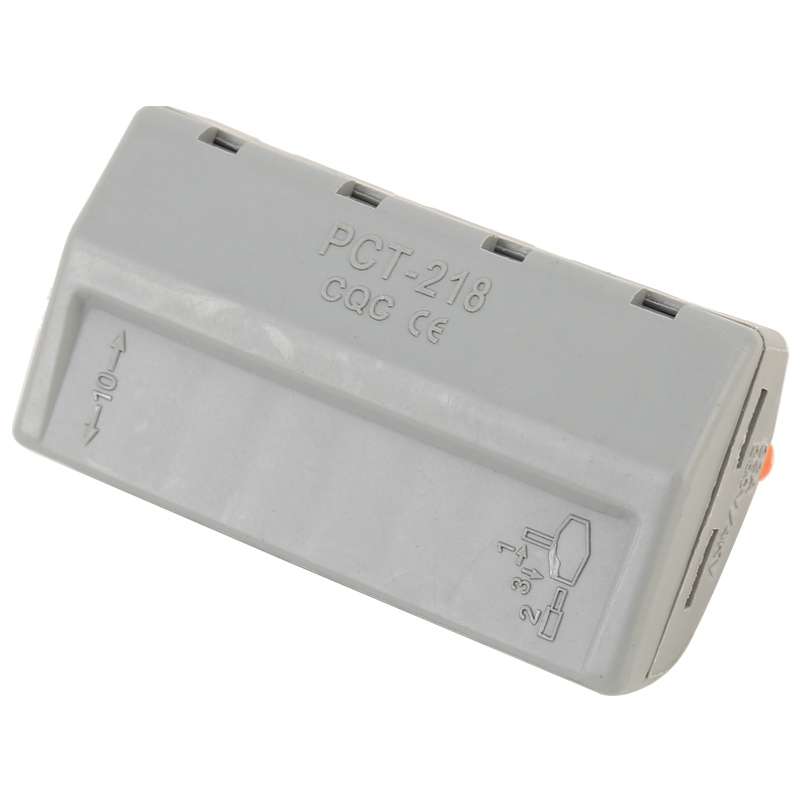

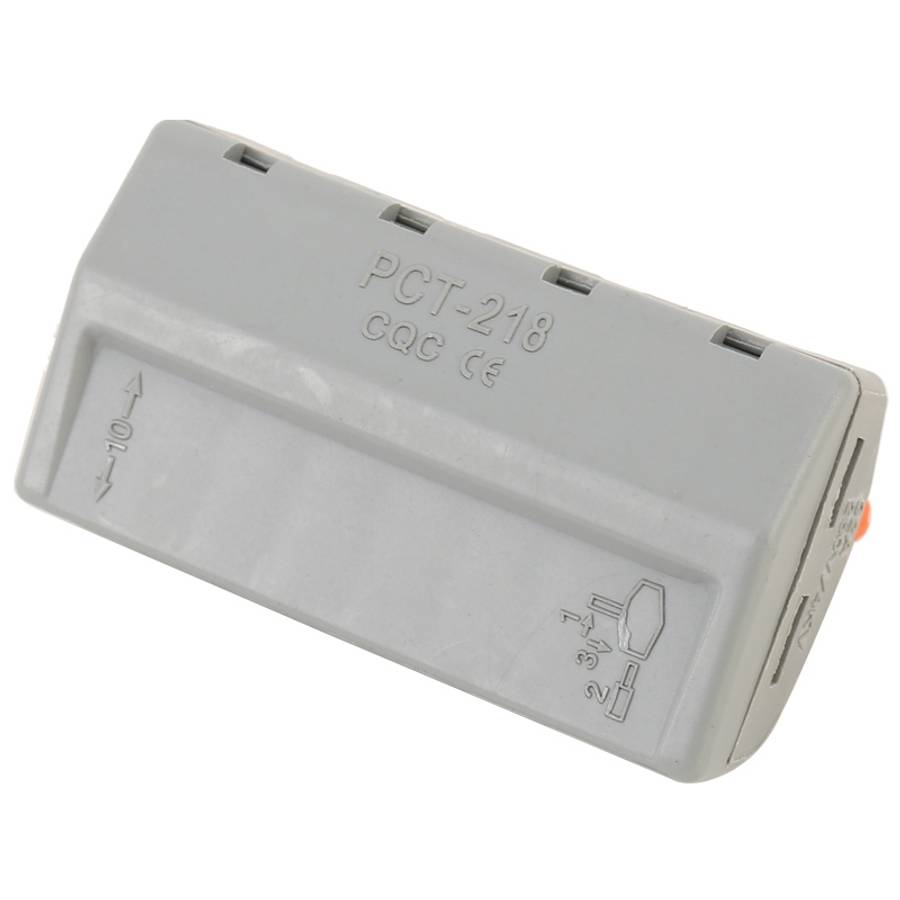

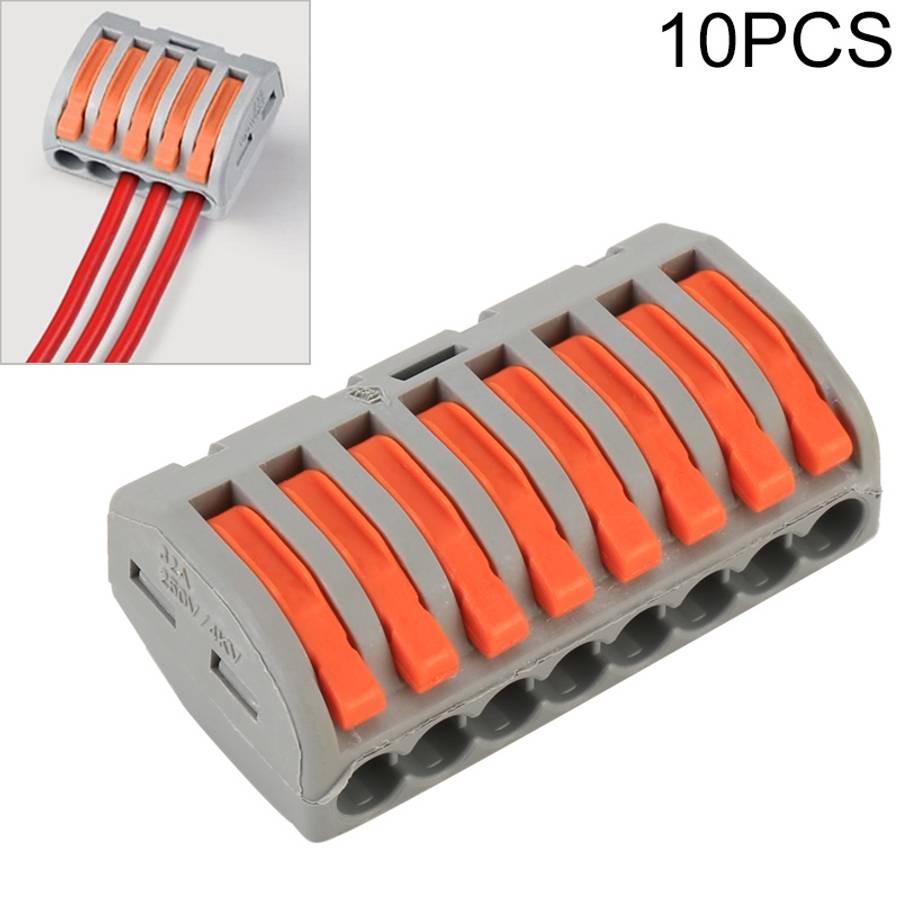

10 PCS 8 Port PCT Series Architectural Wiring Connector LED Lamp Conductor Distributor Junction Box

1. Material: PA66
2. Rated voltage: 250V
3. Rated current: 20A
4. Stripping length: 12-13 mm
5. Stripping length range: 0.47 in
6. No danger of wire loosening and tape embrittlement, transparent and safe
7. With test holes, no need to remove the tape to measure the voltage
8. Direct insertion, wrong connection can be pulled out, repeated connection

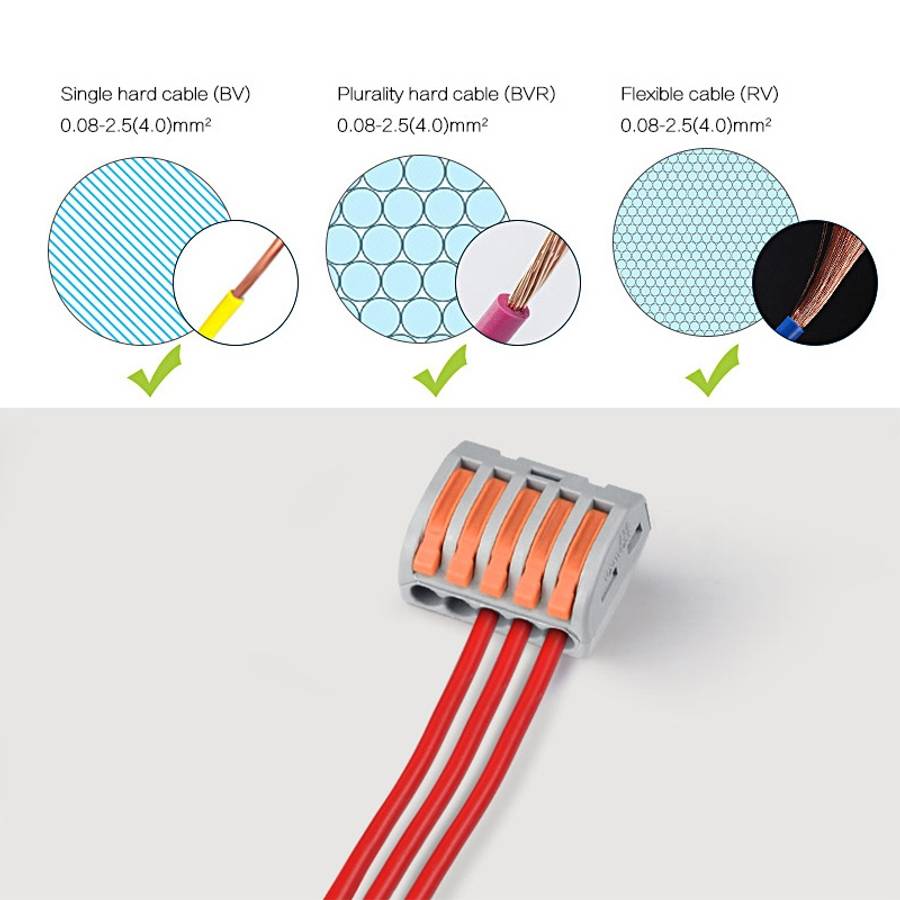

9. Each contact shrapnel is independent, different wire diameter conductors are also available, safe short connection.
10. Permanent temperature resistance 105 Celsius degree, non-brittle
11. Maximum connectable 4mm/32A/400V

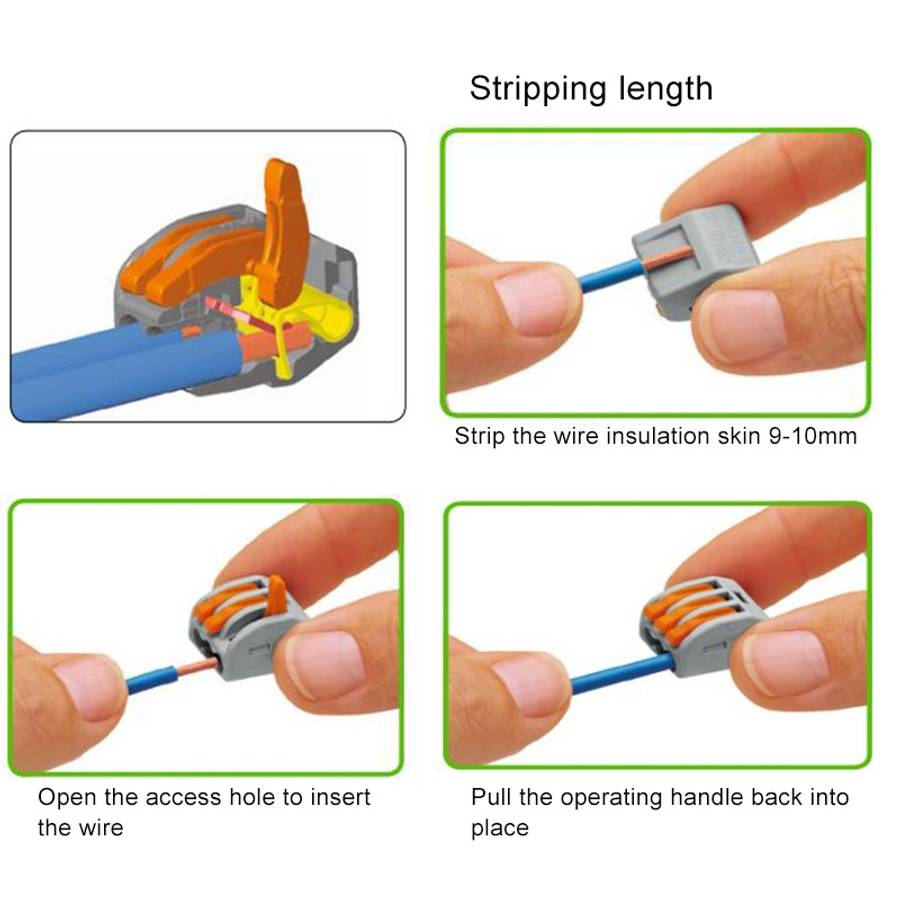

Connection method:
1. Stripping insulating skin of single core and strand 9-11 mm

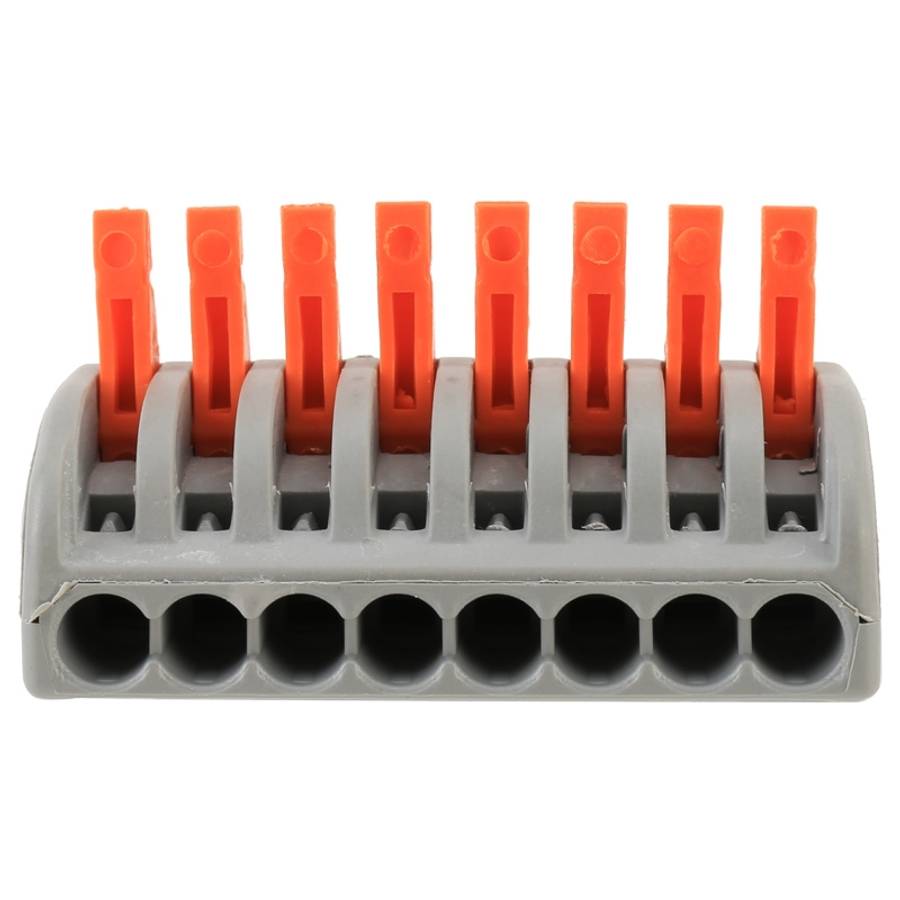

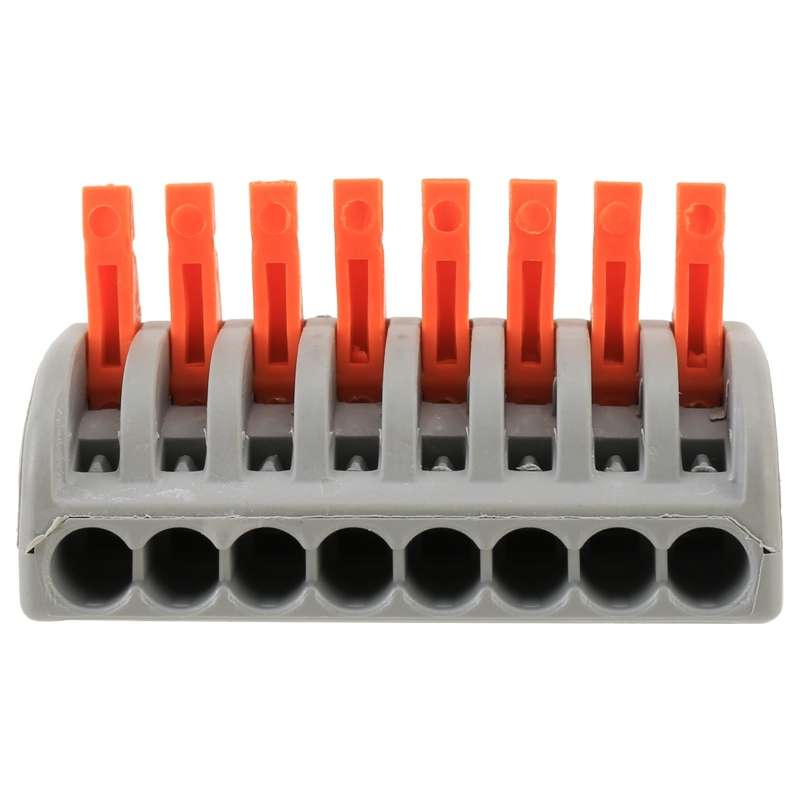

2. Move the orange pressure bar up with your thumb and open the spring box.
3. Insert the wire through the spring box opening.
4. Press down the orange pressure bar and the wire will be clamped automatically.

Wire removal method:
1. The wire can be removed by moving the orange pressure bar upward with the thumb.



EPS2661
