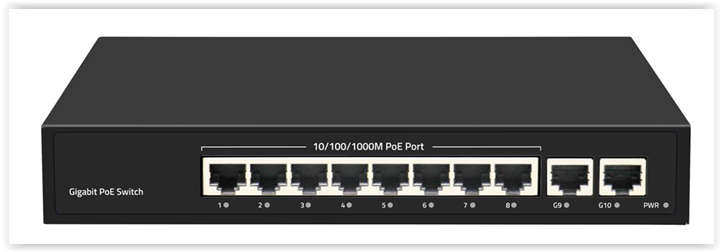

10 Port Gigabit PoE Network Switch

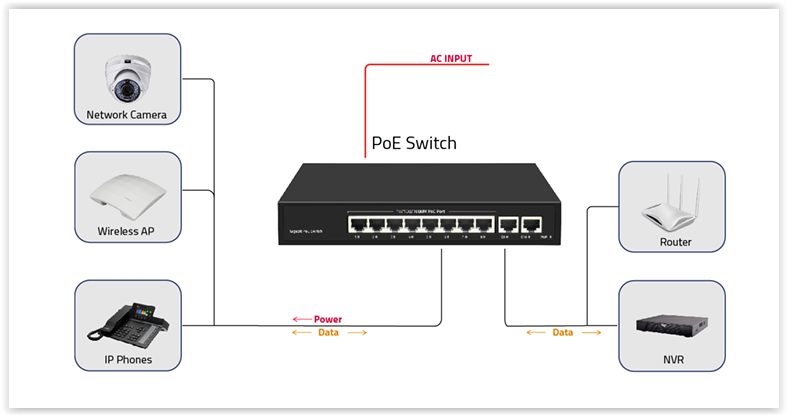

10-Ports 10/100/1000M PoE Switch with 8*10/100/1000M PoE Ports + 2*1000M RJ45 Port, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100/1000M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data. PoE is Power over Ethernet, which refers to the transmission of data signals to some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.), but also provides DC power for this device. Technology, these devices that receive DC power are called powered devices. With simple and convenient installation and maintenance methods and rich business features, it helps users to build a safe and reliable high-performance network. It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.

8*10/100/1000M PoE Ports +2*1000M RJ45 Port ; Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab standards; Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w); Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard; Support port auto flip (Auto MDI/MDIX); Exchange mechanism using store-and-forward; All ports support wire-speed switching; Automatically supplied to adaptive devices; Panel indicator monitoring status and help failure analysis.
