Name: 10 Port (POE) Power over Ethernet Fast Network Switch with 2x Uplink Ports
SKU: 353274
Price: 837.00 ZAR
Availability: InStock

10 Port (POE) Power over Ethernet Fast Network Switch with 2x Uplink Ports

New

5 available

120 Watt 10 Port (POE) Power over Ethernet Fast Network Switch with 2x Uplink Ports

Only 5 left – grab it before it’s gone!

R837.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

HDCabling4349

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

353274

Bob Shop ID

649627685

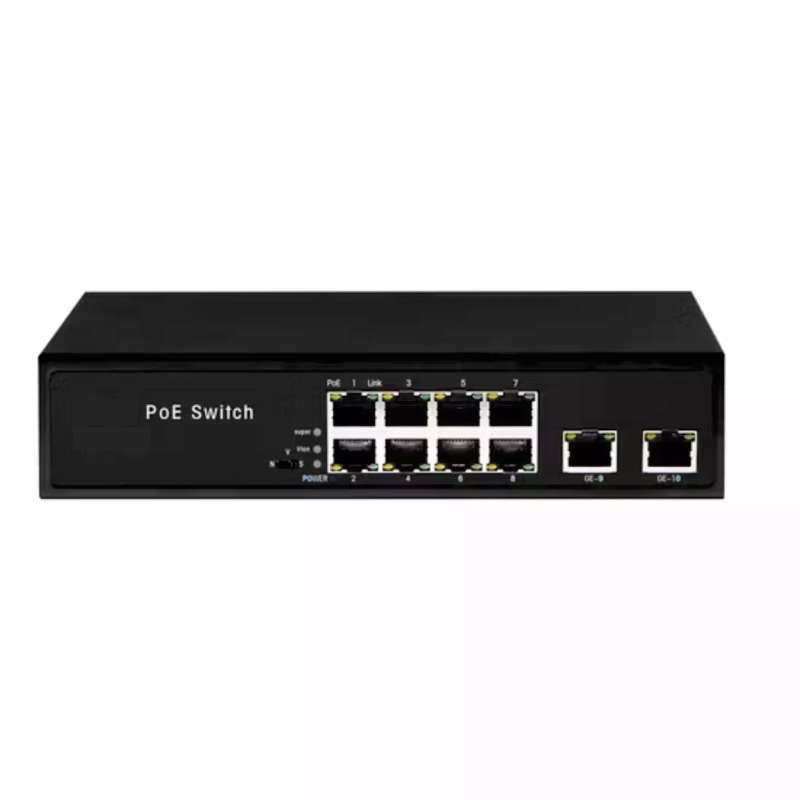

10 Port (POE) Power over Ethernet Fast Network Switch with 2x Uplink Ports

This switch is an unmanaged 10 port, 100Mb/s Fast Network Switch with 8 PoE Ports and 2x 1Gbps or 100Mbps Uplink Ports depending on your preference. Each of these PoE ports are IEEE 802.3af/at Compliant and will auto detect and identify whether the connected device is compatible and requires power. Total Power across all ports is ±15.4W (IEEE802.3af) or 30W (IEEE802.3at).

It is ideal for small networks that have a number of 802.3af/at compatible Access Points, IP Phones or IP cameras.

How to connect POE Switches Instructional Video Setup and Example

?v=FgSXlS2D1JY

What is POE / Power over Network and How to use it Video

?v=X_Euf5IuKaQ

Sample Installation Diagram:

Specifications:

Product Name	10-Ports PoE Switch with 8 PoE Ports and 2 Uplink
Connector Type	10x 10/100M copper cable RJ45 ports(8 PoE ports+2 Uplink)
Network Media	10BASE-T: Cat3,4,5 UTP(100 meter) 100BASE-TX: Cat5 or more UTP (100 meter)
Bandwidth	2Gbps (non-blocking)
Address Database Size	1K
Forwarding Mode	Store-And-Forward
Network Protocols	IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af
LED Display	System: power supply; Every Port: connecting, PoE working status
Power Supply	Power input: AC100-240V 50/60Hz
PoE Ports	Port 1-8 support POE
PoE Port Power	15.4W for each POE port
PoE Standard	IEEE 802.3af
Led indicator	Green: Network SW: On: VLAN, 100metersFlashing: VLAN, 250metersOff: VLAN Closed,100metersFlashing: VLAN Closed, 250meters
Working Environment	Operating Temperature: -20° ~ 50 ° C; Storage Temperature: -40 ° ~ 80 ° C; Operating Humidity: 10% ~ 90%, non-condensing
Certification	CE Mark ,commercial; CE/LVD EN60950, RoHS
Radiation	CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
Transmission Distance	Data transmission distance: 100m, 250m( when on 10M data rate with Cat6.)
