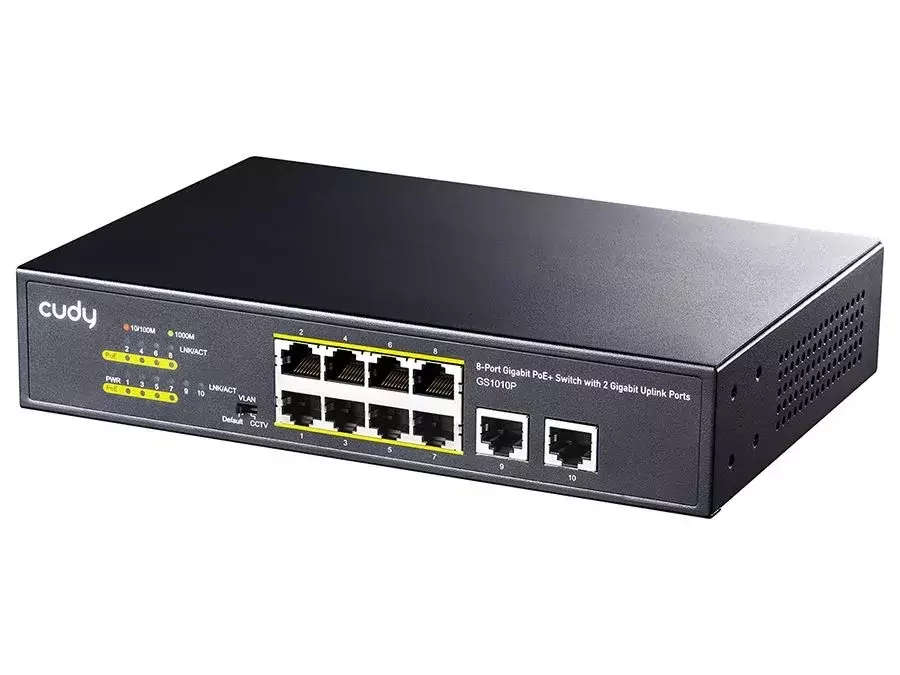

10 Port Power over Network Gigabit POE Network Switch for IP Cameras / POE Access Points (8 x POE...

10 Port Power over Network Gigabit POE Network Switch for IP Cameras / POE Access Points (8 x POE gig + 2 x 1 gig uplink) Built-in 52V 2.88Amp PSU, 16W per Port Max, IEEE 802.3af/at  Cudy GS1010P

This switch is an unmanaged 10 port, 1Gbps Gigabit Network Switch with 8 PoE Ports. Each of these PoE ports are IEEE 802.3af/at Compliant and will auto detect and identify whether the connected device is compatible and requires power. The Switch has a built-in 52V, 2.88A Power supply, no external power supply required. Total Power across all ports is 150 Watt, ±16W per POE Port Max.

It is ideal for small networks that have a number of 802.3af/at compatible Access Points, IP Phones or IP cameras.

Sample Installation Diagram:

How to connect POE Switches Instructional Video Setup and Example

?v=FgSXlS2D1JY

What is POE / Power over Ethernet and How to use it Video

?v=X_Euf5IuKaQ

Specifications:
